Regulator pack "N3 Eco" R6 diaphragm - TECLINE

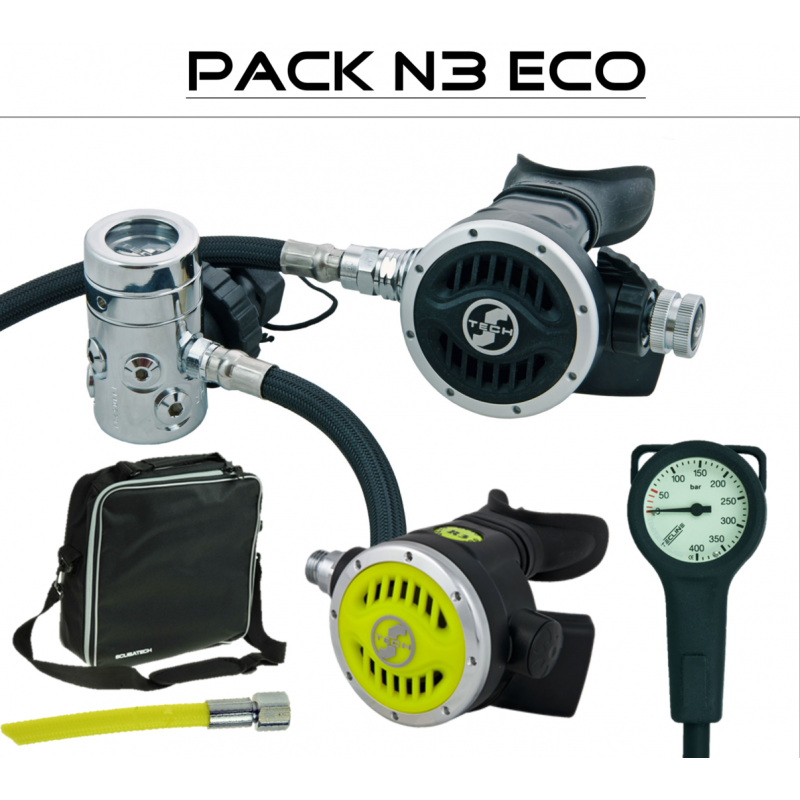

TECLINE "level 3 Eco" regulator pack with 1x regulator R6 diaphragm + 1x 2nd stage octopus R6 TEC balanced + 1x 2nd stage octopus R3 + console pressure gauge + storage bag.
TECLINE offers you a "Level 3 Eco" regulator pack with a diaphragm balanced regulator 1st stage R6 TECLINE and its 2nd stage R6 TEC TECLINE with 70cm hose, an octopus R3 and yellow 90cm hose, a pressure gauge 0/400bar and a storage bag.
The R6 TECLINE regulator is a compensated diaphragm regulator with cold water kit and rotating turret. It has excellent performance with a flow rate of 3823L / min and can be used in all conditions even in cold water with its specially adapted kit. For autonomous dives, the pack includes a second stage TECLINE octopus R3.
Finally, the console consists of a set depth gauge and manometer MINI - 0-400bar
- 1st stage R6 diaphragm
- 2nd floor R5 TEC balanced
- Octopus R3 TEC
- Flexible 0.70 m - black
- Flexible 0,90 m - yellow
- 400bar pressure gauge with standard HP hose 0,8 m
- Square bag
TECHNICAL CHARACTERISTICS :
1st stage regulator TECLINE R6 with compensated diaphragm:
- Outputs: 4 MP and 2 HP
- Maximum working pressure: 300 bar,
- Maximum flow at 20 Mpa pressure: 3823 L / min,
- Intermediate pressure: 9.5 bar,
- Weight: 730 g
2nd stage R5 TEC TECLINE balanced
- Venturi adjustment and hardness adjustment
- Second stage not compensated
- Maximum flow rate at a pressure of 20 MPa: 850 l / min
- Flexible MP Miflex 75cm, black
- Weight: 210 g
Octopus R3 TEC:
- Regulator of uncompensated type.
- For octopus use
Meets the requirements of EN 250
- 2 years warranty for the first owner.
