TECLINE Sidemount scuba regulator pack R2-TEC1 TECLINE

Sidemount dive regulator pack R2-TEC1 TECLINE ref 10005-4

The sidemount dive requires suitable dive regulators.

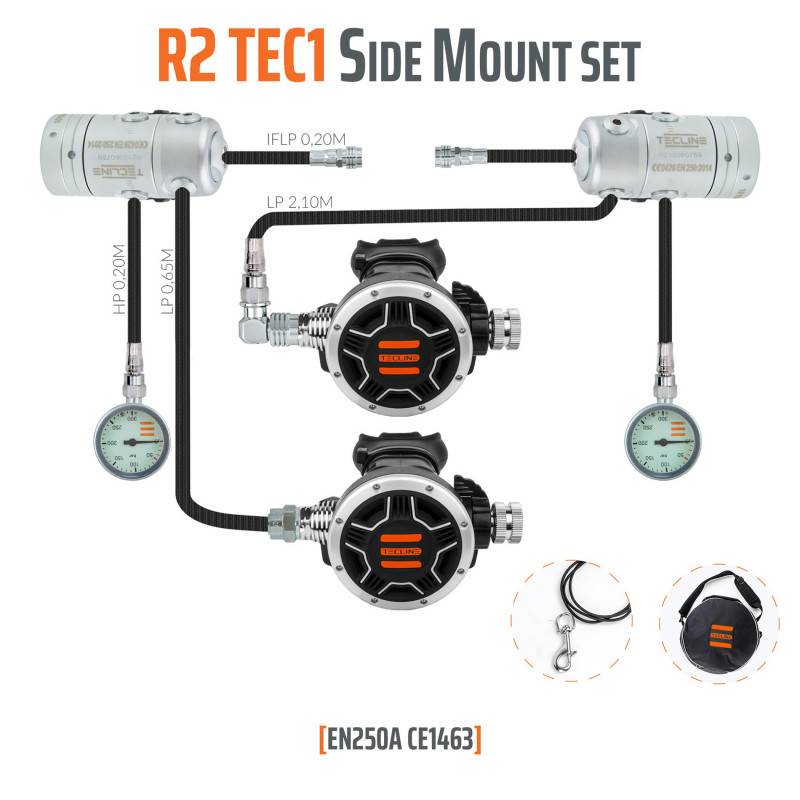

The "SIDEMOUNT" regulator pack from TECLINE R2-TEC1 includes 2x first stage R2 membrane and 2x second stage TEC1 with flexible 63cm and 210cm.

It comes with two 0-300bar dive gauges with black Proflex hoses.

TECLINE actively promotes sidemount diving and this regulator pack configuration has been specially designed for this activity.

The regulators integrated in this pack are diaphragm, mounted with an anti-icing kit. The second floor is compensated and has a venturi adjustment and sensitivity.

Regulators R2 and TEC1 are designed for Nitrox uses up to 40%

PACK CONTENT:

• 2 x 1st stage R2 ICE membrane with 5th port option
• 2x 2nd floor R5 TEC with flexible 63cm and 210cm Proflex black

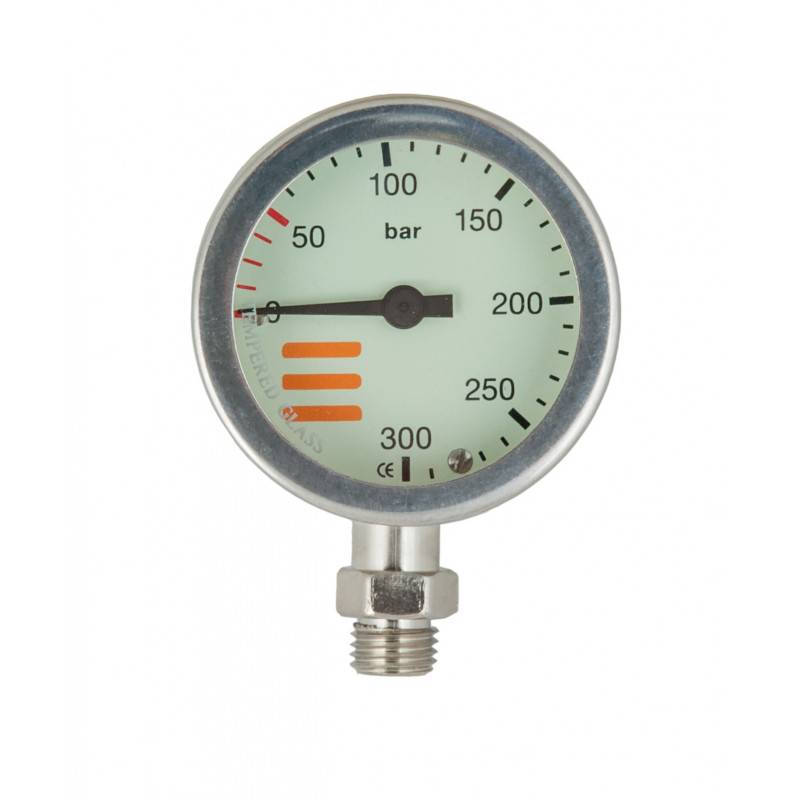

• 2x Mini pressure gauges 300 bar with flexible 20cm
• 1x 90 ° elbow
• 1x 76mm stainless steel carabiner
• Round bag (TecLine)

TECHNICAL CHARACTERISTICS

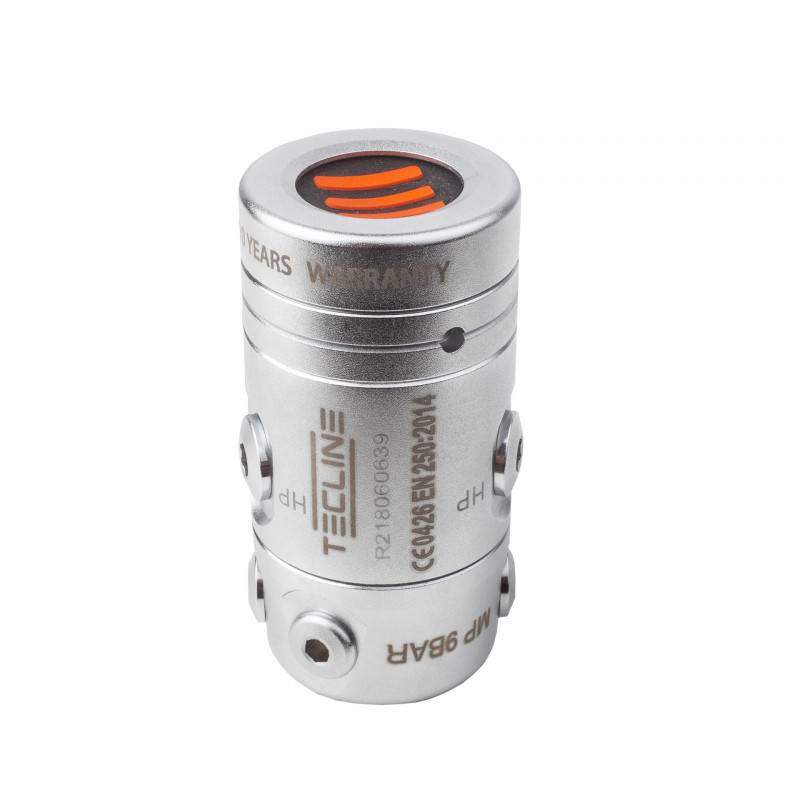

TECLINE R2 ICE MONO regulator, with compensated diaphragm:

1st stage R2 ICE MONO with membrane

• Outputs: 4 MP and 2 HP,
• Compensated diaphragm with cold water kit,
• Max. 300bar,
• Operating pressure 9 bar,
• Maximum flow at a pressure of 20 MPa: 850 L / min,
• Weight 790 g
• Meets the requirements of EN 250; CE1463 certified

2nd stage balanced R5 TEC

• 2nd balanced floor
• Venturi and hardness adjustment with inspiration,
• Respiratory resistance from 0.983 to 1.004 J / l
• Flow rate: 950l / min
• Weight 280g
• Meets the requirements of EN 250; CE1463 certified.

GUARANTEE:

10 years warranty for the first person in charge of the reserve of an annual maintenance by an authorized TECLINE center.
