Regulator 1st stage R5 TEC - TECLINE

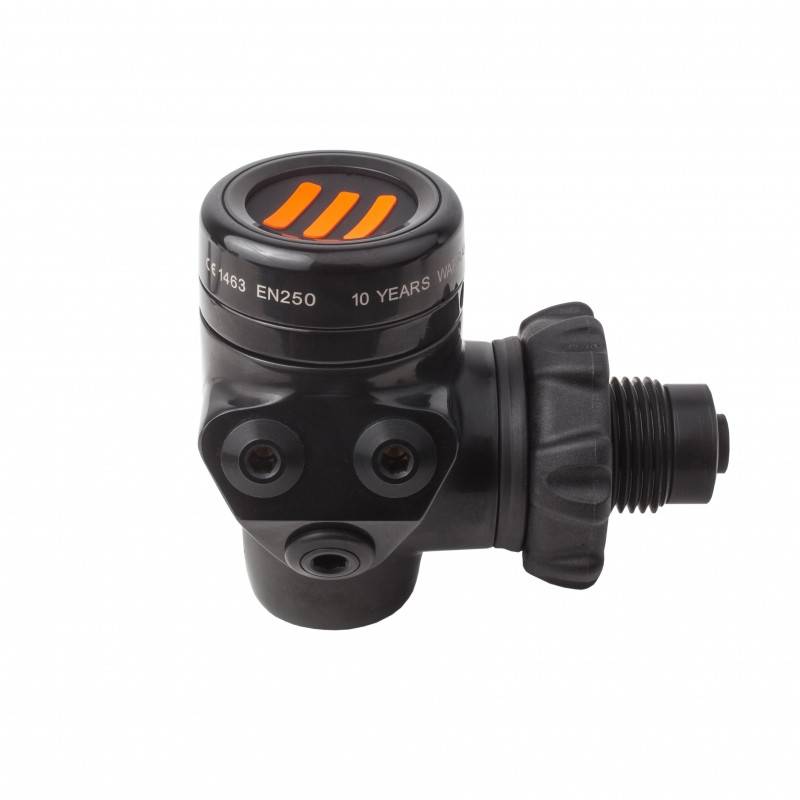

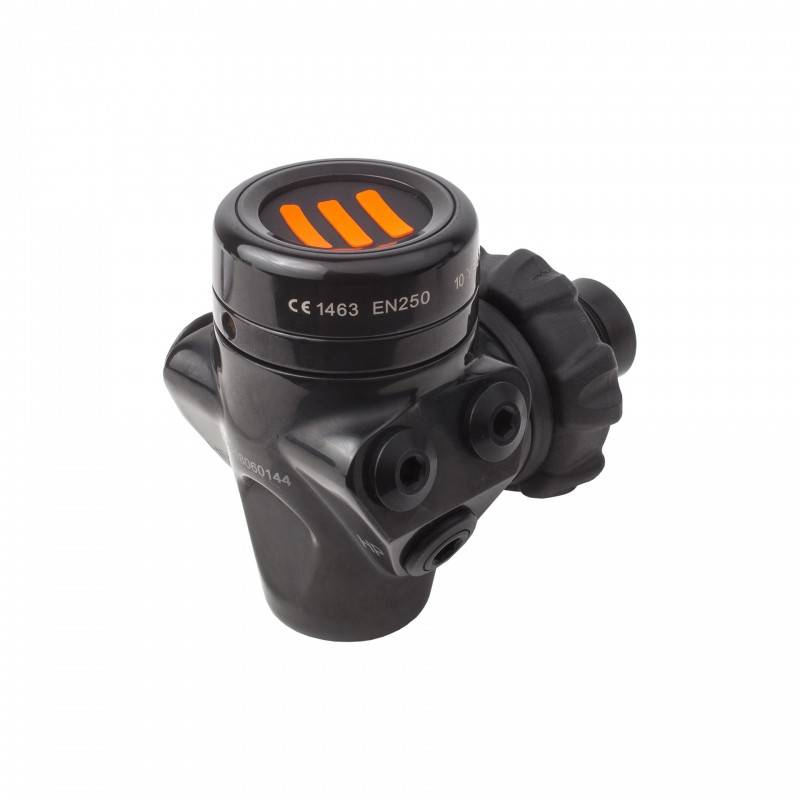

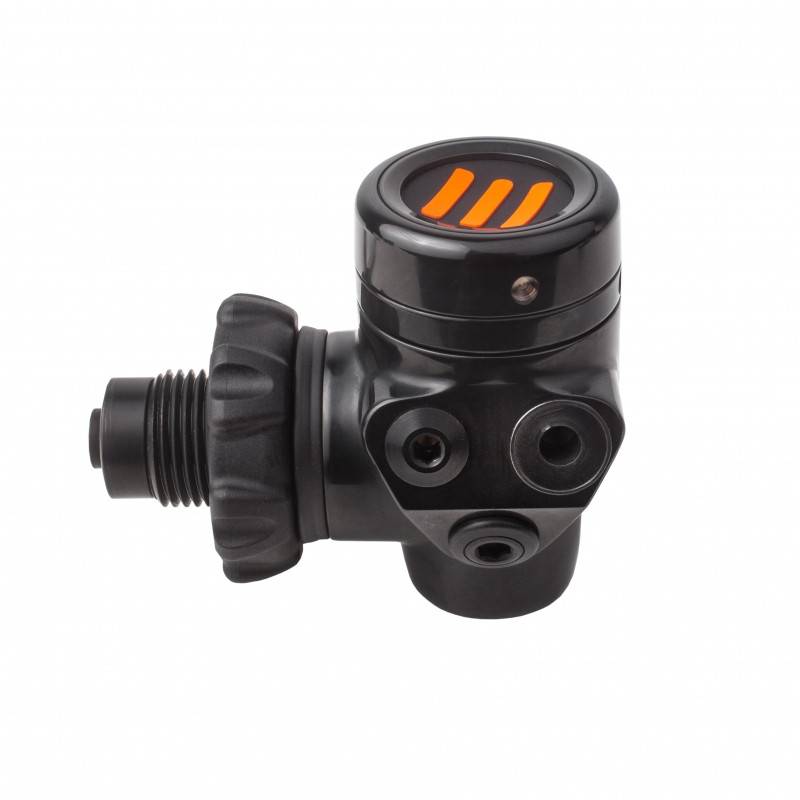

The TECLINE R5 TEC2 1st stage regulator

The TECLINE R5 TEC BLACK 1st stage regulator is a compensated diaphragm regulator with cold water kit, especially suitable for cold water dives and severe conditions.

It was tested in the laboratory at an air flow rate of 62 l / min on the second stage without icing.

It has 4x MP outputs and 2 HP outputs oriented on the 1st floor. Connection on block in DIN 300bar.

TECHNICAL CHARACTERISTICS OF THE RETAINER 1st stage R5 TEC BLACK:

1st stage R5 TEC diaphragm

• Outputs: 4 MP and 2 HP
• Orientation of the side BP and HP outputs
• Compensated diaphragm with cold water kit
• Black Finish
• Maximum working pressure: 300bar,
• Operating pressure 9 bar,
• Maximum flow rate at a pressure of 20 MPa: 3823 L / min,
• Weight 790 g
• Meets the requirements of EN 250; CE1463 certified

WARRANTY:

10 years guarantee for the first owner subject to annual maintenance by an authorized TECLINE center.
