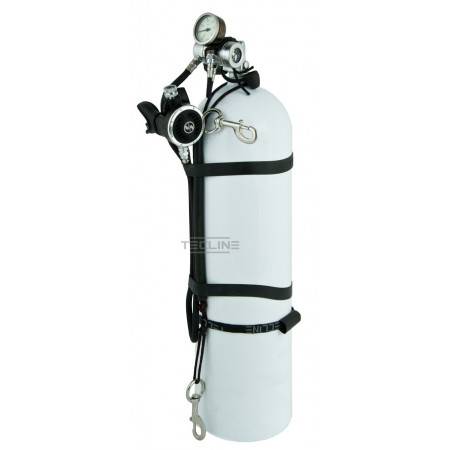

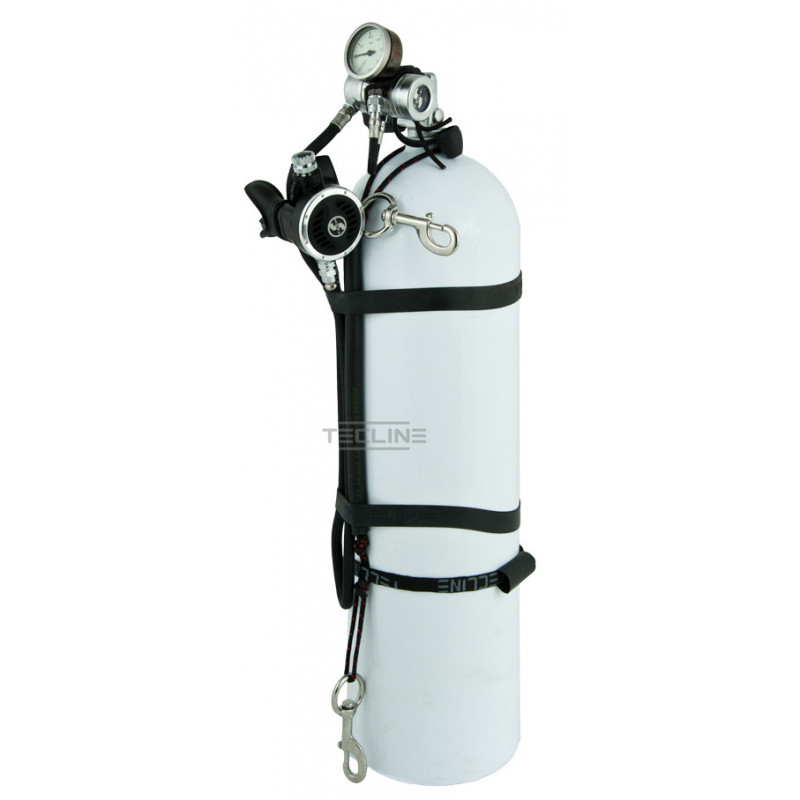

Déco regulator R2 TEC + pressure gauge TECLINE

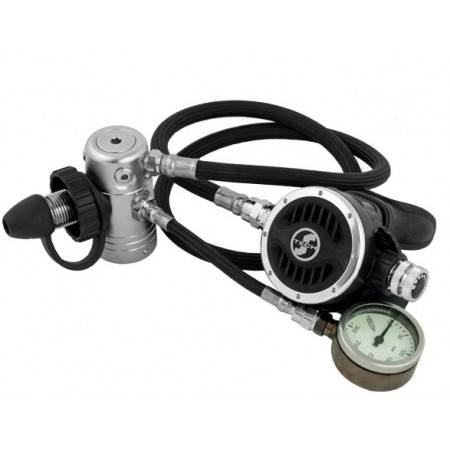

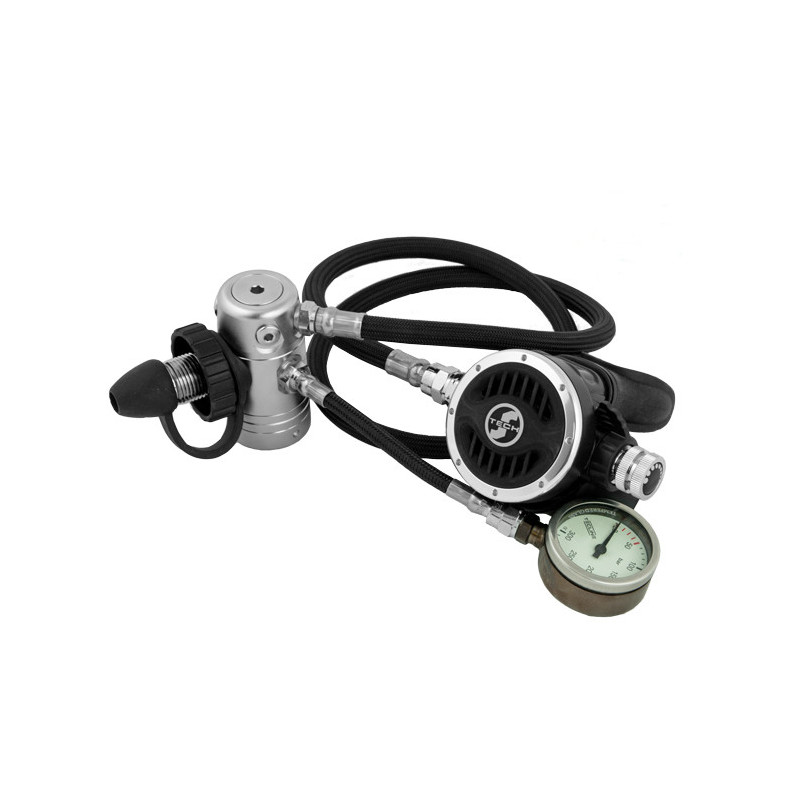

The TECLINE SCUBATECH R2 TEC decompression regulator kit includes the 1st stage R2 ICE with compensated diaphragm and cold kit, threaded in DIN 5/8. The second stage R5 TEC has venturi adjustment and inspiration hardness. The regulator is specially prepared for Nitrox use up to 40%. It also has a 52mm diameter oxygen pressure gauge, 0-300bar graduated.

The MP and HP outputs are fixed.

The R2 TEC regulator is 40% Oxygen compatible

TECHNICAL CHARACTERISTICS OF THE REGULATOR R2 TEC

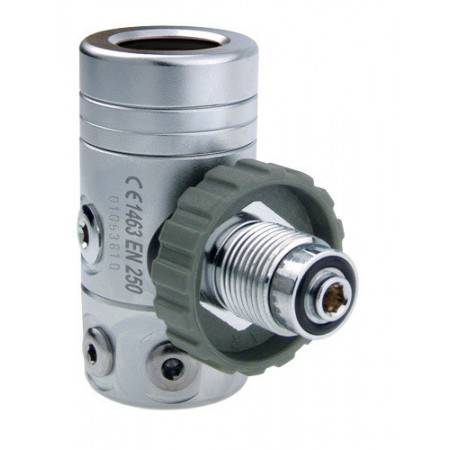

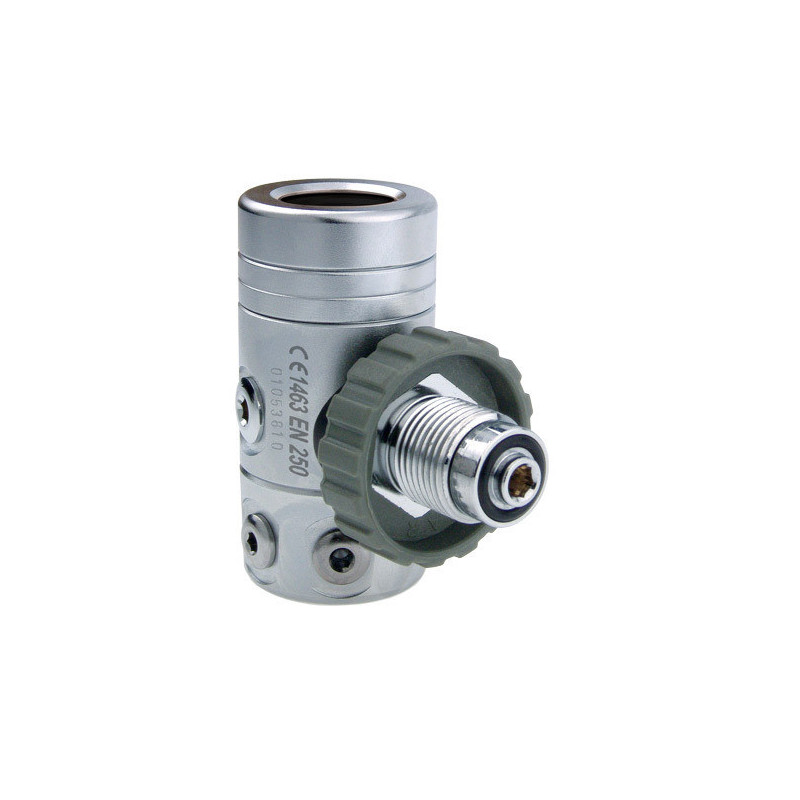

1st stage R2 TEC with diaphragm

• Compensated diaphragm with cold water kit
• Outputs: 4 MP and 2 HP,
• Max. 300bar
• Operating pressure 9 bar
• Maximum flow rate at a pressure of 20 MPa: 3823 L / min,
• Weight 790 g
• Meets the requirements of EN 250; CE1463 certified

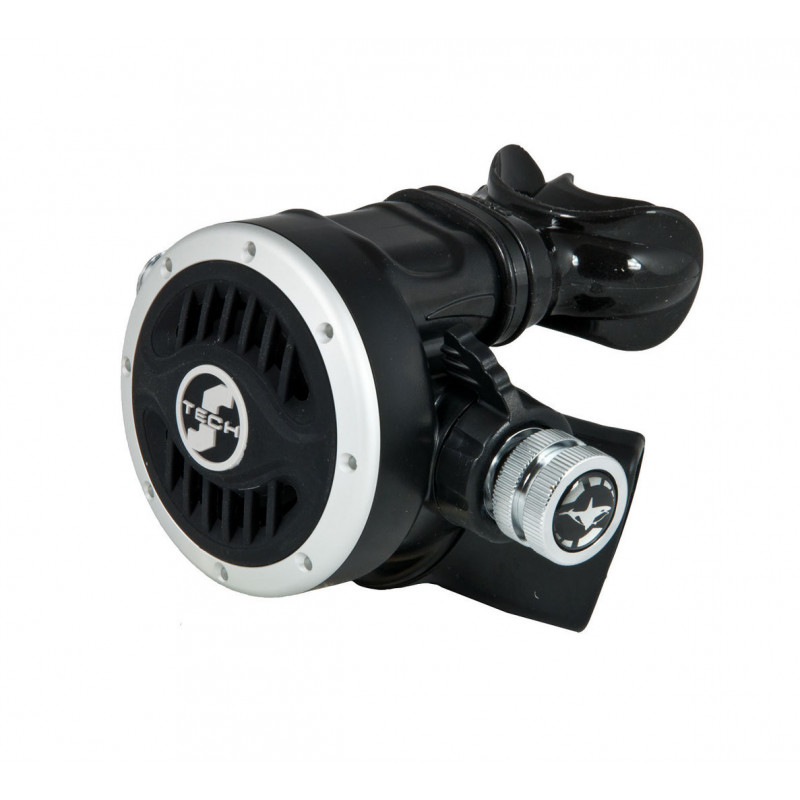

2nd stage R5 TEC

• 2nd stage compensated
• Cold water kit
• Venturi adjustment and inspiration hardness,
• Respiratory Resistance from 0.983 to 1.004 J / L
• Flow rate at a pressure of 20MPa: 950L / min
• Weight 280g
• Meets the requirements of EN 250; certified CE1463.

Oxygen pressure gauge

• Graduation: 0-300bar
• Diameter: 53mm
• Flexible HP: 15cm

WARRANTY:

10 years guarantee for the first owner subject to annual maintenance by an authorized TECLINE center.
