Color code wireless pressure transmitter Ratio

Transmitter
of
pressure transmitter
transmitter for
dive computers
Ratio
iDive and iX3M

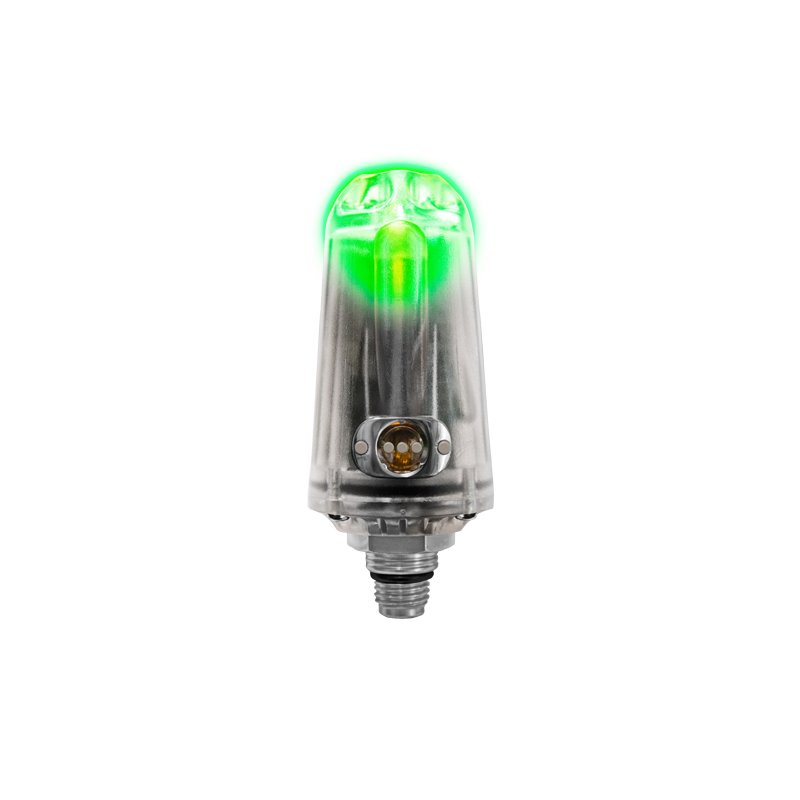

This wireless pressure transmitter for Ratio iDive and iX3M computers is a major innovation in the field of wireless transmission of diving information.

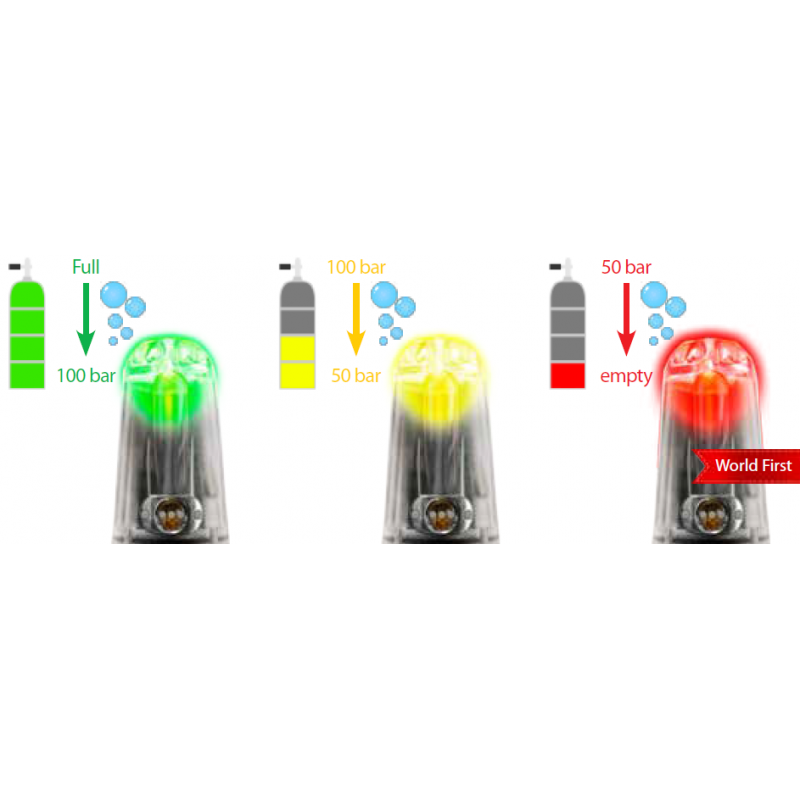

This wireless transmitter provides compatible Ratio computers with information on the pressure measurement in the diver's tank. But above all, it features an LED that informs the diver of the pressure level remaining in his tank:

• Green: up to 100bar
• Yellow: from 100bar to 50bar
• Red: below 50bar

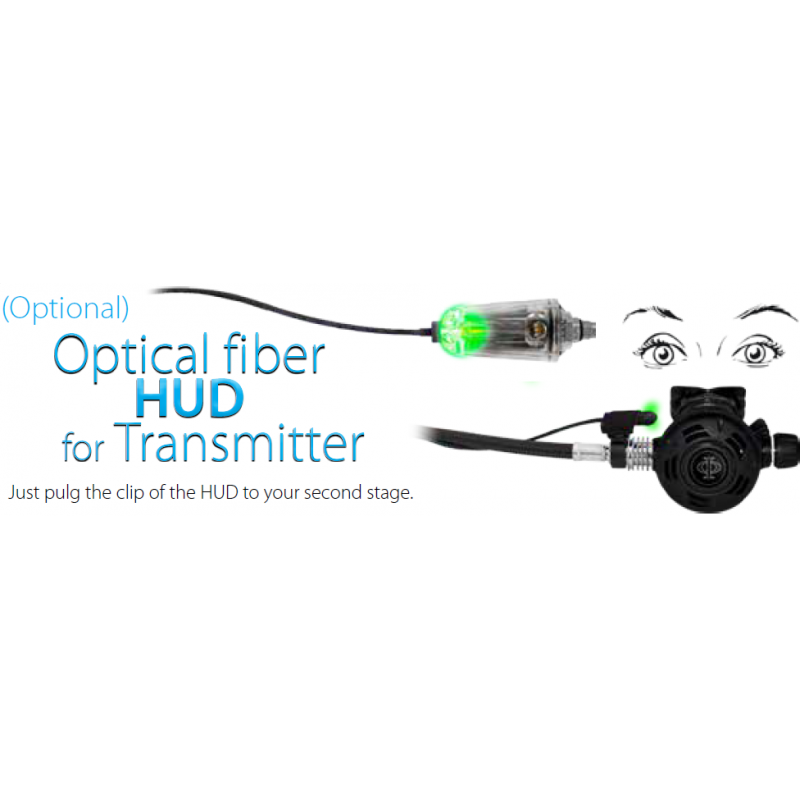

This is visual information that can be transmitted to the diver's eye via an optional optical fiber attached to the regulator hose.

The transmitter is powered by a lithium battery that can be recharged using the USB cable supplied with the computer.

It is compatible with Ratio 2017 computers:

• iDive Easy Sport, Deep Sport, Tech+Sport
• iDive Easy Avantgarde, Deep Avantgarde, Tech+ Avantgarde
• iX3M Pro Easy, iX3M Pro DEEP, iX3M Pro Tech+
• iX3M Pro GPS Easy, iX3M Pro GPS Deep, iX3M Pro GPS Tech+, iX3M Pro GPS Reb

Technical specifications :

• 3/8-24 medium-pressure thread (MP regulator outlet)
• Illuminated pressure indication: green/yellow/red (to 100bar/from 100bar to 50bar/below 50bar)
• Battery: rechargeable lithium
• Autonomy: approx. 100h of diving.
• Maximum depth of use :
• Maximum pressure readable by transmitter: 250bar
• Maximum pressure acceptable by transmitter: 300bar

Product contents :

• 1x Ratio wireless transmitter
