Ratio IX3M2 DEEP promo pack with pressure transmitter

RATIO COMPUTERS

Ratio IX3M2 DEEP promo pack with pressure transmitter

Name: Ratio IX3M2 DEEP promo pack with pressure transmitter
Brand: RATIO COMPUTERS
Price: 809.99 EUR
Availability: InStock

€1,073.00

€809.99

Tax included

Price excluding tax / DOM-TOM €674.99

Get equipped at the best price thanks to the flash promotion on RATIO dive computers, designed and made in Italy. High-end computers, air and Nitrox compatible, designed for divers

This pack contains

Ratio IX3M 2 DEEP dive computer

€527.66

Color code wireless pressure transmitter Ratio

€263.45

RATIO Shell Box Carrying Case

€18.87

Shiment within 5 to 7 days

Shipping

Free Shipping From 89 € for France * * See conditions

Product return & exchange 14 days to change your mind

24/7 support 24/7 customer return guaranteed

100% secure payment By credit card, bank transfer, PayPal or check

Pack content

Diving computer RATIO IX3M 2 PRO

AIR, NITROX, TRIMIX (Normoxic), Freediving, Depth Gauge
3 gases (O2 18% to 99% and He 0% to 50%)
3 possible transmitters
Upgradeable to TECH+ (Trimix Hypoxic)
The largest IPS QVGA screen on the market
Designed and manufactured in Italy

Dive computer Ratio IX3M2 PRO, Air, Nitrox, Trimix Normoxic

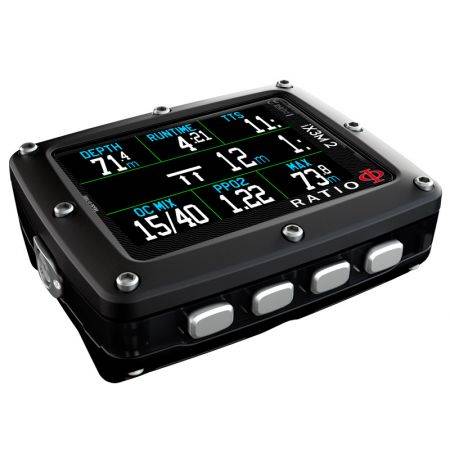

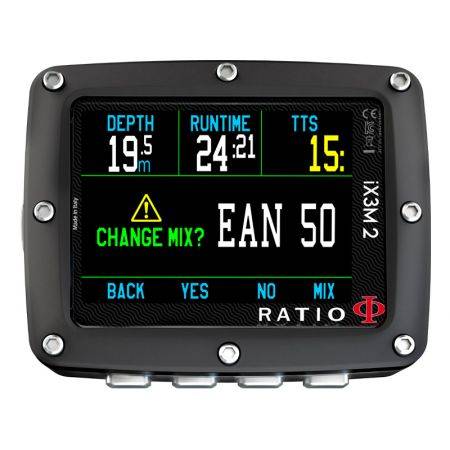

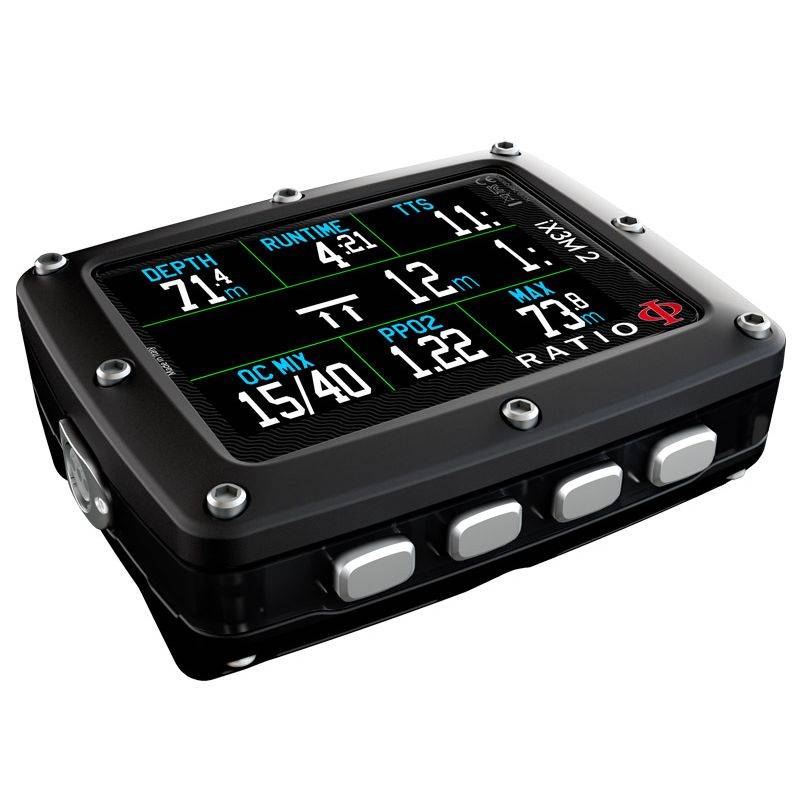

The brand new RATIO IX3M 2 DEEP dive computer is the evolution of the RATIO IX3M PRO DEEP dive computer.

The DEEP version of the IX3M2 is specifically designed for Normoxic Trimix diving.

It allows the integration of the management of 3 gases in diving O2 between 18% and 99% and Helium up to 50%.

The IX3M 2 DEEP is also compatible with Ratio pressure transmitters, which allow the pressure to be displayed in real time on 3 cylinders and 2 sidemount transmitters.

With the optional oxygen sensor, it can also measure Nitrox, which can be connected to it.

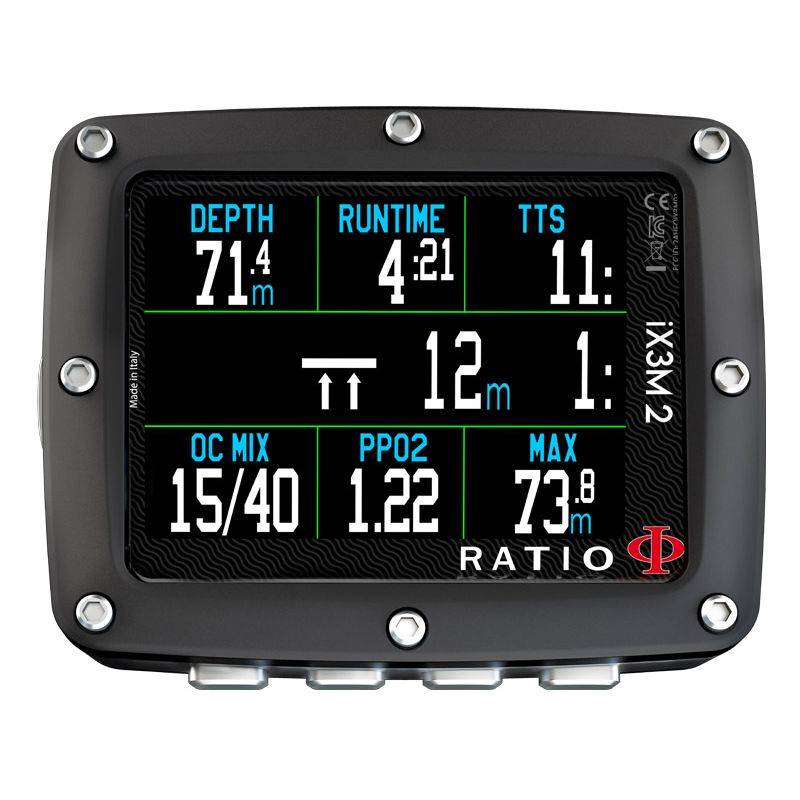

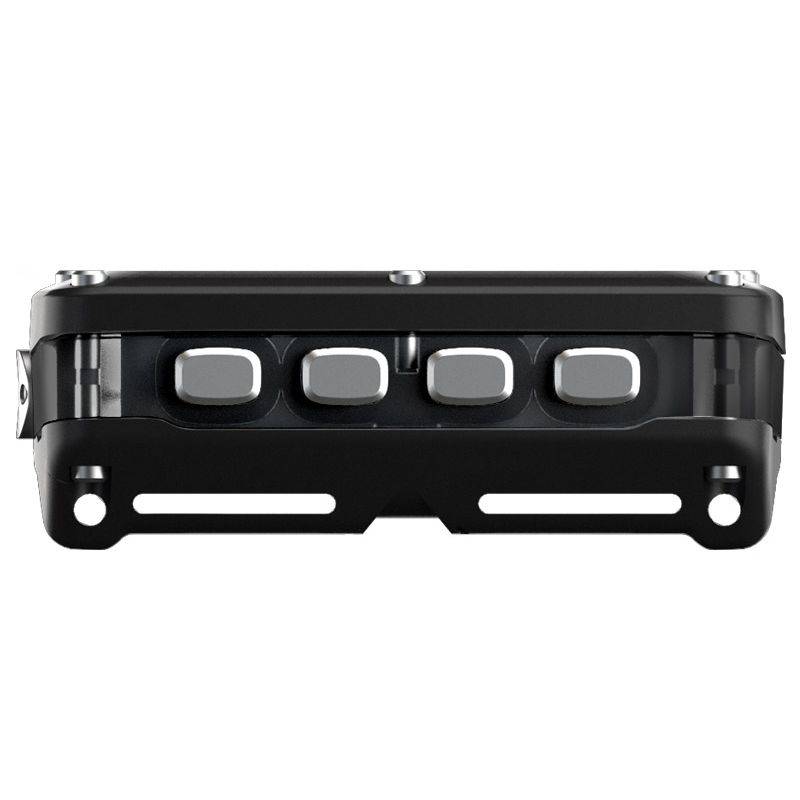

The strength of the IX3M2 lies in its larger and brighter screen with a 150° IPS QVGA viewing angle. Ratio has redesigned the use of the control buttons with a permanent display of the function of each button.

Many useful applications for the diver are integrated: compass (1° accuracy), pre-dive planner, decompression table during the dive etc...

As for the battery, it has a Li-ion battery rechargeable on a USB port with an autonomy of about 20 hours of diving.

The software interface provided by Ratio allows to download the firmware update and to download the dives.

Detailed characteristics of the IX3M 2 PRO dive computer:

Characteristics of the Ratio IX3M 2 PRO

Air/Nitrox/Normoxic Trimix/Apnea/Profondium
Mix diving: up to 3 mixtures
Decompression algorithm: Buhlmann with 12 possible adjustment levels

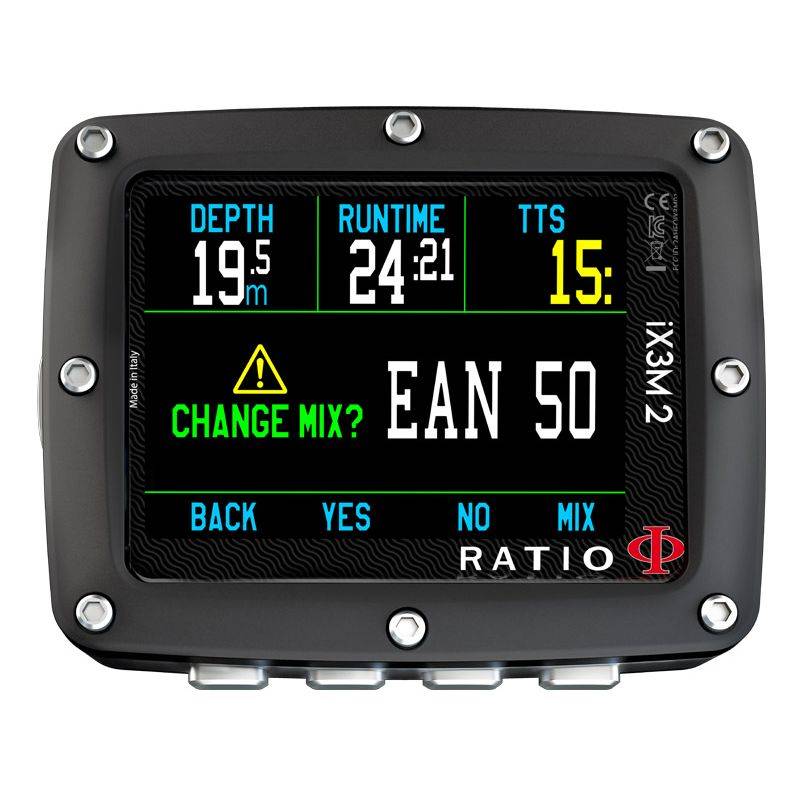

Gas change while diving: yes
CNS and OTU (Central Nervous System and Oxygen Tolerance Units)
PPO2: from 1.0 to 1.6
DEEP STOP algorithms: YES

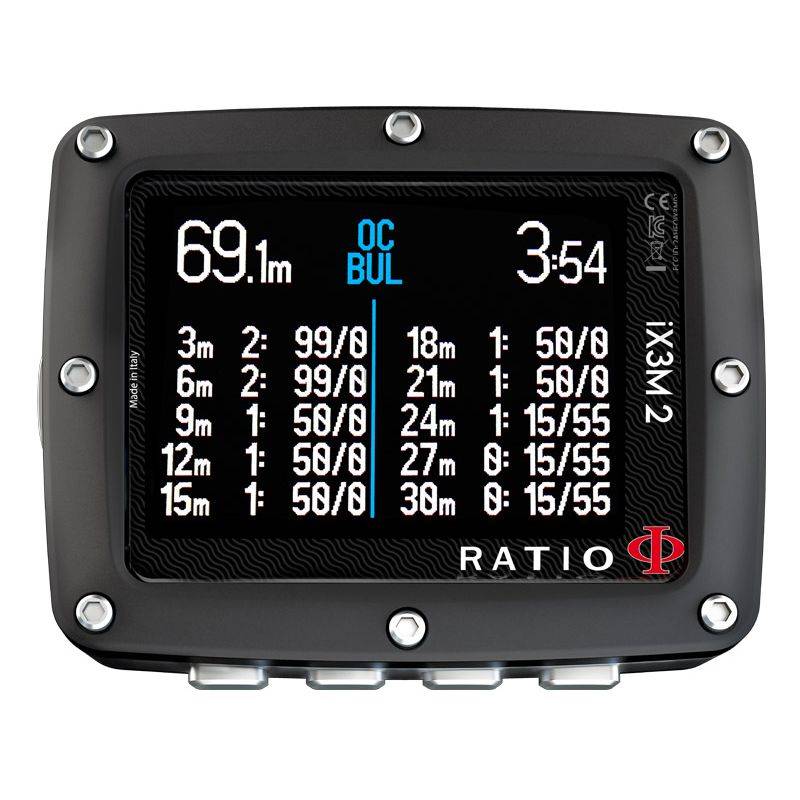

Complete decompression table : All decompression stop depths, times and mixes required. Updated in real time during the dive.
Alarm: yes: audible, visual and by vibration, even through the drysuit!
Rechargeable Lithium-ion battery: autonomy in diving: about 20 hours
USB and Bluetooth connection
Customizable color screen in Macrolon QVGA 2.8" diagonal and viewing angle greater than 150
Case made by plastic injection

Algorithms :

Decompression algorithms used: Buhlmann
Real time calculation of algorithms

Compass :

The best on the market, 3D, 1° accuracy
Angle up to 85° and numerical representation of the path to travel

Additional integrated functions :

Oximeter (with optional probe)
GAS BLender
Thermometer
Barometer

Maximum depth of use :

220m

Data sheet

Products: Computer

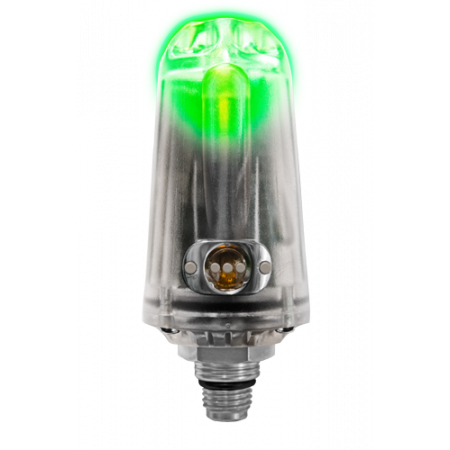

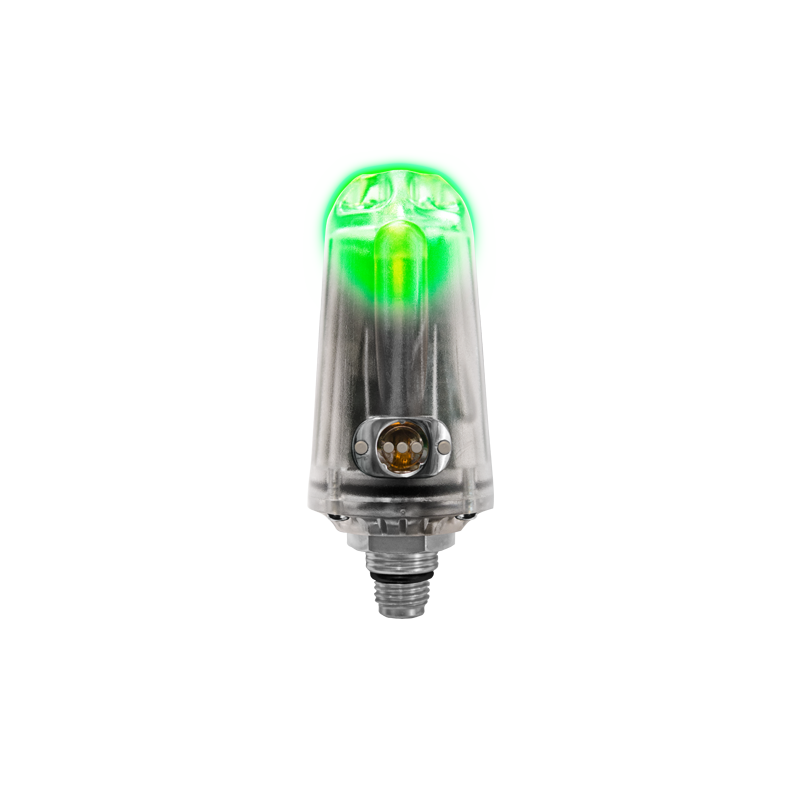

Wireless pressure transmitter for Ratio iDive and iX3M dive computers.

The Ratio wireless pressure transmitter is compatible with Ratio iDive and iX3M computers.
It features an LED pressure display

Transmitter
of
pressure transmitter
transmitter for
dive computers
Ratio
iDive and iX3M

This wireless pressure transmitter for Ratio iDive and iX3M computers is a major innovation in the field of wireless transmission of diving information.

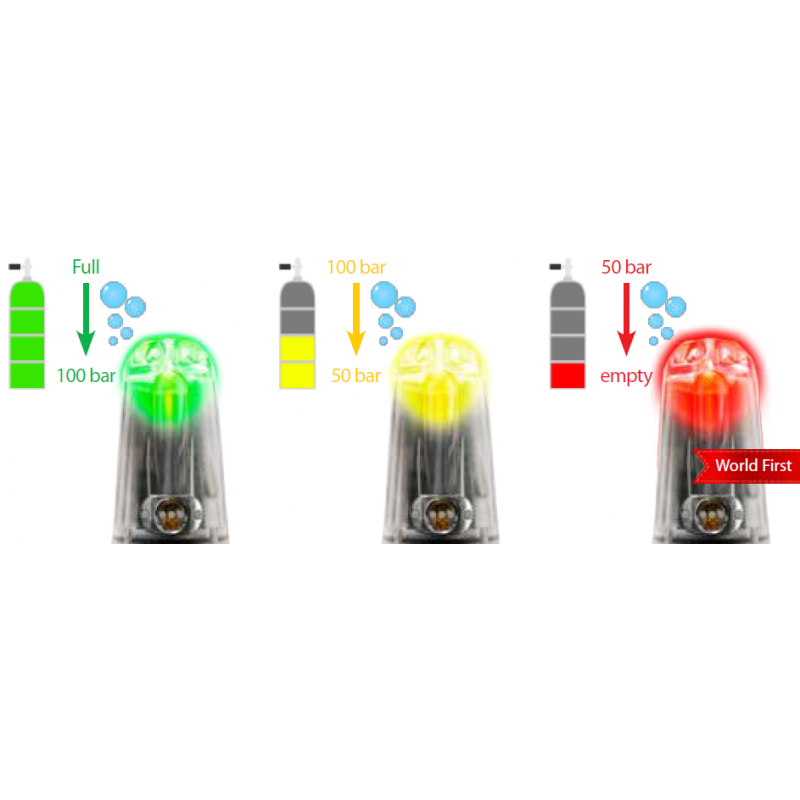

This wireless transmitter provides compatible Ratio computers with information on the pressure measurement in the diver's tank. But above all, it features an LED that informs the diver of the pressure level remaining in his tank:

Green: up to 100bar
Yellow: from 100bar to 50bar
Red: below 50bar

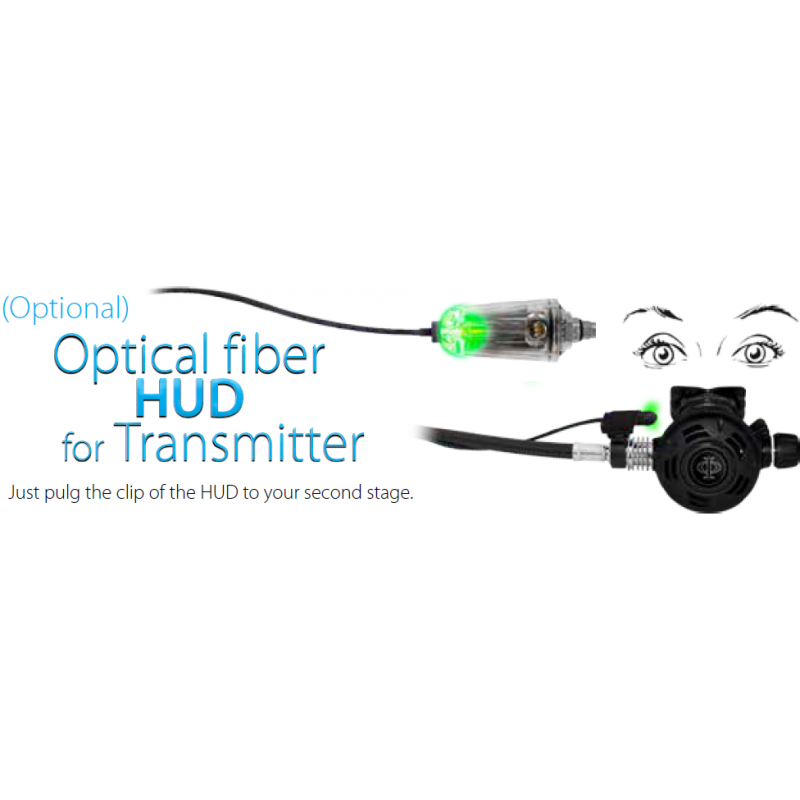

This is visual information that can be transmitted to the diver's eye via an optional optical fiber attached to the regulator hose.

The transmitter is powered by a lithium battery that can be recharged using the USB cable supplied with the computer.

It is compatible with Ratio 2017 computers:

iDive Easy Sport, Deep Sport, Tech+Sport
iDive Easy Avantgarde, Deep Avantgarde, Tech+ Avantgarde
iX3M Pro Easy, iX3M Pro DEEP, iX3M Pro Tech+
iX3M Pro GPS Easy, iX3M Pro GPS Deep, iX3M Pro GPS Tech+, iX3M Pro GPS Reb

Technical specifications :

3/8-24 medium-pressure thread (MP regulator outlet)
Illuminated pressure indication: green/yellow/red (to 100bar/from 100bar to 50bar/below 50bar)
Battery: rechargeable lithium
Autonomy: approx. 100h of diving.
Maximum depth of use :
Maximum pressure readable by transmitter: 250bar
Maximum pressure acceptable by transmitter: 300bar

Product contents :

1x Ratio wireless transmitter

Data sheet

Products: Others

RATIO Shell Box carrying case

Designed to hold the iX3M2 or iDive COLOR, as well as the USB cable.
Rigid construction that withstands knocks and crushing in your dive bag.
Compact travel size: measuring 15 x 14 x 9 cm, it fits easily into hand luggage or a dive case.

The official hard case for your RATIO dive computer.

RATIO Shell Box Carrying Case

The RATIO Shell Box carrying case is the ideal accessory for your diving trips. It provides effective protection against the rigours of transport. Unlike soft cases, its rigid structure effectively protects the screen of your iX3M or iDive by preventing any direct pressure when your bag is compressed or placed under other equipment.

Technical specifications

Material: rigid shell with durable fabric covering.
Dimensions: 15 cm x 14 cm x 9 cm.
Colour: black with a discreet Ratio logo.
Weight: ultra-lightweight, won’t add bulk to your travel kit.

Diveavenue expert’s opinion

The Shell Box is the accessory you often forget to buy at the start, but which quickly becomes indispensable. What I like is its ability to protect the iX3M’s protruding buttons from side impacts. It’s neat, sturdy, and means you no longer have to rummage around the bottom of your bag for your charging cable. A small investment for great peace of mind.

Frequently Asked Questions (FAQ)

Can other brands of dive computers fit inside? Although designed for Ratio, its generous size means it can accommodate most large-screen dive computers on the market, as well as bulky dive watches.
Is the case waterproof? No, it is a protective case designed to protect against knocks and scratches. It protects against splashes, but is not designed to be submerged.
Does the USB cable fit easily inside with the computer? Yes, there is enough space inside to neatly coil the cable without it putting any strain on the computer’s casing.
