COLTRI ARMOR 4 Explosion-proof safety inflation station

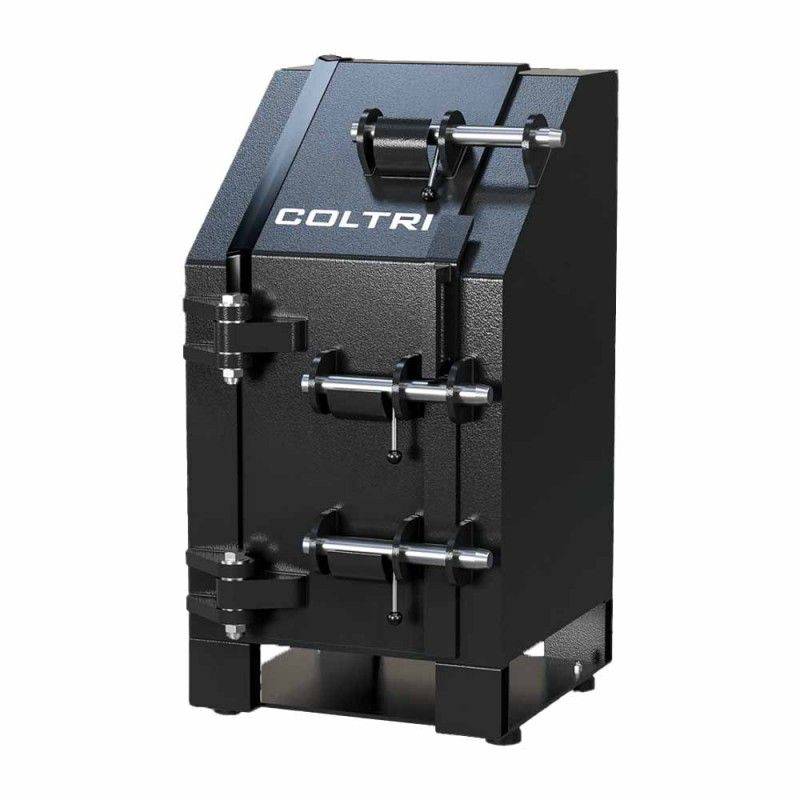

COLTRI ARMOR 2 explosion-proof safety ramp for inflating 2 ARI cylinders or dive cylinders

Explosion protection has become a prescription or standard in many countries as a result of accidents caused by explosions during cylinder filling. This ramp designed by COLTRI replaces expensive protective measures for filling spaces and thus guarantees a high level of legal security for the operator.

Protection against cylinder explosions or the tearing off of filling hose connections is provided by an extremely robust steel safety cell.
Transportable for mobile use, also in vehicles.
Controllable air evacuation at the top of the cabinet in the event of a cylinder explosion. For the protection of the operators.
Easy loading, even in confined spaces.
Automatic locking of the explosion-proof bottle cart during filling effectively prevents incorrect handling.

Technical data sheet

• Height: 112 Cm
• Width: 69 Cm
• Depth: 60 Cm
• Weight: 222 Kg
• Working Pressure: 420 Bars Maximum

Equipment including

• 1 explosion-proof safety cabinet
• 1 door opening safety device to prevent filling when the door is open.
• 2 individual pressure reading manometers for each connected SCBA cylinder
• 2 Coltri hoses with DIN 300 bar standard connections
• 2 individual control valves
• 2 individual bleed valves
• Inlet connection: DIN 5/8" (other connections available: 6S, 8S, 1/4, Coltri ... )

Further information:

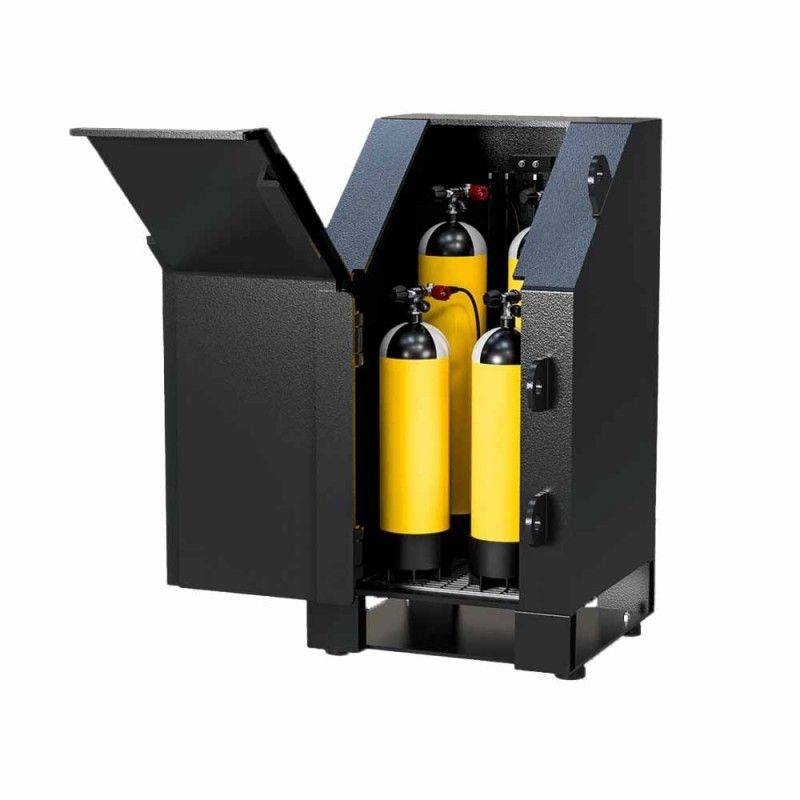

This explosion-proof cabinet allows the simultaneous filling of up to 2 SCBA cylinders with a maximum diameter of 208 mm and a maximum length of 620 mm (not suitable for diving blocks).
