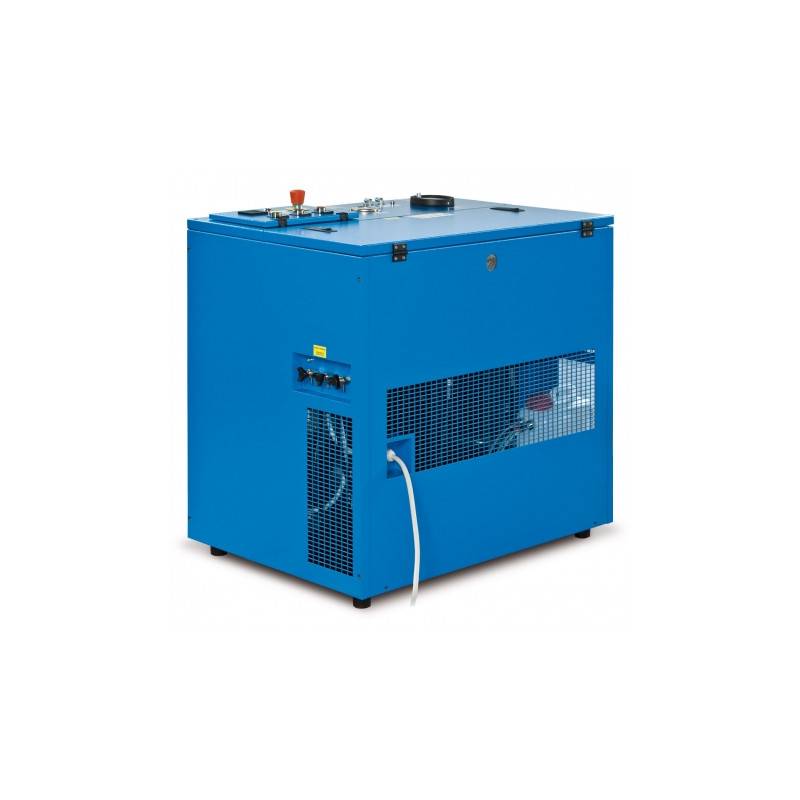

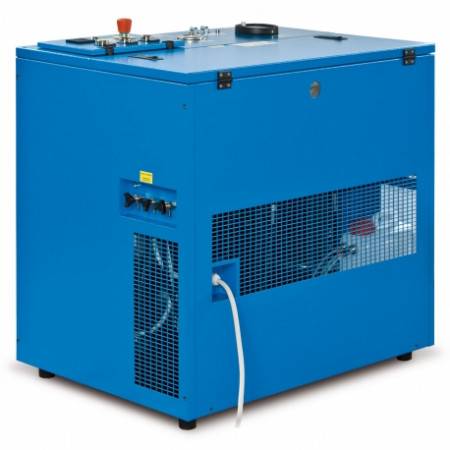

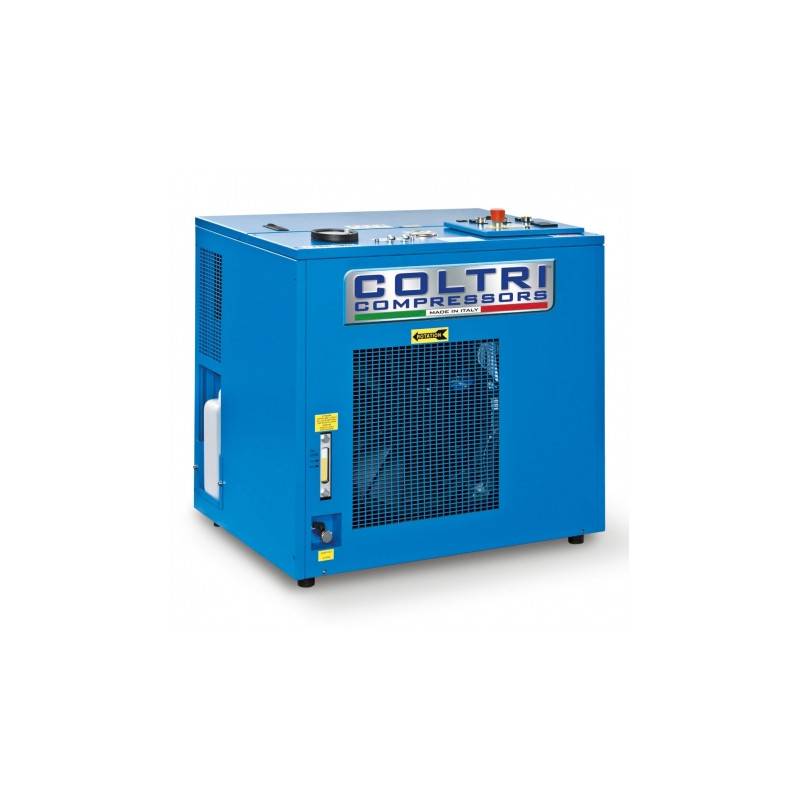

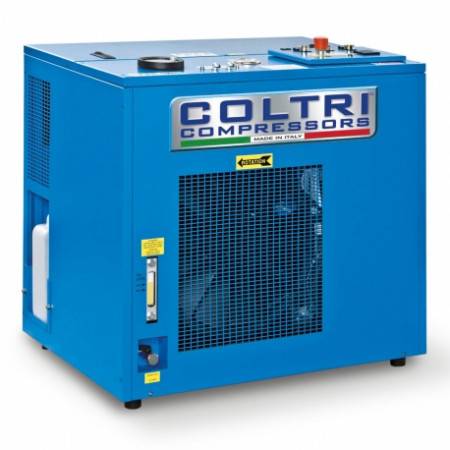

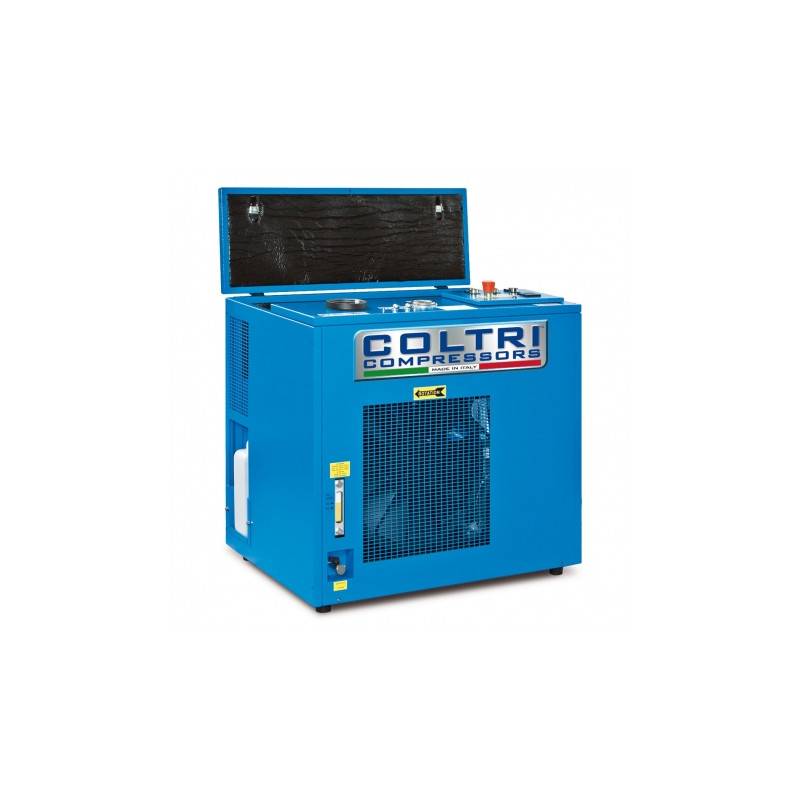

COLTRI Compressor MCH8/MCH11 EM Compact 240 V single-phase
Compressor COLTRI MCH 8/11 EM Compact
The COMPACT range has been designed to meet the following problem: to go to the essentials for the smallest possible budget. Equipped with 2 flexible inflation outlets at the front, a drive motor, a robust compressor block, automatic drains and an electrical cabinet managing the automatic stop of the compressor.
This version is suitable for users who do not have a three-phase power supply.
The COMPACT range is equipped with the MCH8 or MCH16 (depending on version) compression block developed by COLTRI since the end of the 1960s and constantly improved to meet the performance, air quality and robustness requirements required for use in the most severe conditions.
A proven compressor block!
The MCH8-V6 and MCH16-V18 blocks are built to last. They have been tested under the most extreme conditions thousands of times around the world.
Adopted by the managers of the largest diving centers in Europe, Egypt, the West Indies, Polynesia and Asia for its reliability and ease of maintenance.
With more than 90,000 machines in operation in fire and rescue services in Europe, North America and Asia, it is capable of providing high load rates at operating pressures ranging from 330 bar up to 420 bar.
The COLTRI MCH16-V18 blocks are also embarked on merchant and naval vessels to meet the needs of onboard security services and divers.
Proven in the steel, automotive, plastics and petrochemical industries to meet production needs under severe conditions of use, it can also be used to meet the needs of specific industrial processes.
In service in the military operations of many armies around the world, its robustness and reliability have made it one of the French army's selection criteria when renewing its fleet of 150 compressors dispatched to the various theatres of operation around the world.
Quality of the compression block
The MCH8-V6 (for the MCH8) and MCH16-V18 (for the MCH11) compression blocks are designed for professional applications. This is the essential component of the machine on which COLTRI has left nothing to chance.
All materials are machined in high energy performance light alloys for increased reliability.
The ground cylinders have undergone an ionic nitriding treatment, which results in a high surface hardness that provides high resistance to wear, friction, abrasion and seizure.
The crankshaft is mounted on robust SKF bearings that guarantee a long service life even at high temperatures.
The block is painted with a special paint that allows excellent heat dissipation while ensuring its protection against external aggressions in saline atmospheres. The paint makes maintenance easier when cleaning the cooling coils.
The 316L stainless steel interstage cooling coils are dimensioned to ensure optimal cooling and allow for increased cartridge autonomy.
The COLTRI MCH8-V6 and MCH16-V18 blocks are designed to compress mixtures of air and NITROX up to 40% Oxygen.
A compact chassis!
The welded chassis of the COMPACT range allows a good cooling flow and protects the user. The chassis integrates the electrical cabinet, the electric motor, the compression block, the automatic purge and automatic stop system and the filtration system. Powder coated epoxy resin paint provides effective protection in hostile environments.
A simple and reliable control system!
In order to optimise the reliability of the machine in all environments (heat, humidity, saline environments, storms, cold, etc.) COLTRI has chosen to dispense with the control of the system by means of the standard electronic control board. The whole machine is therefore controlled by a traditional electromechanical relay system. After years of service, any faulty component can be replaced locally without delay and without constraints related to the replacement cost and parameterization of the electronic boards.
The compressor shut-off pressure switch accessible from the front allows for quick changes in the pressure range if inflation at lower pressures is required.
A high-performance and environmentally friendly automatic purging system!
The automatic bleed system on the compressor is quiet and efficient. Its adjustable timer allows the purging frequency to be adapted to the ambient humidity level.
The drain block is designed to consume a minimum of air when draining condensate to maintain flow performance.
The automatic drain system is equipped with a condensate recovery system with silencers. It avoids the release of oily residues into the environment.
Filtration for Breathable Quality Air!
The compressor of the COMPACT range is equipped with several filtration systems to ensure an air quality in accordance with the requirements of EN 12021:2014.
The compressor block is equipped with cyclone separators on the 2nd and 3rd stages. The MAXIFILTER final filtration ensures filtration of oil, odours and water down to a dew point of -60°C.
Technical Data Sheet:
Height: 88 cm
Width: 92 cm
Depth: 61 cm
Operating pressure: 230, 300 or 330 Bar
Power: Electric Single Phase
Sound Intensity In DB(A) At 1m: 75
Compressor Use: Professional and Association
Direction Of Rotation Sensor: No
40% Nitrox compatible: Yes
Automatic Drains: Yes
Automatic Shutdown: Yes
Rechargeable Filtration: No
Interstage pressure gauges: No
PRESEC-SECURUS Filtration: No
Number of flexible outlets with valve: 2
Compressor mobility: stationary compressor
- Automatic purges and automatic shutdown
- Electrical starter cabinet with emergency stop and hour meter
- Water and oil separator 2nd and 3rd stage
- Safety valves 1st, 2nd, 3rd stage
- MAXIFILTER filtration
- 2 flexible outlets at the front with DIN or ETRIER inflation valve
- compression group
sc00090 (230v-50hz) sc00091 (230v-60hz)
sc00095 (230v-50hz) sc00096 (230v-60hz)
195 l/min - 11,7 m³/h
232 - 330 bar / 3 300 - 4 700 psig
232 - 330 bar / 3 300 - 4 700 psig
3 kw (230 v - 50/60 hz)
Dimensions (w x h x d)
92 x 88 x 61 cm
92 x 88 x 61 cm
Approx. net weight
