AMMONITE SYSTEM ACCU THERMO TYPE 14 heating battery

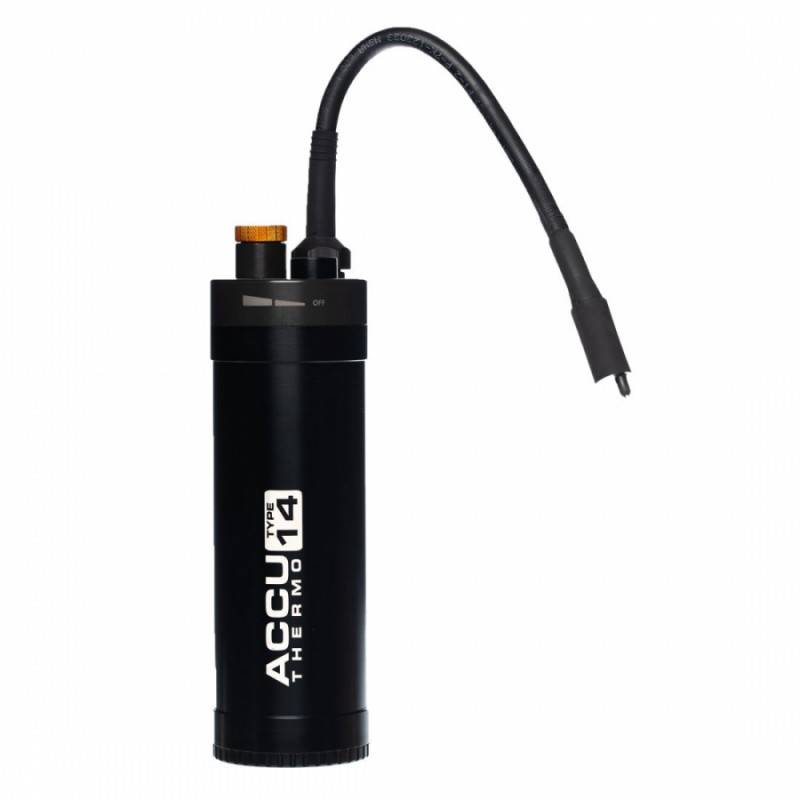

Accu Thermo Type 14 underwater heating and lighting battery AMMONITE SYSTEM

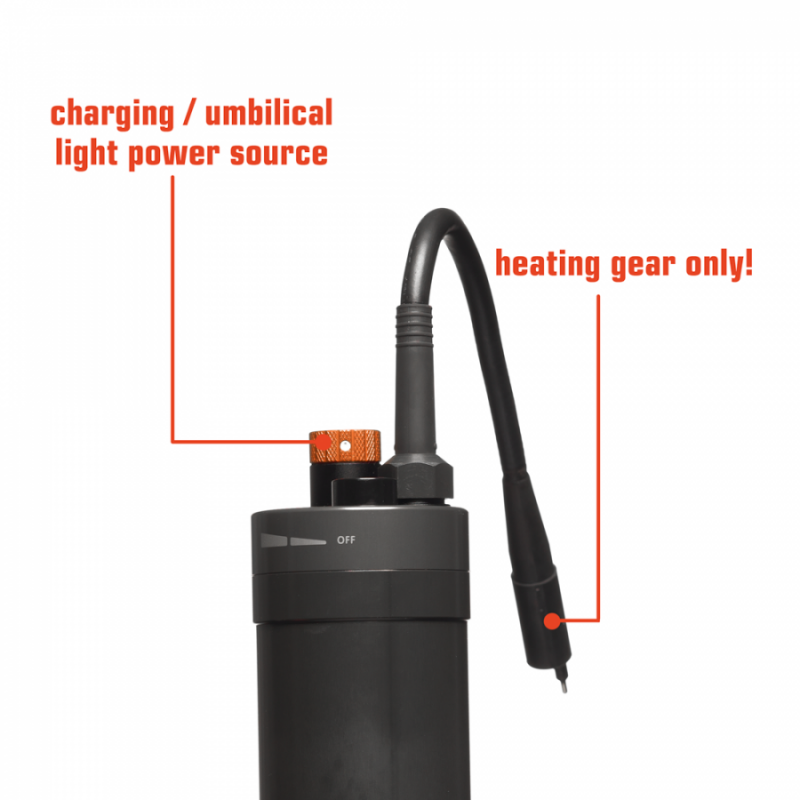

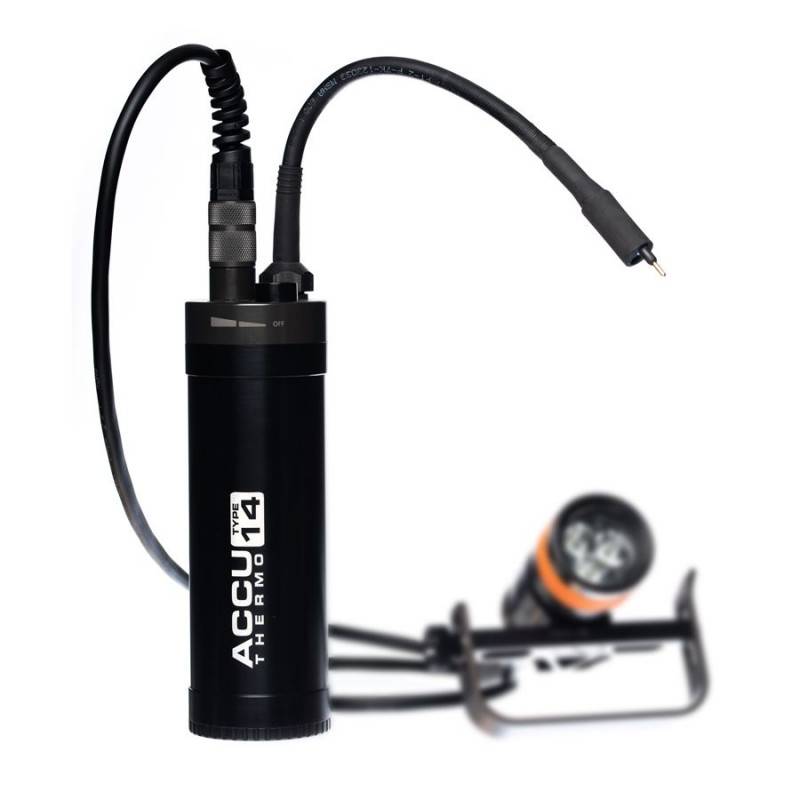

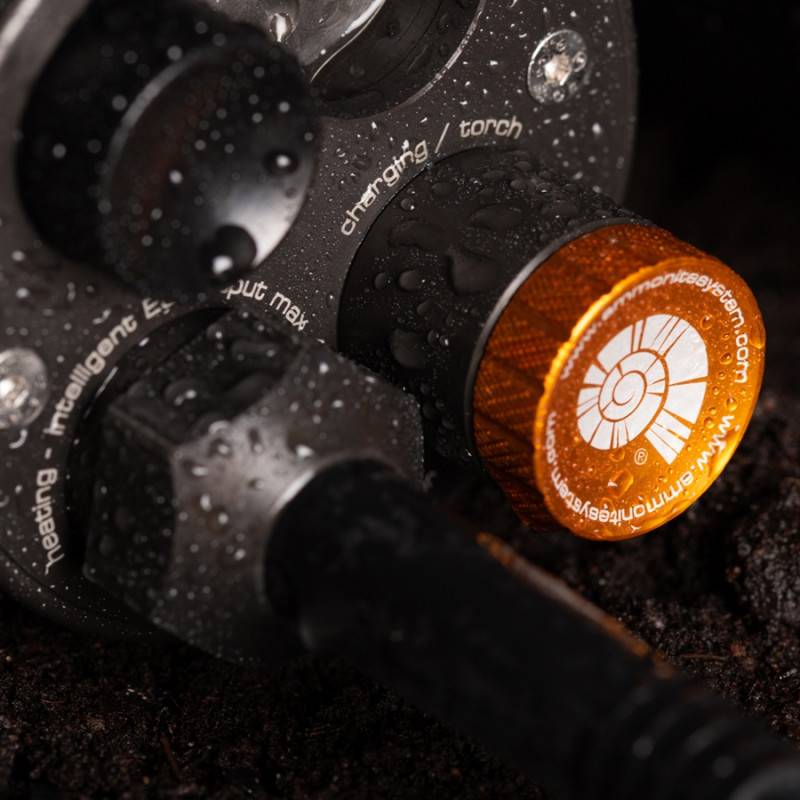

The Accu Thermo Type 14 is a 14Ah battery pack designed for two simultaneous uses. It has a socket for attaching an Ammonite umbilical light and a second waterproof E/O connector for connecting to a heating system such as gloves or a jacket.

The Accu Thermo type 14 is equipped with intelligent electronics. First of all, there is a battery level indicator via LEDs. A magnetic button is used to switch it on. The on-board electronics easily detects when to supply energy when the pack is connected to the heating system and cuts off the energy supply when the plug is disconnected.

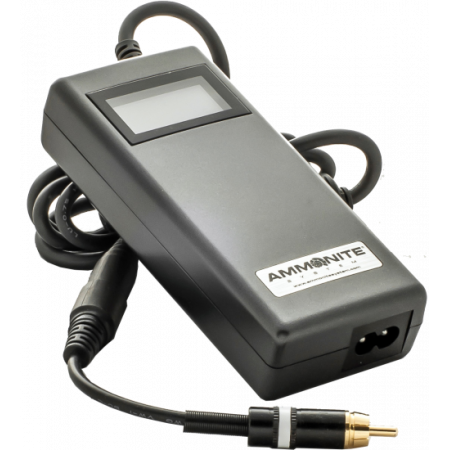

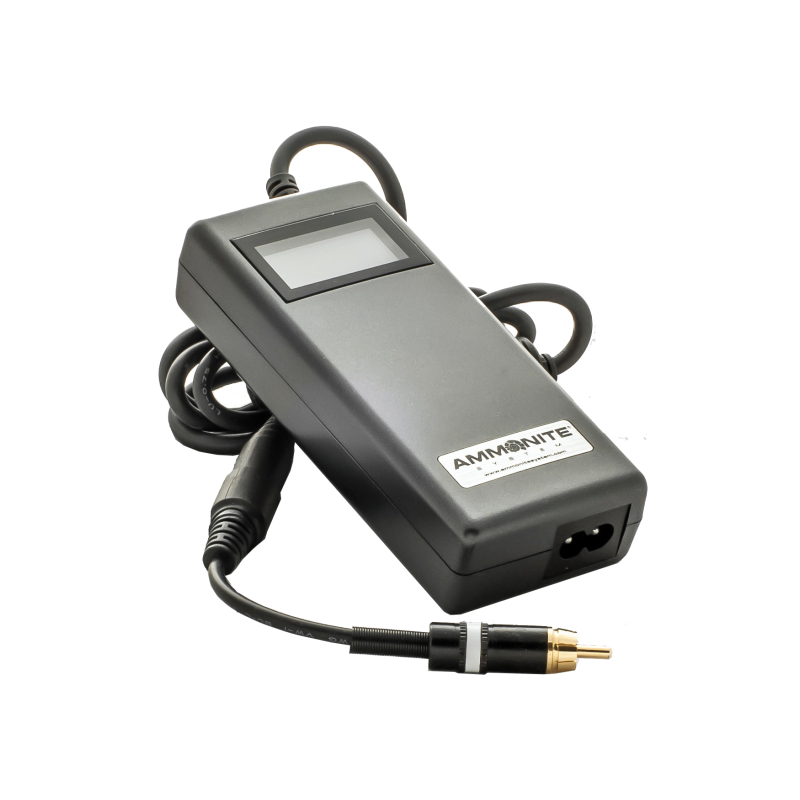

An intelligent charger is integrated with the battery pack.

Its all-aluminum construction makes it waterproof to a depth of 15m.

Technical characteristics of the pack Accu Thermo type 14 :

Nominal capacity: 14Ah Li-ion
Voltage : 10.95V
Total energy: 125Wh
Charger : 100-240V
Battery life : 500-700 cycles
Dimensions: 200mm x Ø66mm
Weight AIR/WATER: 1110g/415g
Maximum depth: 150m

Typical duration times:

Gloves 30W: 4h50
Jacket 55W : 2h40
Gloves + jacket 85W : 1h45
Jacket 110W : 1h20
Gloves + jacket 140W : 1h00
