Bigblue EO heating system controller (I/Y)

BigBlue

Bigblue EO heating system controller (I/Y)

€149.00

Tax included

Price excluding tax / DOM-TOM €124.17

Reference : EO connecteur Bigblue

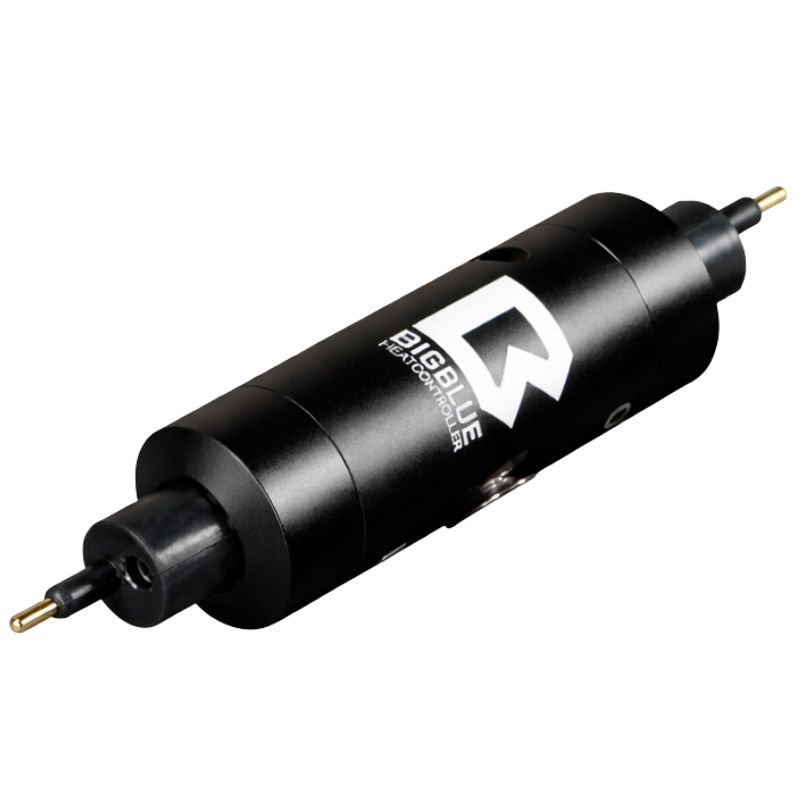

Bigblue heating system EO controller (I/Y)

Control your thermal comfort: allows you to regulate the power of your heated clothing (jacket, gloves) across four intensity levels to suit your actual needs.

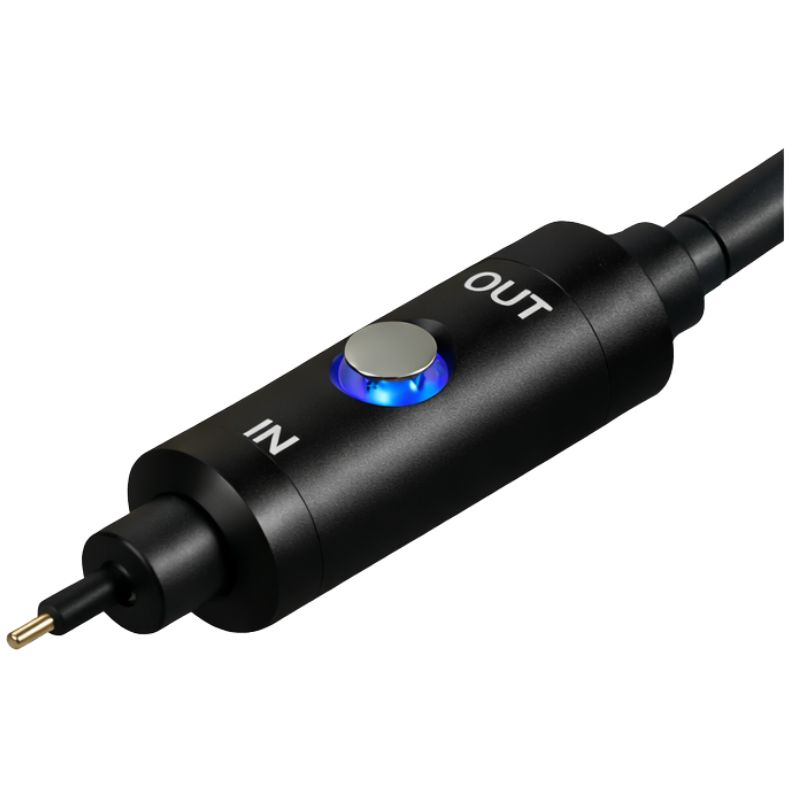

LED colour indicator: a colour-coded button instantly informs you of the selected heating level.
Standard EO connectors: equipped with robust EO connectors, allowing you to connect or disconnect your equipment even underwater with complete waterproofing.
Two configurations available: choose version I (single output) for a single piece of equipment or version Y (double output) to power a jacket and gloves simultaneously.
Design: made of anodised aluminium, waterproof to a depth of 100 metres.

new

Available from mid-February. Dispatch within 2 to 3 days.

Shipping

Free Shipping From 89 € for France * * See conditions

Product return & exchange 14 days to change your mind

24/7 support 24/7 customer return guaranteed

100% secure payment By credit card, bank transfer, PayPal or check

Bigblue EO heating system controller (I/Y)

The Bigblue EO controller is the management interface between your external battery and your heating system. We know that energy management is critical: heating too much at the start can drain your battery before the end of your decompression.

With this compact box, you can maintain precise control over the power delivered continuously.

Technical specifications

Material: corrosion-resistant anodised aluminium.
Adjustment levels: 4 power settings (100%, 75%, 50%, 25%).
Water resistance: tested to 100 metres (330 ft).
Connectors: EO type (male/female depending on configuration).
Configuration:

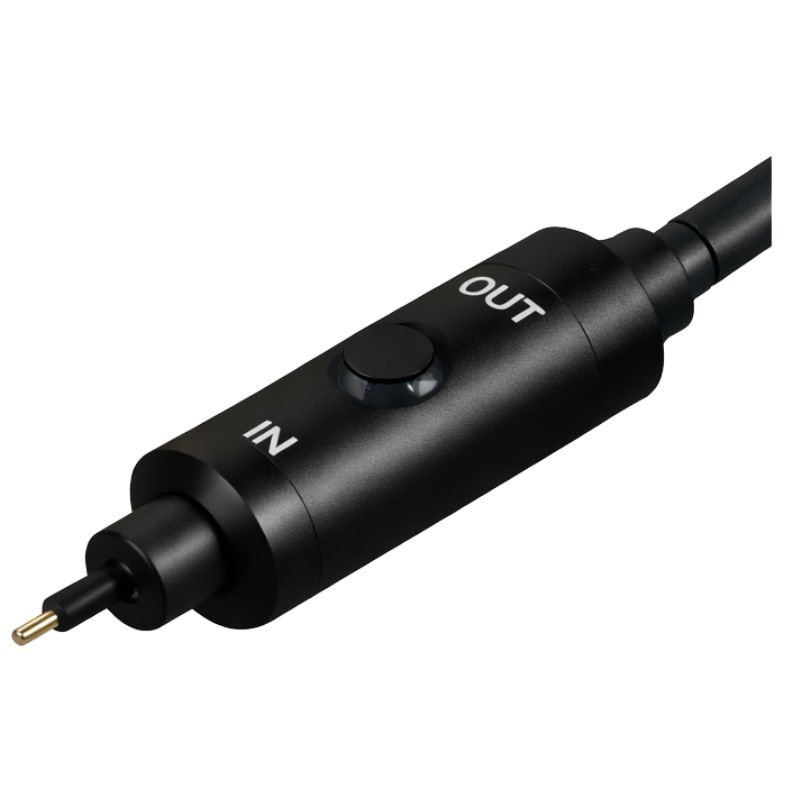

EO Heat Controller I: in-line module for controlling a single device.

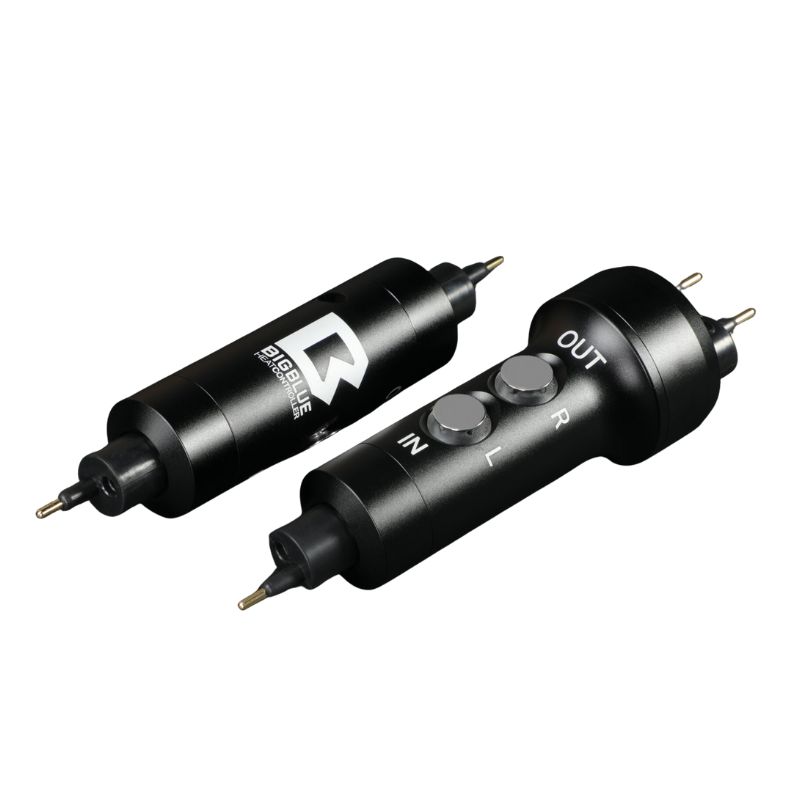

EO Heat Controller Y: module distributing power to two devices, each output cable being independently adjustable (left and right) for separate control of each piece of equipment.

Compatibility: compatible with Bigblue batteries and heated clothing as well as most EO systems on the market.

🤿 DiveAvenue's expert opinion on the Bigblue controller

What I particularly like about this model is the responsiveness of the button. Even with thick waterproof gloves, the tactile feedback is excellent. The Y version is a real plus: it avoids multiple cables and bulkhead passages, greatly simplifying the configuration for those who use the complete heated jacket and gloves set.

❓ Frequently asked questions (FAQ)

What is the difference between the I and Y models ? The I model has a single EO output for a single garment. The Y model includes a splitter to power two pieces of equipment (such as your gloves and waistcoat) from a single power source.

Can I use it with a battery from another brand ? Yes, as long as your battery (canister) is equipped with a standard EO plug and delivers a voltage compatible with your heated clothing (usually 12V).

How do I read the power levels ? The button changes colour each time you press it: Blue (25%), Green (50%), Orange (75%) and Red (100%). It's extremely intuitive, even during a night dive.
