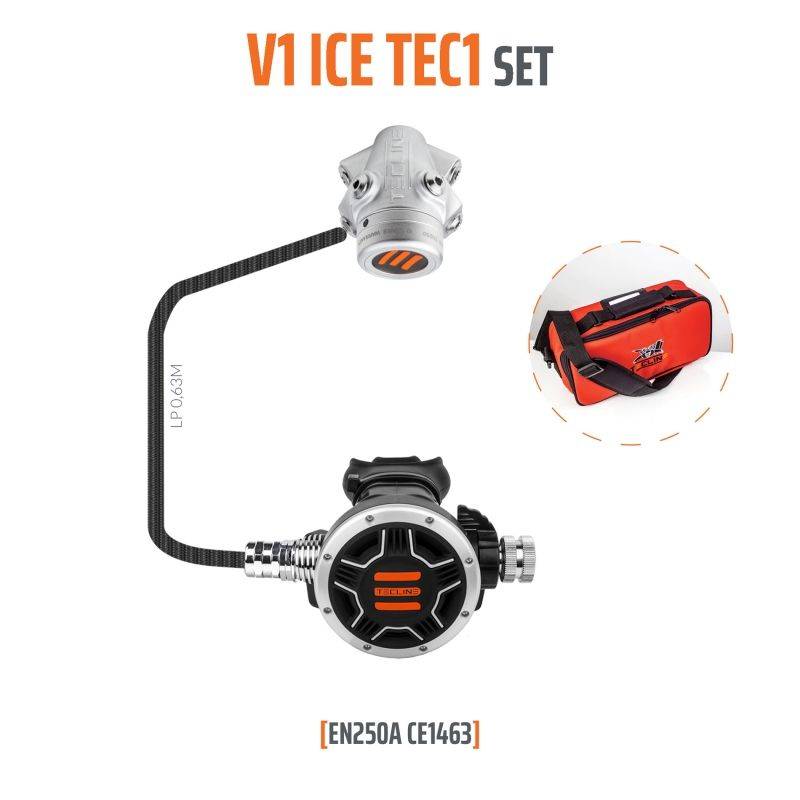

Regulator V1-TEC1 - TECLINE

Regulator V1-TEC1 - TECLINE

High-performance regulator for single-bottle systems

The first stage of the regulator is equipped with a dry chamber perfectly adapted to cold water. The V2 has been validated under particularly extreme diving conditions and is not subject to icing, even with an air consumption of more than 62l/min. Functional tests carried out in the laboratory of the Polish Maritime Academy in Gdynia at the Polish Register of Ships Commission confirm that the detedneur is particularly effective. The results of the breathing resistance tests place this regulator among the best on the market today. This regulator is therefore ideal for use in both recreational and commercial diving in all environments.

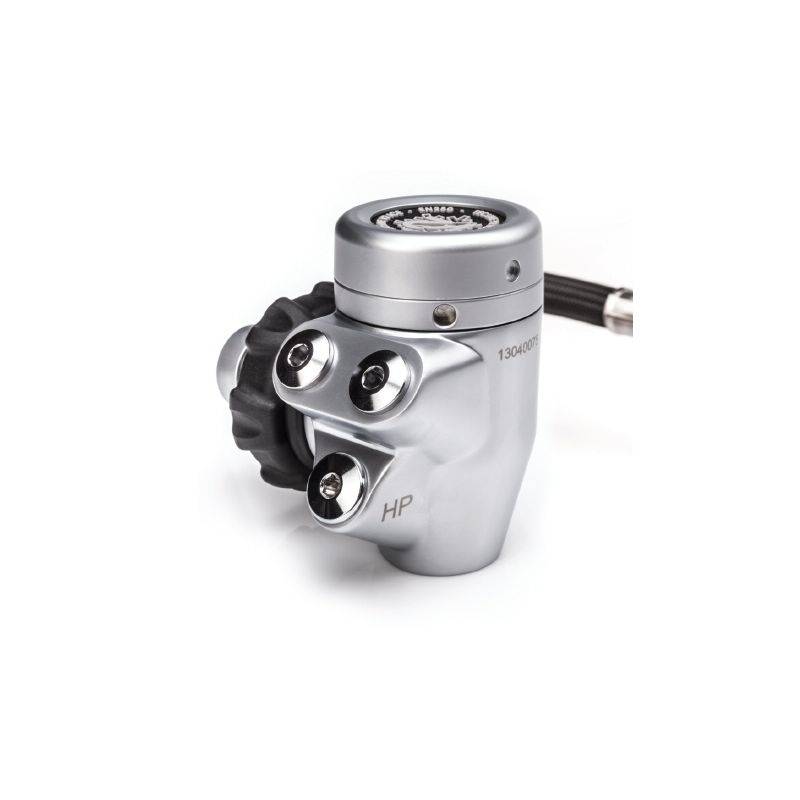

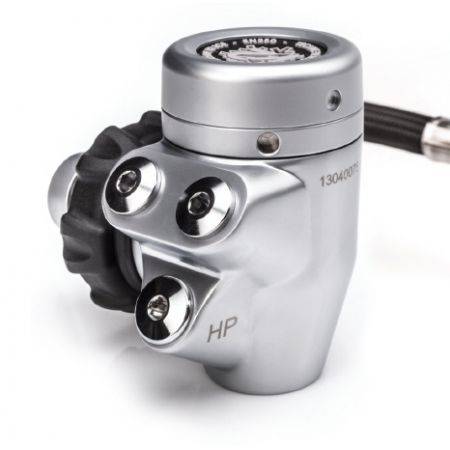

1st stage :

• Output: 4 MP, 2 HP
• maximum working pressure of 300 bar
• maximum flow at 20 MPa: 3823 l / min
• intermediate pressure 8,5 bar
• Weight 790 g

Second stage :

• Venturi and hardness adjustment on inspiration
• maximum flow at 20 MPa: 850 l / min
• Breathing resistance of 0.983-1.004 J / l
• Weight 210 g
• complete hose MP 75cm
• meets the requirements of the EN 250 standard;

3 additional options are available:

• With octopus TEC and miflex hose 100cm yellow
• With 63mm manometer (hose length 80cm)
• With octopus AND manometer.
