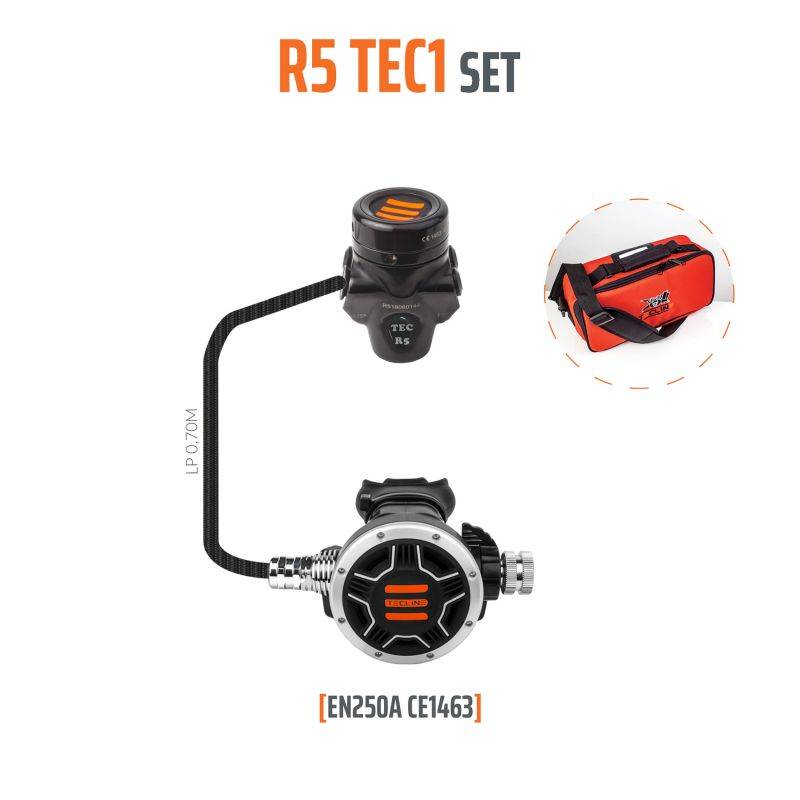

Compensated diaphragm regulator and cold water kit with compensated second stage for perfect use in bottom gas.

The first stage of the regulator is equipped with a dry chamber perfectly adapted to cold water. The R5 has been validated under particularly extreme diving conditions and is not subject to icing, even with an air consumption of more than 62l/min. Functional tests carried out in the laboratory of the Polish Maritime Academy in Gdynia at the Polish Register of Shipping Commission confirm that the regulator is particularly effective. The results of the breathing resistance tests place this regulator among the best on the market today. This regulator is therefore ideal for use in both recreational and commercial diving in all environments.

1st stage :

• Output: 4 MP, 2 HP
• Perfect orientation of the outlets
• Black chrome finish.
• maximum working pressure of 300 bar
• maximum flow at 20 MPa: 3823 l / min
• intermediate pressure 8,5 bar
• Weight 720 g

Second stage :

• Venturi and hardness adjustment on inspiration
• maximum flow at 20 MPa: 850 l / min
• Breathing resistance of 0.983-1.004 J / l
• Weight 210 g
• complete hose MP 75cm, black
• meets the requirements of EN 250
