Diving regulator oxygen pack R4-TEC2 O2 M26 - TECLINE

Oxygen regulator R4 TEC2 TECLINE with 1st stage with R4 membrane and 2nd stage TEC2 and storage bag

This TECLINE-T15370 regulator is specially prepared for oxygen diving. It consists of a TECLINE R4 TECLINE diaphragm regulator with 100cm hose and a compensated TEC2 second stage.

The proposed oxygen regulator is ideal for decompression blocks for example.

The Tecline R4 TEC membrane regulator is designed for cold water with a dry chamber and a special cold water kit. Maximum operating pressure of 300 bar.

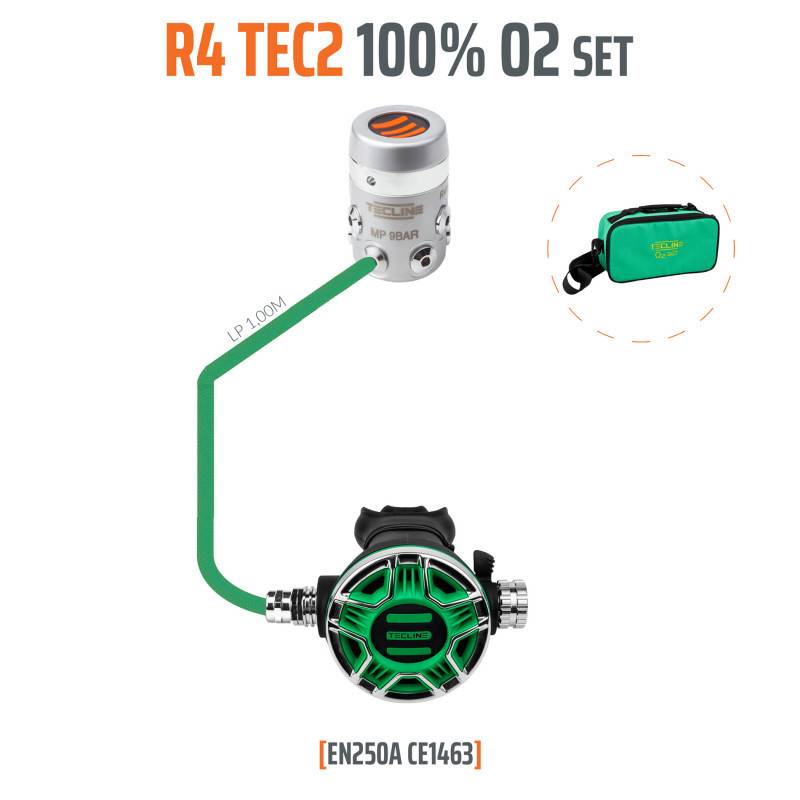

CONTENTS OF THE PACK :

• 1st stage R4 O2 M26 (REF: T01410-3)
• 2nd floor TEC2 O2 green (REF: T01610-3)
• Bag for regulators GREEN O2 (REF: 85012-3)
• Pressure reducer hose, green nylon flex braid. 3/8UNF. Length 100cm

TECHNICAL CHARACTERISTICS OF THE R4 TEC REGULATOR

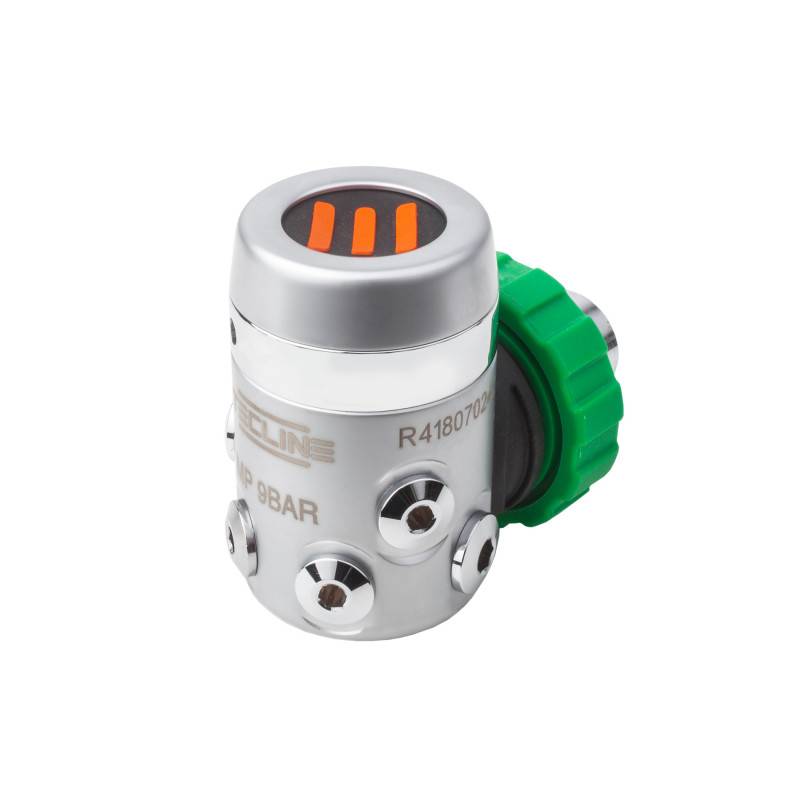

1st stage R4 with disaphragm

• Diaphragm-compensated expansion valve
• Dry room and cold water kit
• Outputs: 4 MP and 2 HP,
• Maximum working pressure: 300 bar,
• Maximum flow rate at 20 MPa pressure: 3823 L/min,
• Intermediate pressure: 8.5 bar,
• Weight: 730 g

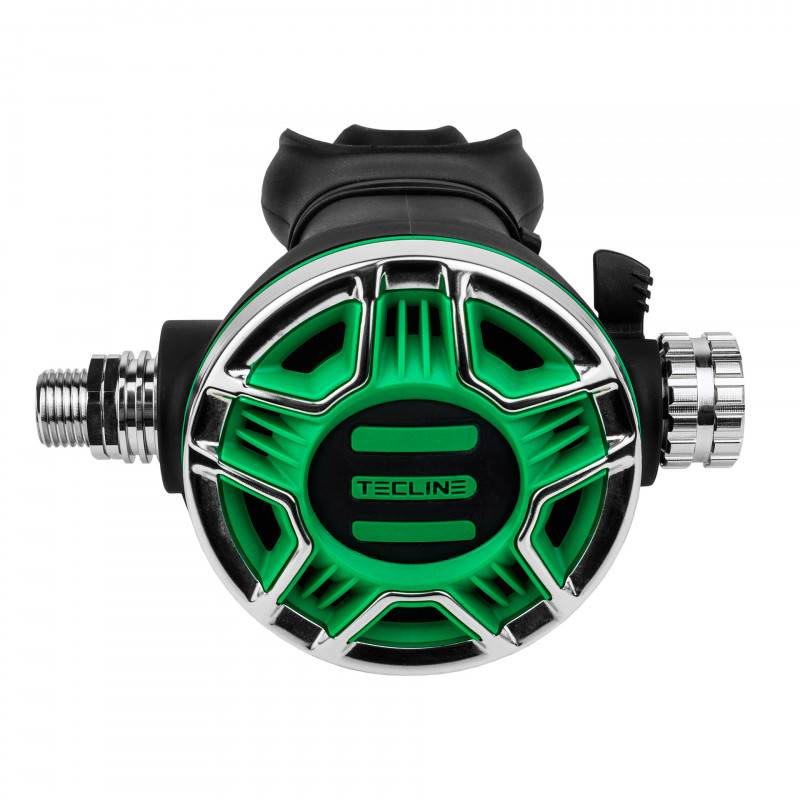

2nd stageTEC2

• Pneumatically balanced
• Adjusting the Venturi effect
• Breathing resistance adjustment knob
• DFS : direct flow system
• Body made of materials resistant to large temperature changes
• Stainless steel outer ring
• Teflon coating of metal parts against frost
• Supplementary heat exchanger for cold water
• Weight: 260g
• Ergonomically shaped mouthpiece
• Meets the requirements of EN 250.

GUARANTEE :

10 years guarantee for the first owner.
