Regulator 1st stage R2 TEC TECLINE

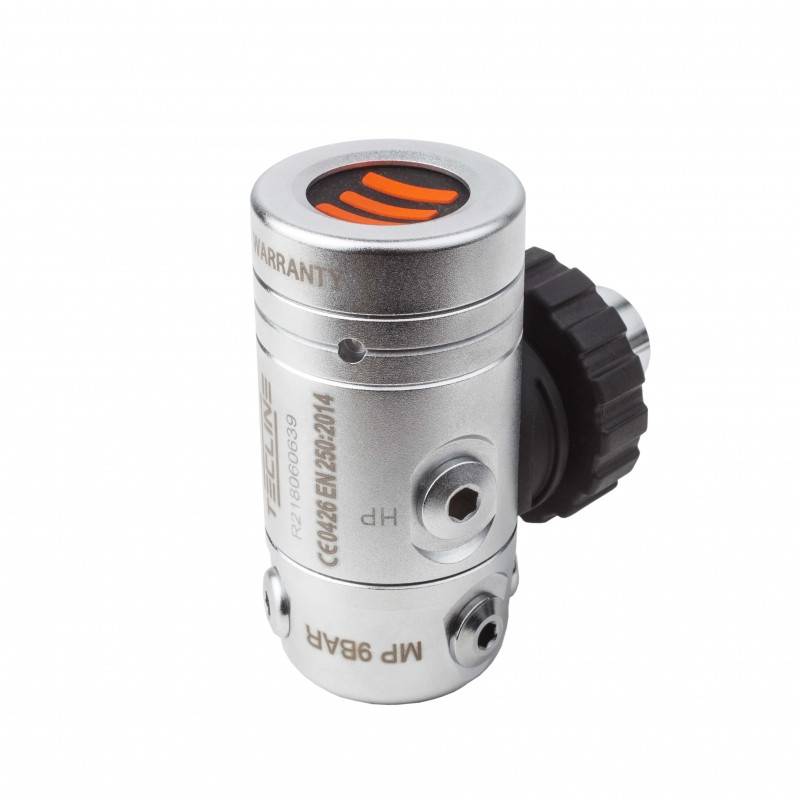

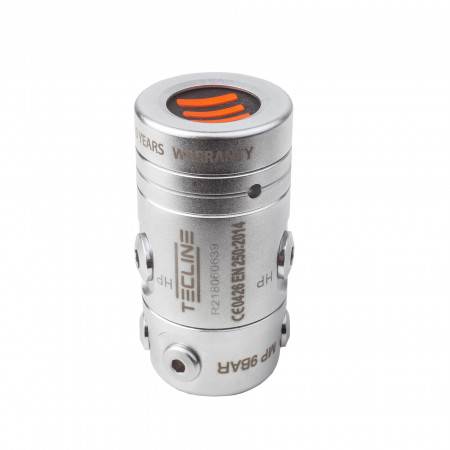

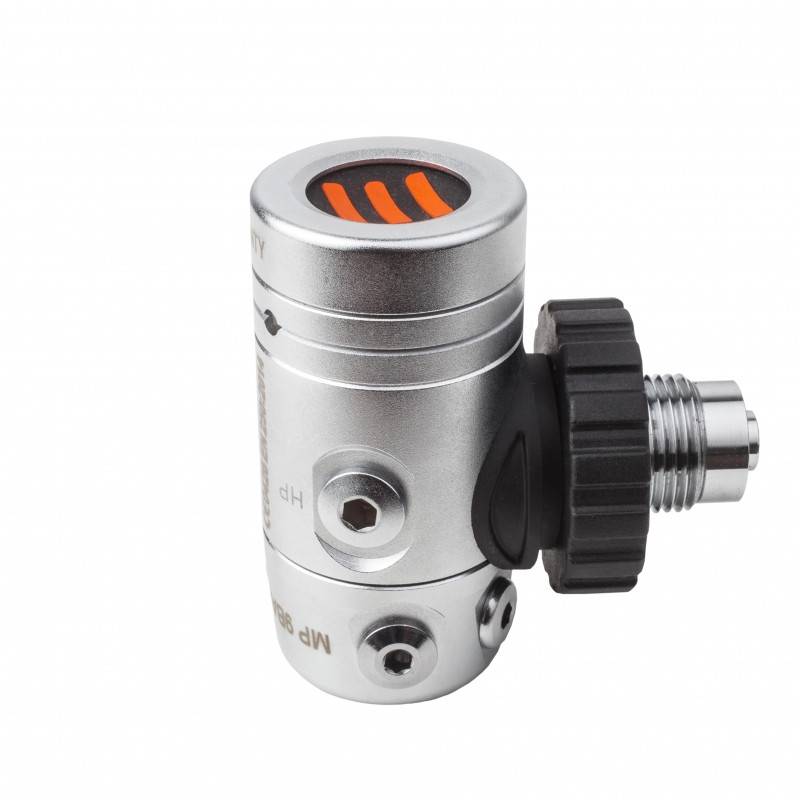

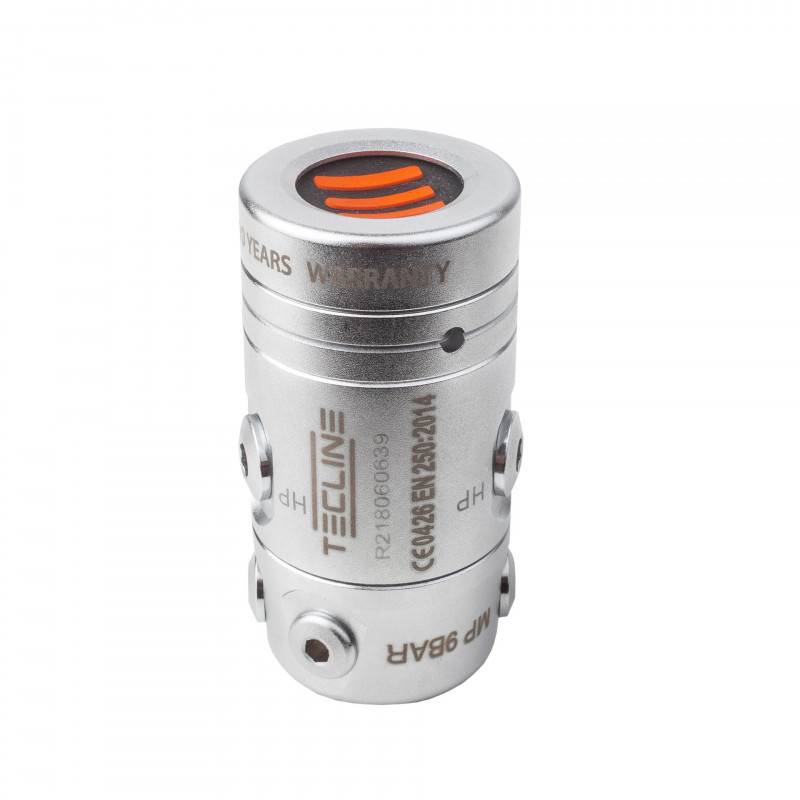

The 1st stage of the TECLINE R2 TEC regulator

The 1st stage of the TECLINE R2 TECE regulator is a compensated diaphragm regulator. It incorporates an anti-icing kit. It has a rotating turret.

This regulator allows a very good configuration in Sidemount for example.

In addition, it is Nitrox compatible up to 40% and accepts a working pressure up to 300bars

TECHNICAL CHARACTERISTICS OF THE REGULATOR R2 ICE MONO

1st stage R2 ICE MONO with membrane

• Outputs: 4 MP and 2 HP,
• Compensated diaphragm with cold water kit,
• Max. 300bar,
• Operating pressure 9 bar,
• Maximum flow rate at a pressure of 20 MPa: 3823 L / min,
• Weight 790 g
• Meets the requirements of EN 250; CE1463 certified

WARRANTY:

• 10 years guarantee for the first owner subject to annual maintenance by an authorized TECLINE center.
