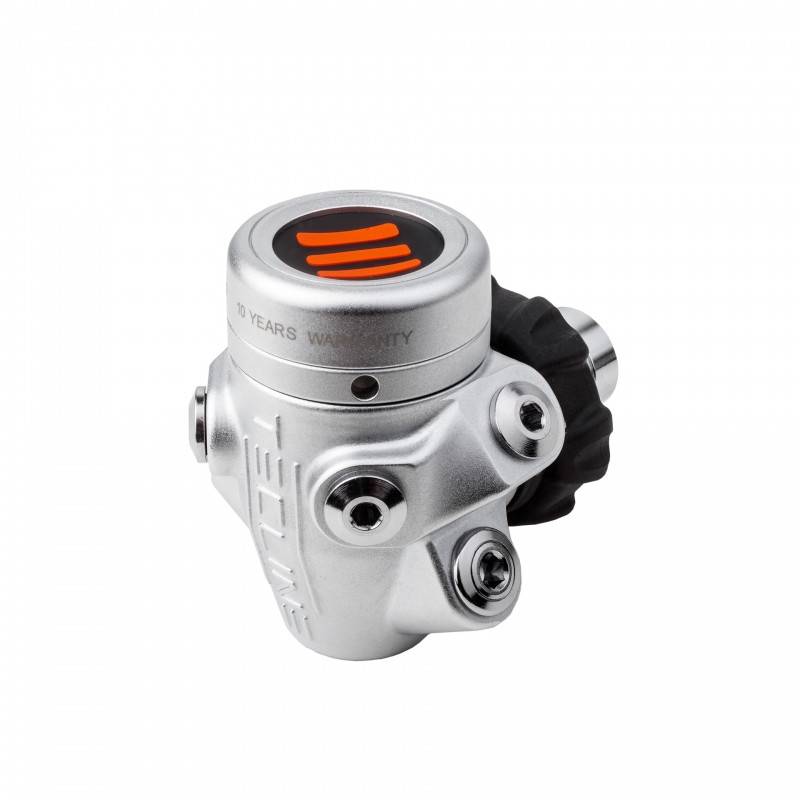

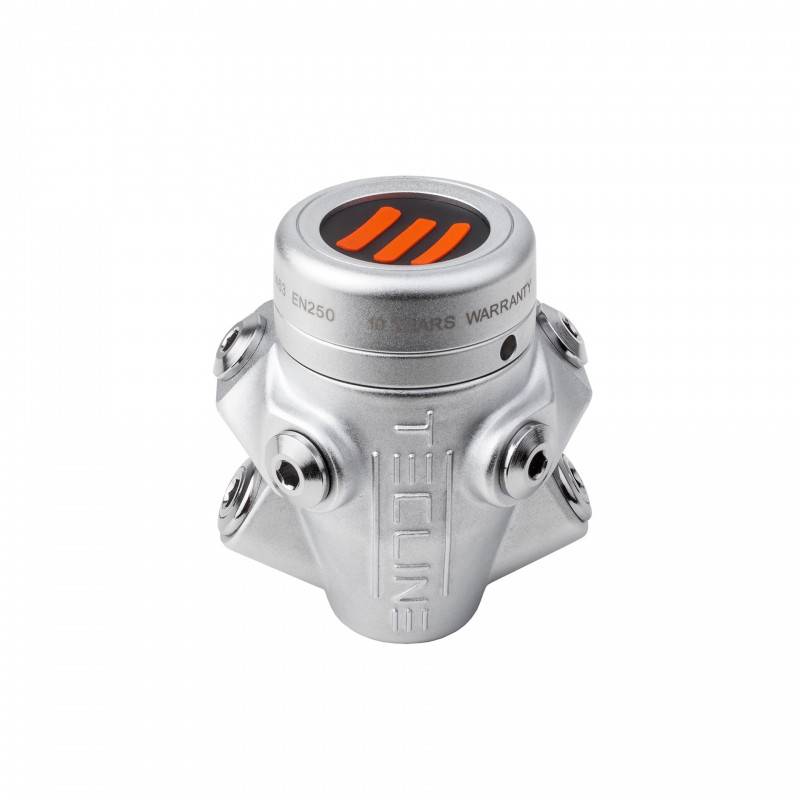

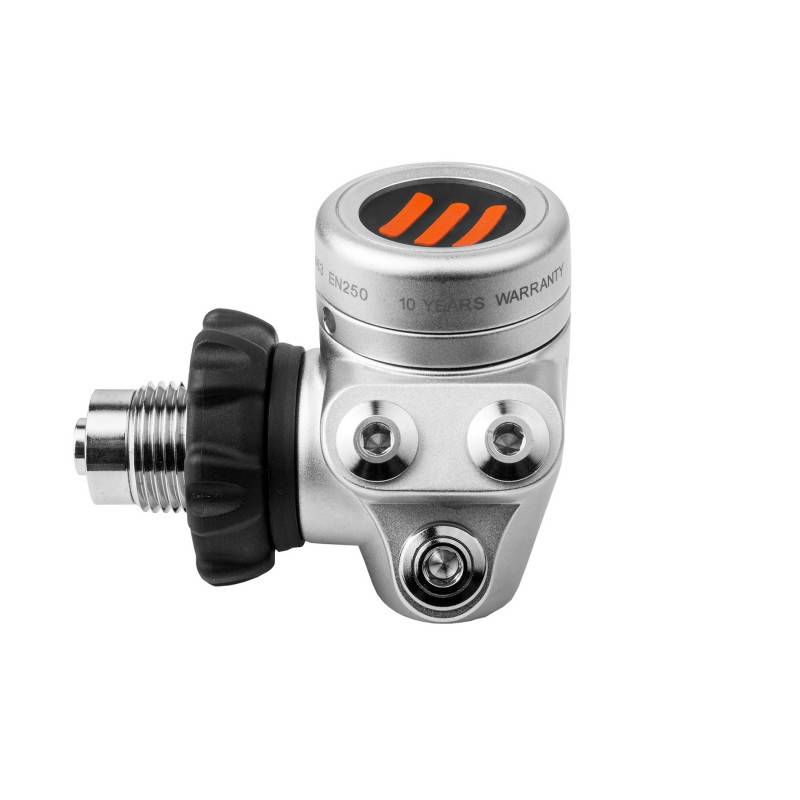

Regulator 1st stage V1 ICE TECLINE

TECLINE 1st stage V1 ICE diaphragm ragulator

The TECLINE V1 ICE 1st stage regulator is a high-quality diving regulator. It has a very high throughput of 3823 l / min. From an assembly point of view, it has flexible angular outputs.

Given its performance, the TECLINE V1 ICE will ideally be used with a high performance 2nd stage compensated.

The V1 ICE regulator is Nitrox compatible up to 40

TECHNICAL CHARACTERISTICS OF  THE V1 ICE  REGULATOR

1st stage V1 ICE with diaphragm

• Outputs: 4 MP and 2 HP,

• Compensated diaphragm with cold water kit,
• Max. 300bar,
• Operating pressure 9 bar,
• Maximum flow rate at a pressure of 20 MPa: 3823 L / min,
• Weight 790 g
• Meets the requirements of EN 250; CE1463 certified

WARRANTY:

• 10 years guarantee for the first owner subject to annual maintenance by an authorized TECLINE center.
