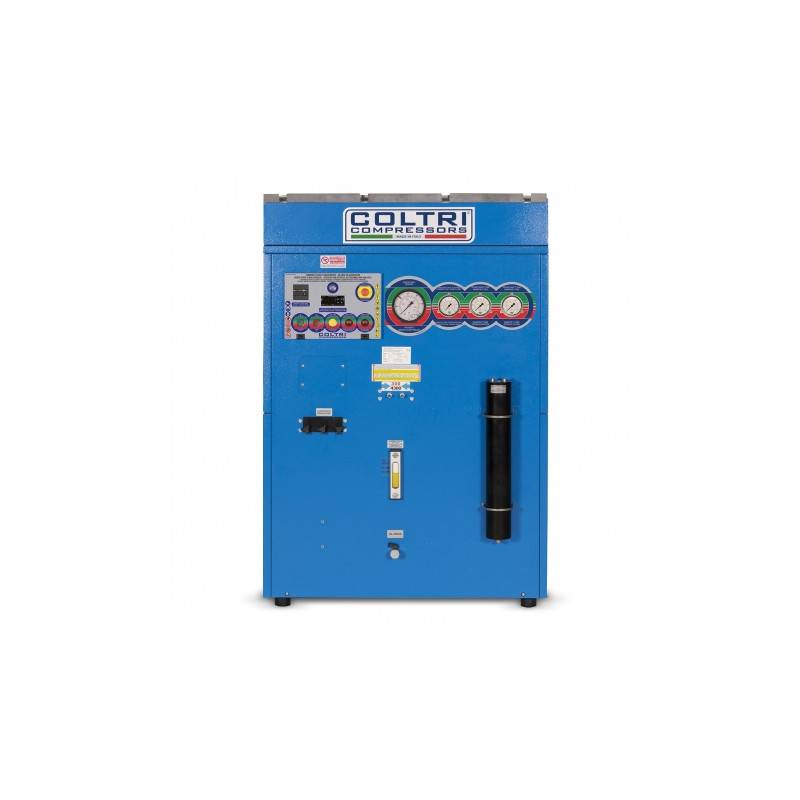

Compressor COLTRI MCH13/MCH16/MCH18 ETS Super Silent EVO 400V Three-phase

€0.00
Tax included
Price excluding tax / DOM-TOM €0.00
COLTRI

Soundproof high pressure diving compressor MCH

  • H.P. compressor COLTRI SUPER SILENT ETS EVO MCH 13 (14.1 m3/h)
  • H.P. compressors COLTRI MCH 16 (18.9 m3/h)
  • H.P. compressors COLTRI MCH 18 (19.8 m3/h)

Three-phase electric motor

Quotation upon request only


Supplier stock, upon order

Shipping
Free Shipping From 89 € for France * * See conditions
Product return & exchange 14 days to change your mind
24/7 support 24/7 customer return guaranteed
100% secure payment By credit card, bank transfer, PayPal or check
Compressor COLTRI MCH13/MCH16/MCH18 ETS Super Silent EVO 400V Three-phase

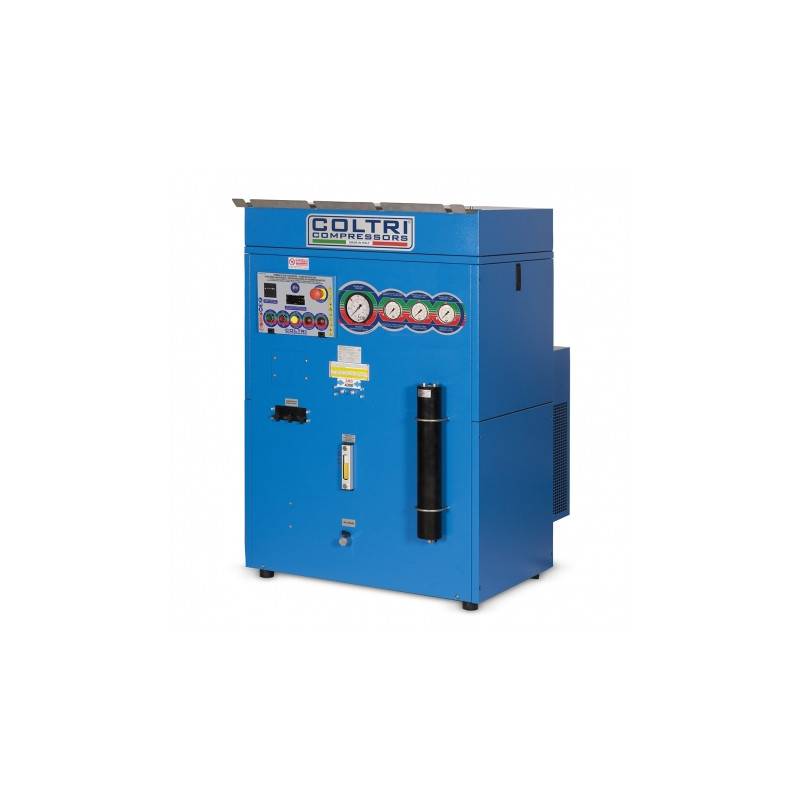

Compressor COLTRI MCH 13/16/18 ETS Super Silent EVO


The SUPER SILENT EVO range has been designed to meet the following requirements: getting to the essentials, a reduced budget, a soundproof machine and control systems that allow efficient monitoring of compressor operation. Equipped with 2 flexible inflation outlets at the front, inter-stage pressure gauges, oil level and ventilation air temperature safety device, direction of rotation detector, drive motor, robust compressor block, automatic bleed valves and an electrical cabinet managing the automatic stop of the compressor. Its specially designed bodywork to improve cooling allows it to drop below the 70 dBa threshold during operation.

The COMPACT EVO range is equipped with the MCH16 compressor block developed by COLTRI since the end of the 1960s and constantly improved to meet the requirements of performance, air quality and robustness required for use in the most severe conditions.

A proven compressor block!


The MCH16-V18 block is built to last. It has been tested under the most extreme conditions thousands of times around the world.

Adopted by the managers of the largest diving centers in Europe, Egypt, the West Indies, Polynesia and Asia for its reliability and ease of maintenance.

With more than 90,000 machines in operation in fire and rescue services in Europe, North America and Asia, it is capable of providing high load rates at operating pressures ranging from 330 bar up to 420 bar.

The COLTRI MCH16-V18 blocks are also embarked on merchant and naval vessels to meet the needs of onboard security services and divers.

Proven in the steel, automotive, plastics and petrochemical industries to meet production needs under severe conditions of use, it can also be used to meet the needs of specific industrial processes.

In service in the military operations of many armies around the world, its robustness and reliability have made it one of the French army's selection criteria when renewing its fleet of 150 compressors dispatched to the various theatres of operation around the world.

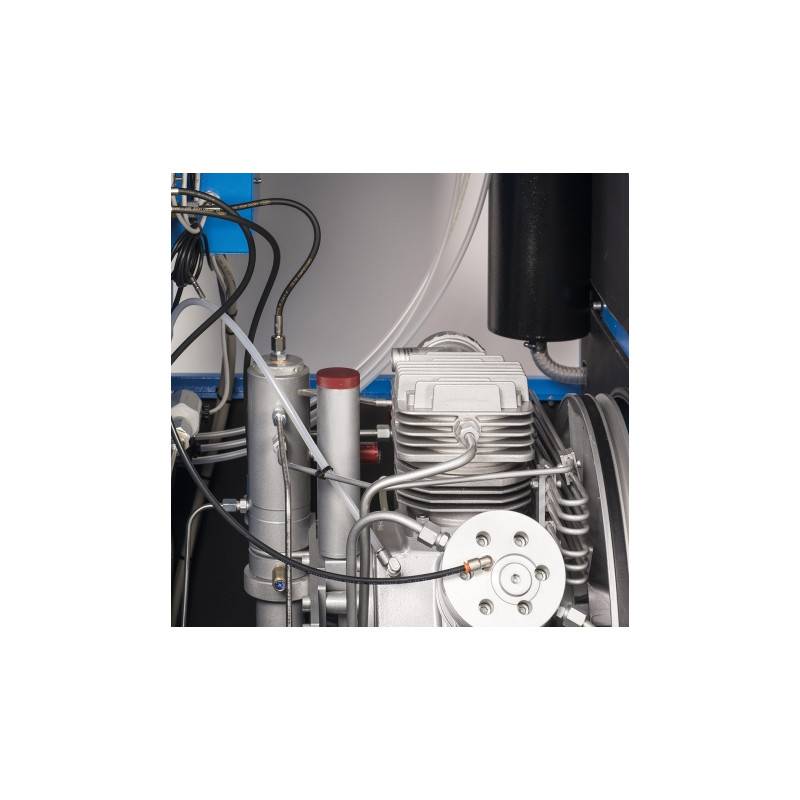

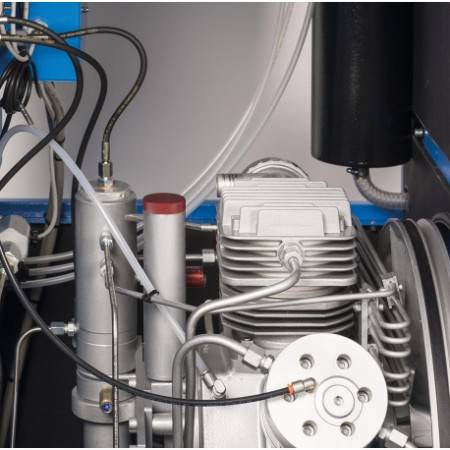

Quality of the compression block


The MCH16-V18 compression block is designed for professional applications. This is the essential component of the machine on which COLTRI has left nothing to chance.

All materials are machined in high energy performance light alloys for increased reliability.

The ground cylinders have undergone an ionic nitriding treatment, which results in a high surface hardness that provides high resistance to wear, friction, abrasion and seizure.

The crankshaft is mounted on robust SKF bearings that guarantee a long service life even at high temperatures.

The block is painted with a special paint that allows excellent heat dissipation while ensuring its protection against external aggressions in saline atmospheres. The paint makes maintenance easier when cleaning the cooling coils.

The 316L stainless steel interstage cooling coils are dimensioned to ensure optimal cooling and allow for increased cartridge autonomy.

The COLTRI MCH16-V18 block is designed to compress mixtures of air and NITROX up to 40% Oxygen.

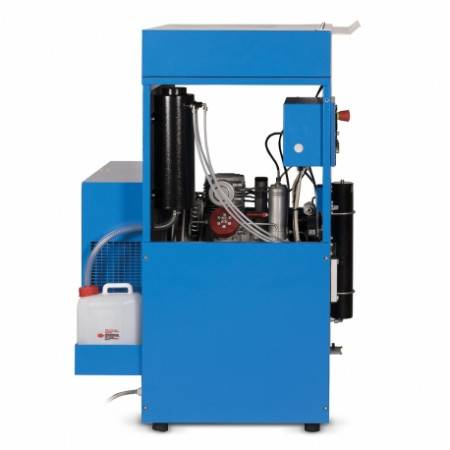

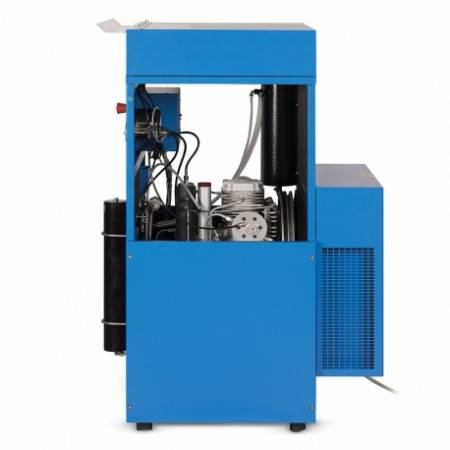

A compact and soundproof chassis!

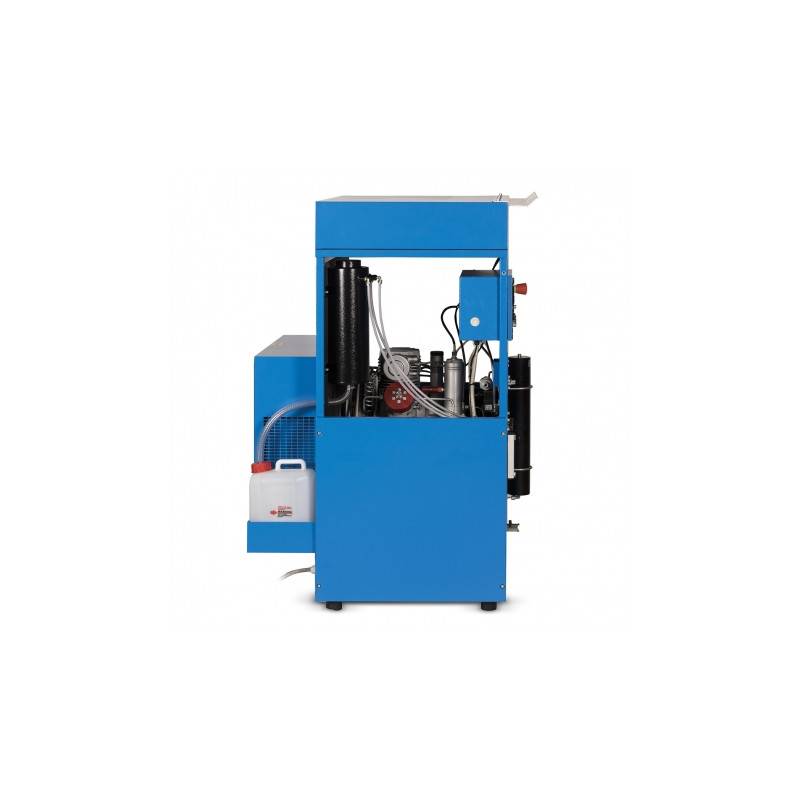

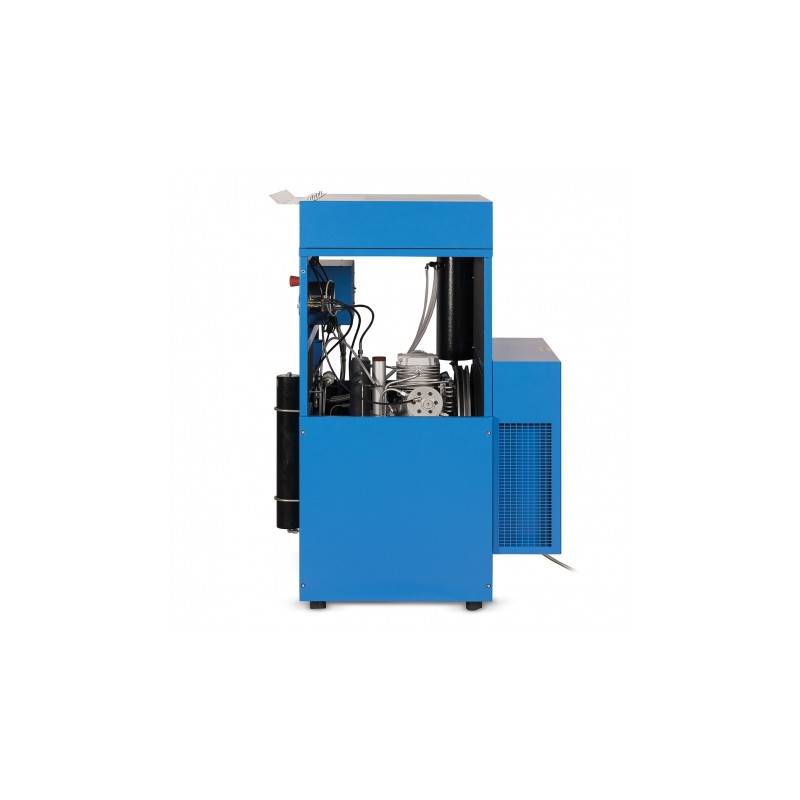

The mechanically welded chassis of the SUPER SILENT EVO range promotes a good cooling flow and protects the user. The chassis integrates the electrical cabinet, the pressure gauges on the 3 stages, the oil level safety device, the ventilation air temperature safety device, the direction of rotation detector, the electric motor, the compressor block, the automatic bleeding and automatic stop system and the filtration system. Powder coated epoxy resin paint provides effective protection in hostile environments.

A simple and reliable control system!


In order to optimise the reliability of the machine in all environments (heat, humidity, saline environments, storms, cold, etc.) COLTRI has chosen to dispense with the control of the system by means of the standard electronic control board. The whole machine is therefore controlled by a traditional electromechanical relay system. After years of service, any faulty component can be replaced locally without delay and without constraints related to the replacement cost and parameterization of the electronic boards.

The compressor shut-off pressure switch accessible from the front allows for quick changes in the pressure range if inflation at lower pressures is required.

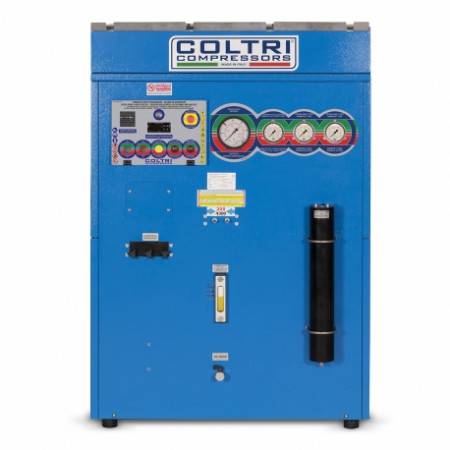

The pressure gauges on the 3 stages allow a precise monitoring of the machine operation.

The direction of rotation detector prevents the machine from running if, due to a problem on the electrical mains, the phases are reversed. The machine is therefore protected from the risks of reverse rotation and the cooling problems they cause.

The oil level safety and the ventilation air temperature safety ensure reliable operation of the machine even when the user is not next to the compressor.

A high-performance and environmentally friendly automatic purging system!
The automatic bleed system on the compressor is quiet and efficient. Its adjustable timer allows the purging frequency to be adapted to the ambient humidity level.

The drain block is designed to consume a minimum of air when draining condensate to maintain flow performance.

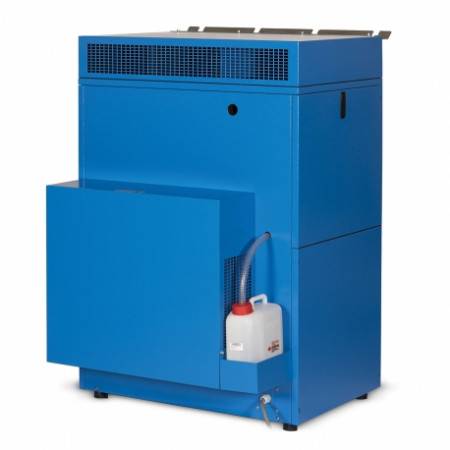

The automatic drain system is equipped with a condensate recovery system with silencers. It avoids the release of oily residues into the environment.

Filtration for Breathable Quality Air!


The compressor of the COMPACT range is equipped with several filtration systems to ensure an air quality in accordance with the requirements of EN 12021:2014.

The compressor block is equipped with cyclone separators on the 2nd and 3rd stages. The MAXIFILTER final filtration ensures filtration of oil, odours and water down to a dew point of -60°C.

As an option, it is possible to add the H.P RF500 Refrigerated Cooler to multiply the cartridge autonomy by 5. This option is ideal for industrial applications or for diving centers that require more than 1000 hours per year from their machines because the return on investment is very fast.

Technical Data Sheet:

  • Height: 132 Cm
  • Width: 90 Cm
  • Depth: 93 Cm (Removable Panel To Gain 25 Cm To Go Through A Door)
  • Working Pressure: 230, 300 or 330 Bars
  • Energy: Three-Phase Electric
  • Sound Intensity In DB(A) At 1m: 68
  • Compressor Usage: Professional and Association
  • Direction of Rotation Sensor: YES
  • Thermostat T°C And Oil Level Sensor: YES
  • Air Dryer-Cooler: OPTIONAL
  • Nitrox 40% compatible: YES
  • Automatic Drains: YES
  • Automatic Stop: YES
  • Rechargeable Filtration: NO
  • Inter-stage pressure gauges: YES
  • PRESEC-SECURE Filtration: NO
  • Number of Flexible Outlets With Faucet: 2
  • Compressor Mobility: Fixed Compressor

Equipment :

  • Automatic purges and automatic shutdown
  • Electrical starter cabinet with emergency stop and hour meter
  • Oil level safety
  • Ventilation air temperature safety device
  • Pressure gauges for pressure reading on the 3 stages
  • Water and oil separator 2nd and 3rd stage
  • Safety valves 1st, 2nd, 3rd stage
  • MAXIFILTER filtration
  • 2 flexible outlets at the front with DIN or ETRIER inflation valve


Optional equipment :

  • Refrigeration dryer RF500
  • 1 to 2 additional outputs to pass up to 4 outputs on the front panel.

Compression group

mch 13

mch 16

mch 18

Reference

sc000216 (230v-50hz)
sc000217 (230v-60hz)

sc000215/evo (400v-50hz)

sc000212/evo (440v-60hz)

sc000276 (230v-50hz)
sc000277 (230v-60hz)

sc000275 (400v-50hz)
sc000278 (440v-60hz)

sc000105 (230v-50hz)
sc000106 (230v-60hz)

sc000107 (400v-50hz)
sc000108 (440v-60hz)

Debit

235 l/min - 14,1 m³/h

315 l/min - 18,9 m³/h

330 l/min - 19,8 m³/h

Engine

électrique triphasé

électrique triphasé

électrique triphasé

Operating pressure

232 - 330 bar / 3 300 - 4 700 psig

232 - 330 bar / 3 300 - 4 700 psig

232 - 330 bar / 3 300 - 4 700 psig

Power

4 kw (230/400 v - 50/60 hz) - (440/480 v - 60 hz)

5,5 kw (230/400 v - 50/60 hz) - (440/480 v - 60 hz)

7,5 kw (230/400 v - 50/60 hz) - (440/480 v - 60 hz)

dimensions (wx h x d)

90 x 132 x 93cm

90 x 132 x 93cm

90 x 132 x 93cm

Approx. net weight

225 kg

235 kg

245 kg

Power level

Lpa acoustic

66 db

68 db

68 db
