Underwater DPV scooter SEACRAFT Future BX 800 AIR TRAVEL

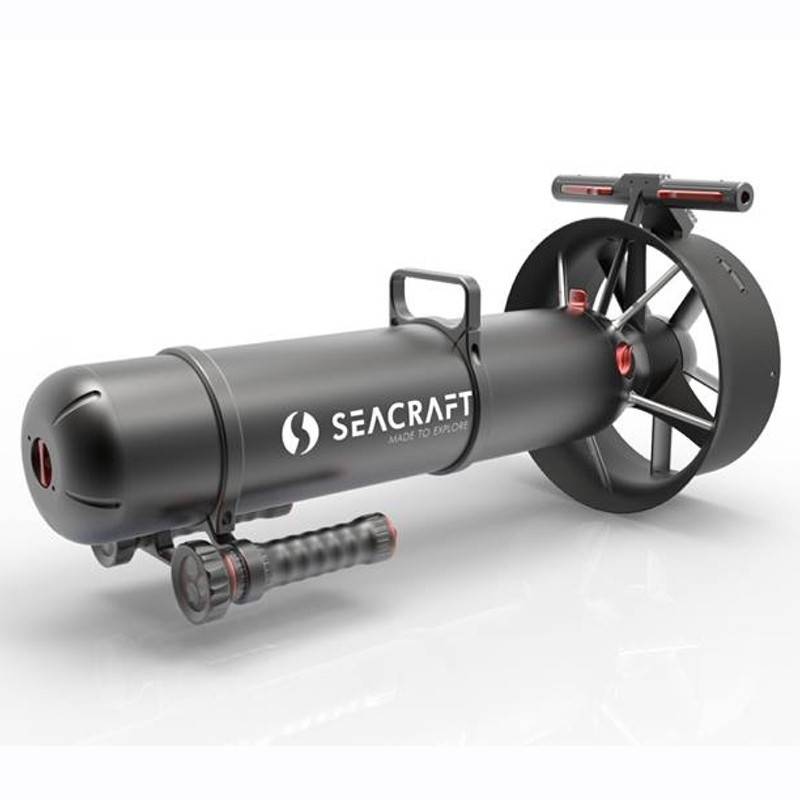

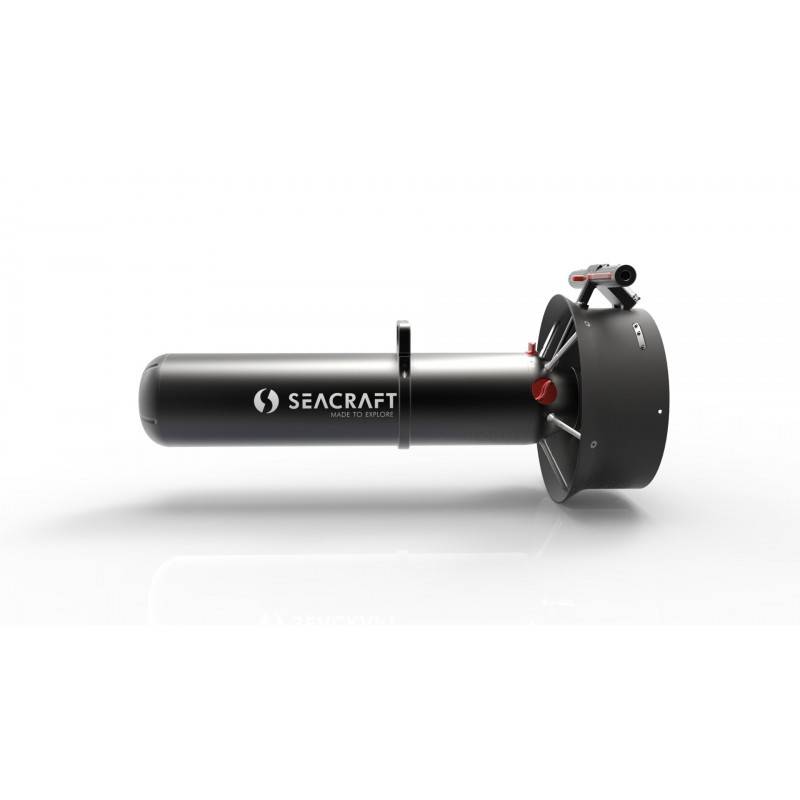

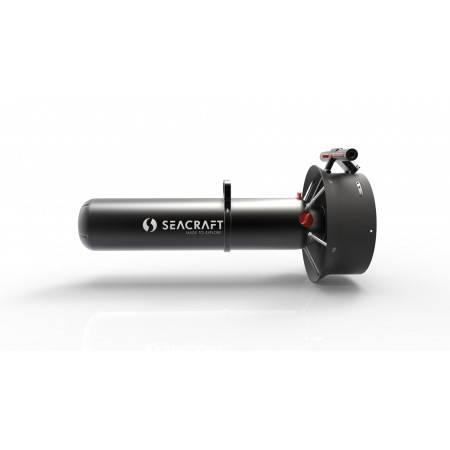

SEACRAFT Future BX800 AIR TRAVEL underwater scooter.

The SEACRAFT FUTURE BX800 AIR TRAVEL underwater scooter is the basic model of the SEACRAFT brand. It includes an 800Wh battery, which allows extended use of the scooter's power, averaging 2-4 dives without charging the battery. This model is perfect for recreational and technical diving, as it is waterproof to a depth of 150 m.

From a technical point of view, the SEACRAFT DPV FUTURE BX800 AIR TRAVEL is the world's first diving scooter in which the motor runs directly in the water. Specially designed and patented solutions allow the complete elimination of the drive shaft and the need for costly and unreliable joints used in other similar designs. It's more durable, more efficient and prevents the risk of motor drowning.

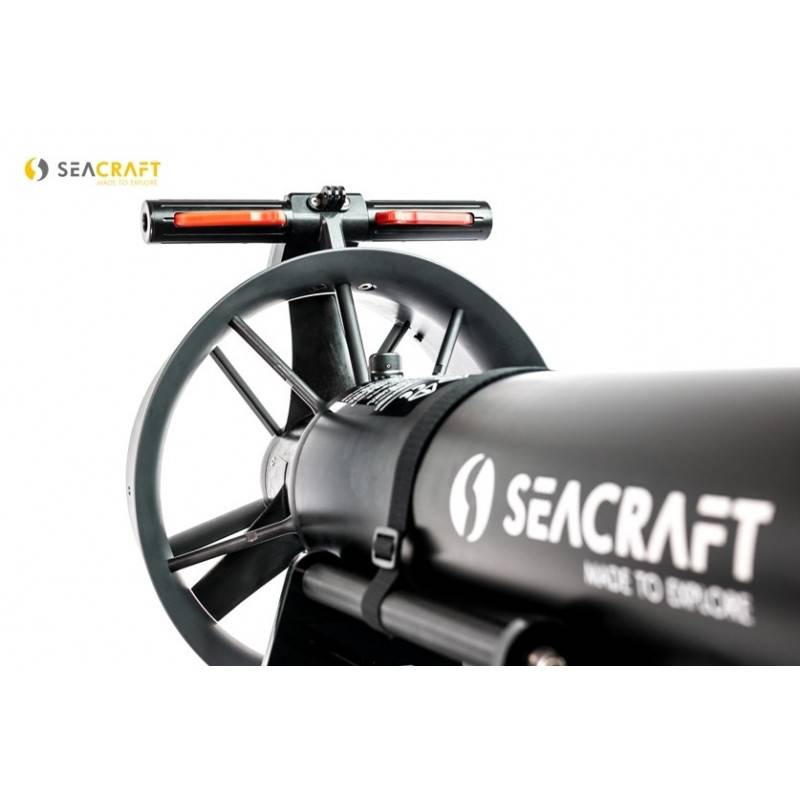

Thanks to the fixed external stator, water column circulation (resulting from propeller rotation) is converted into thrust instead of torque. Torque generation usually results in handle rotation, causing diver fatigue and discomfort.

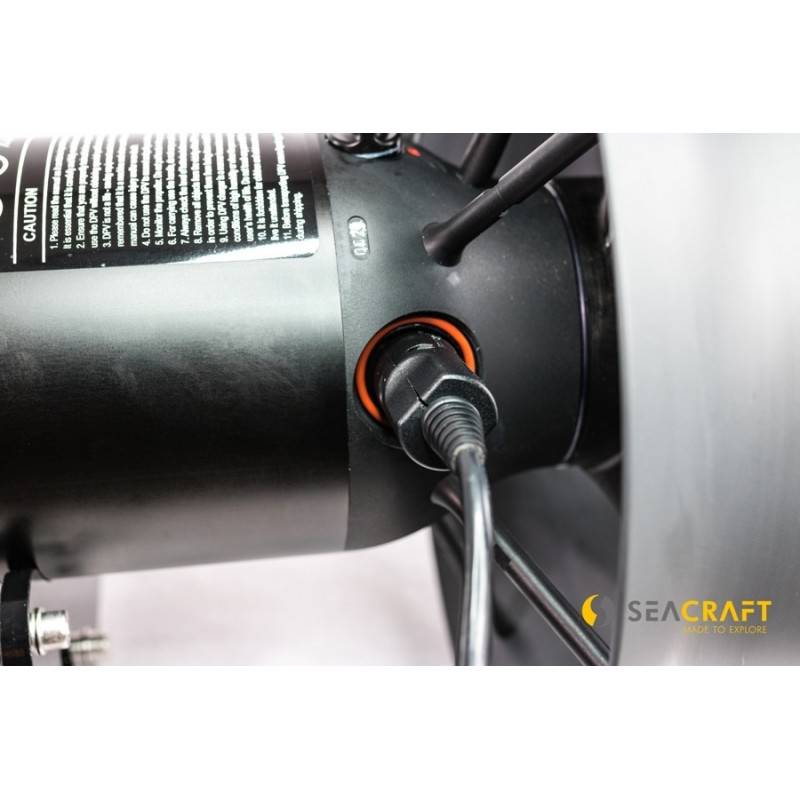

The model's economical design also results in a short battery charging time of around 3 hours. Charging is possible without opening the scooter, as the charging socket is located directly in the unit's housing.

Digital console: the SEACRAFT FUTURE BX800 scooter features an OLED digital display for speed, battery charge status, humidity and engine compartment temperature.

It's the lightest (just 16 kg with battery), fastest and most compact scooter in its class currently available on the market. Its added advantage is the long diving range, achieved mainly thanks to the high efficiency of the drive and the high power of the battery - up to 12km.

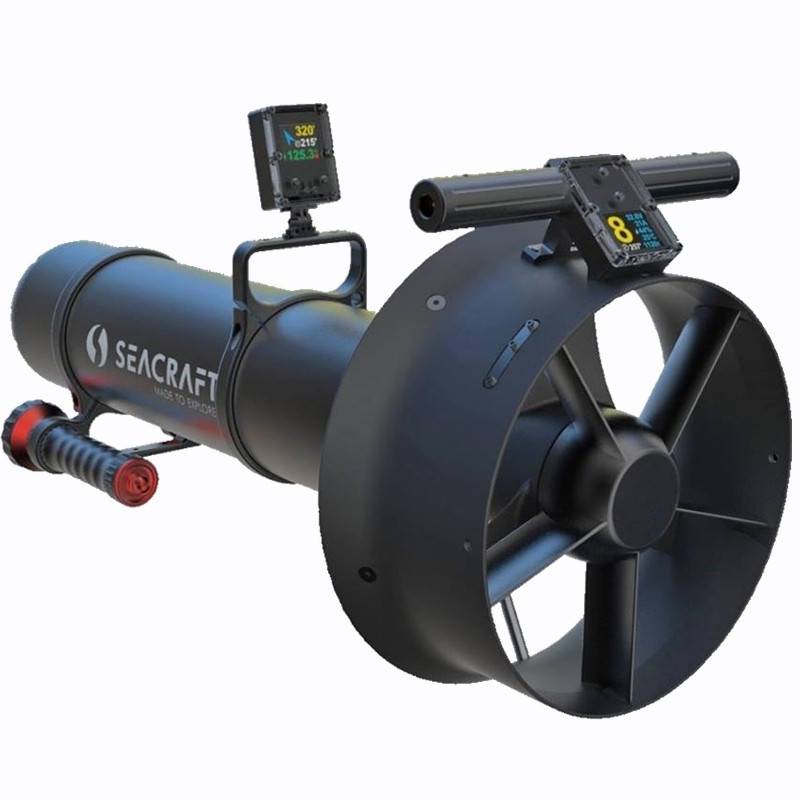

It can also be fitted with accessories such as an ENC3 electronic navigation console, carrying handles, lighting etc....

Technical specifications of the SEACRAFT FUTURE BX850 AIR TRAVEL scooter:

BX800 AIR TRAVEL Motor :

• Maximum operating depth: 150m
• Maximum tested depth: 250m
• Buoyancy (with ballast adjusted): neutral
• Operating temperature: -15°C/+50°C
• Storage temperature: -20°C/+50°C
• Load temperature: +10°C /+40°C

Battery :

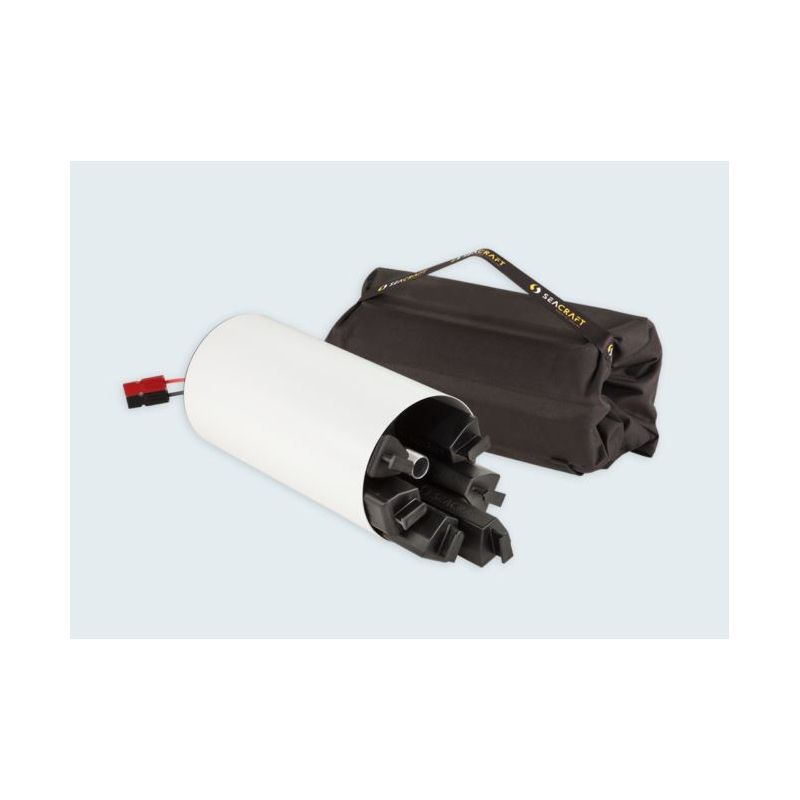

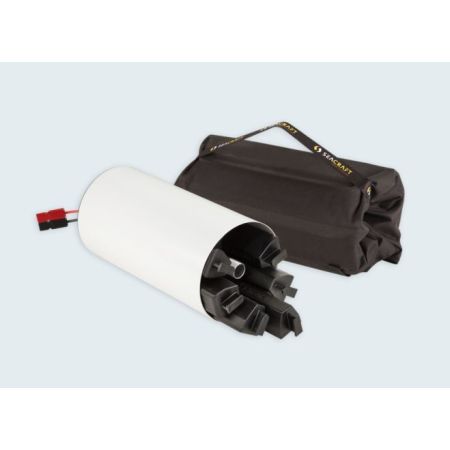

• Li-ion battery: 800Wh
• Nominal voltage: 32.4V
• Average charge time to 75%: 120min
• Average charge time to 90%: 190min
• Average charge time to 100%: 260min

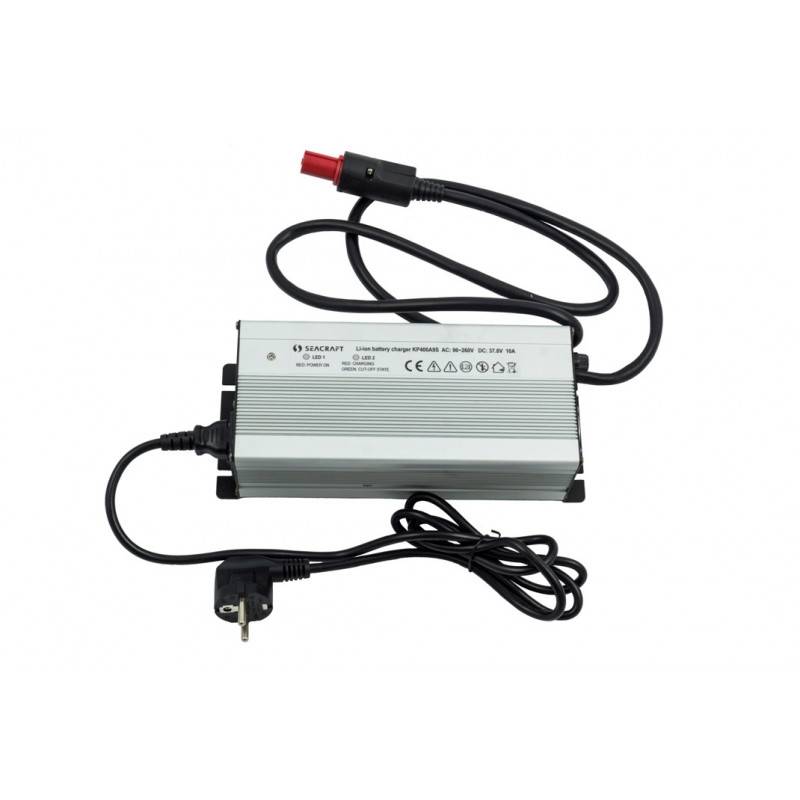

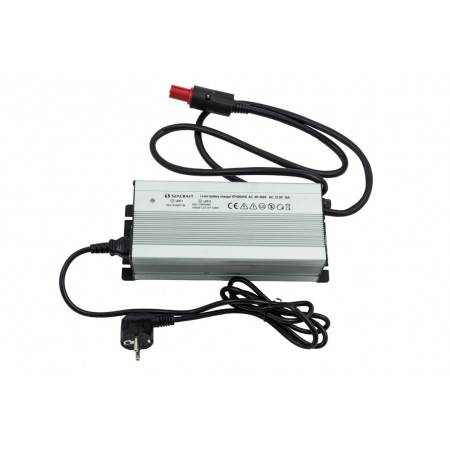

• Charging voltage: 180-250V, 50-60Hz, 240W

Dimensions:

• Length: 845mm
• Width: 360mm
• Height: 410mm
• Body diameter: 160mm
• Weight without battery: 10.5kg
• Weight with battery and freshwater ballast: 16.3kg

OLED display: Indication of the following information

• Current speed
• Percentage of battery charge
• Scooter compartment temperature and humidity.
• Programmable functions for advanced users.

Package contents SEACRAFT FUTURE BX800 AIR TRAVEL

• 1x Scooter FUTURE SEACRAFT BX 800 AIR TRAVEL
• 1x 800Wh battery
• 1x Delrin carrying handle
• 1x universal sport camera mount, attached to control module
• 1x internal ballast kit
• 1x trim kit 3x 62gr pieces
• 1x trim kit 2x pieces 182gr
• 1x 1m80 diving harness
• 1x gasket and grease kit
• 1x service key
