Electronic Navigation Console ENC3 SEACRAFT

Electronic Navigation Console ENC3 SEACRAFT.

No more difficult underwater topography! Thanks to Seacraft's electronic navigation console ENC3, you simply have to fix it on your underwater SECARFT scooter DPV for example and the device will record your route directly in 3D by integrating distance and depth. It also allows you to return to your starting point. It also has an optional speed sensor that will record the distances traveled.

The ENC3 console is recommended for the implementation of complex tasks requiring precision and good orientation.

Seacraft's ENC3 is a revolutionary device, and a single compact and powerful underwater navigation tool available on the market

The console has a number of additional features:

• record the entire route
• distance and changes of direction,
• saves the depth profile,
• saves the location of important points of the route,
• allows the transfer of data to a computer,
• allows you to configure functions,
• has the ability to extend and update the software.04

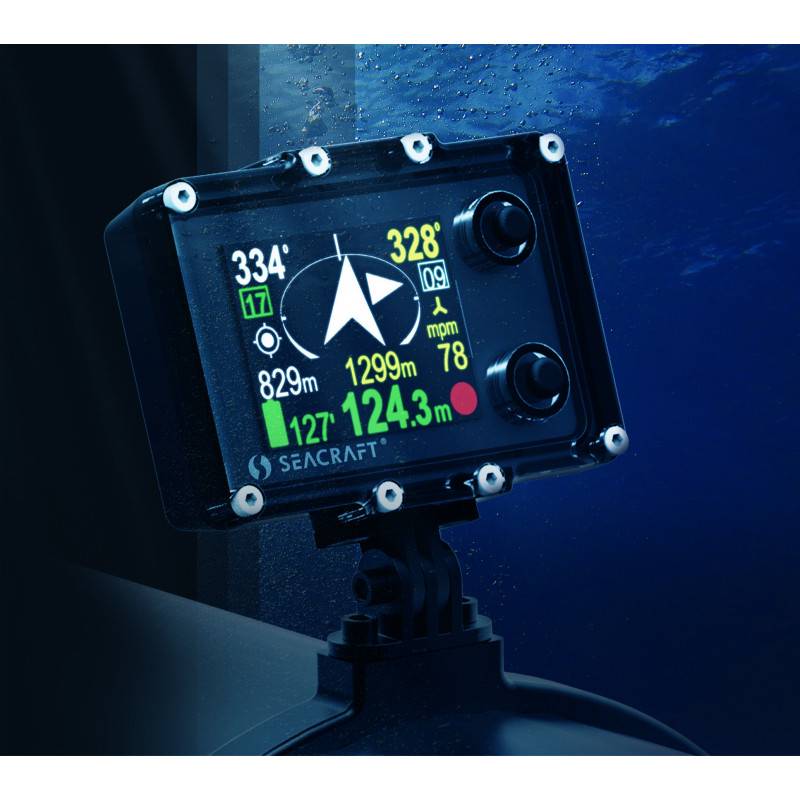

ORIENTATION The navigation console informs the diver of the basic parameters of the dive and indicates: -

• the current depth of the dive,
• the current direction of the movement,
• the time of the dive,
• the time, the temperature of the water.

CONSTRUCTION: Like other Seacraft products, the ENC2 console is a sophisticated professional-grade device:

• Precision engineered construction made of special aluminum alloy,
• case resistant to high depths and impacts, tested to a depth of 350 m,
• a dedicated support for Seacraft DPV,
• dedicated accessories, including DPV from other brands,
• can be used without DPV.06

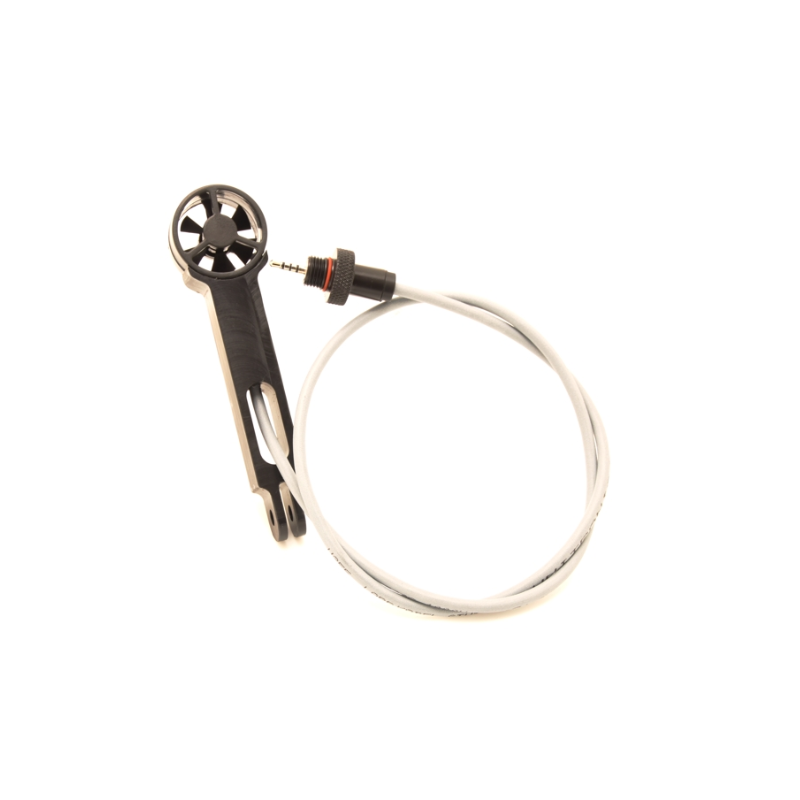

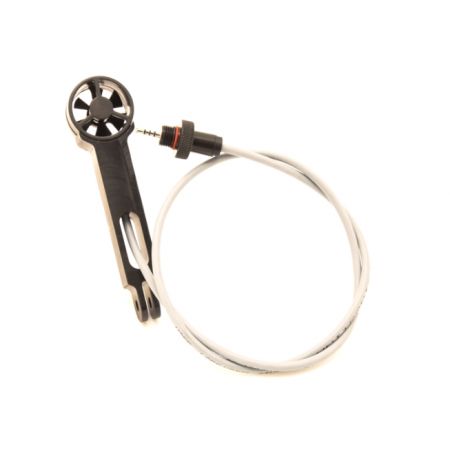

PRECISE SENSORS The device contains precise sensors: 3D magnetometer, 3D gyroscopes 3D accelerometer, pressure sensor, temperature sensor, GPS module (GPS, GLONASS, Beidou), automatic or manual adjustment of the brightness of the screen, TFT screen 2.4 inches with a brightness of 320 cd / m2, built-in 3.7V Li-Ion battery, 5 Wh. Versions with speed and distance measurement are supplied with a dedicated external speed sensor.

Improvements of ENC3 compared to ENC2 :

• Addition of a non-magnetic connector, based on proven gold-plated pins. A much easier and more reliable connection, both for load and speed recording.
• USB connection: Much faster downloading
• Improved self-discharge - Much lower "standby" energy intake.
• An improved IMU module that further improves compass accuracy
• Enhanced screen brightness adjustment in "high" mode - can increase brightness by about 10% for operation in direct sunlight.
