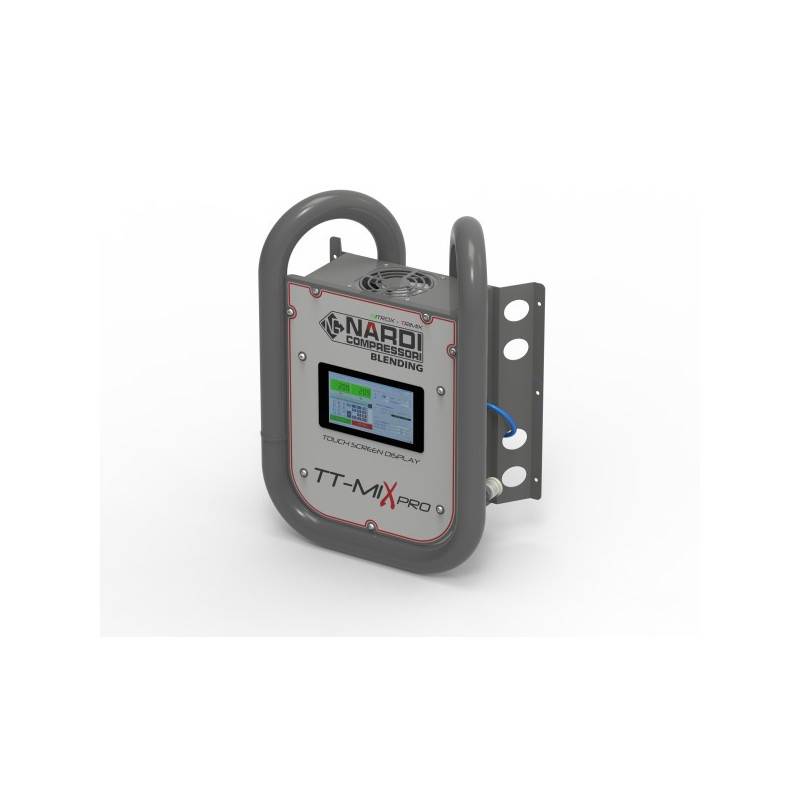

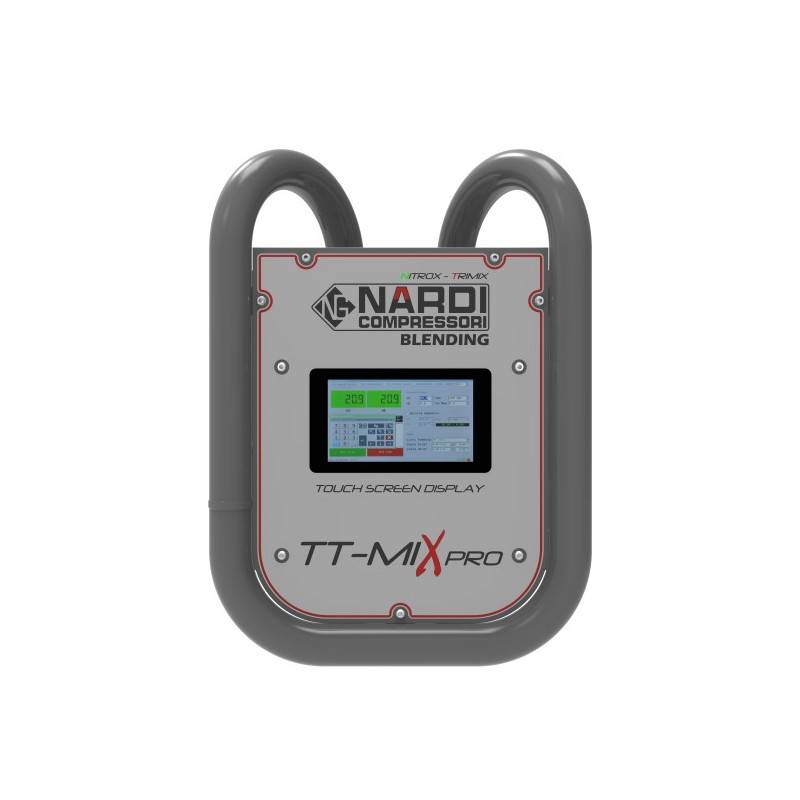

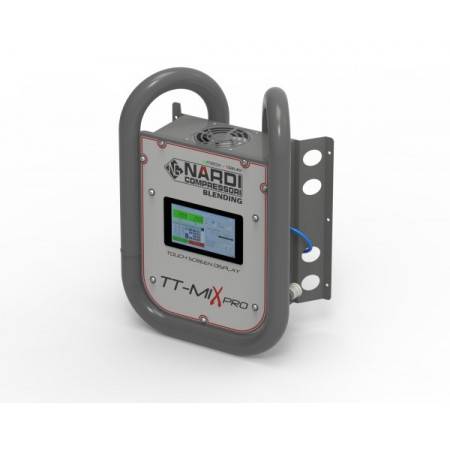

Automatic Nitrox Trimix blender NARDI TT-MIX PRO

NARDI TT-MIX PRO fully automatic Nitrox and Trimix stick blender

The NARDI TT-MIX PRO is a technological marvel. It is a device to make your Nitrox or Trimix mixes automatically and safely.

The TT-MIX PRO is a gas mixer more commonly called stick. It has been designed to perform the functions of stick nitrox and stick Trimix for the filling of diving tanks with these mixtures.

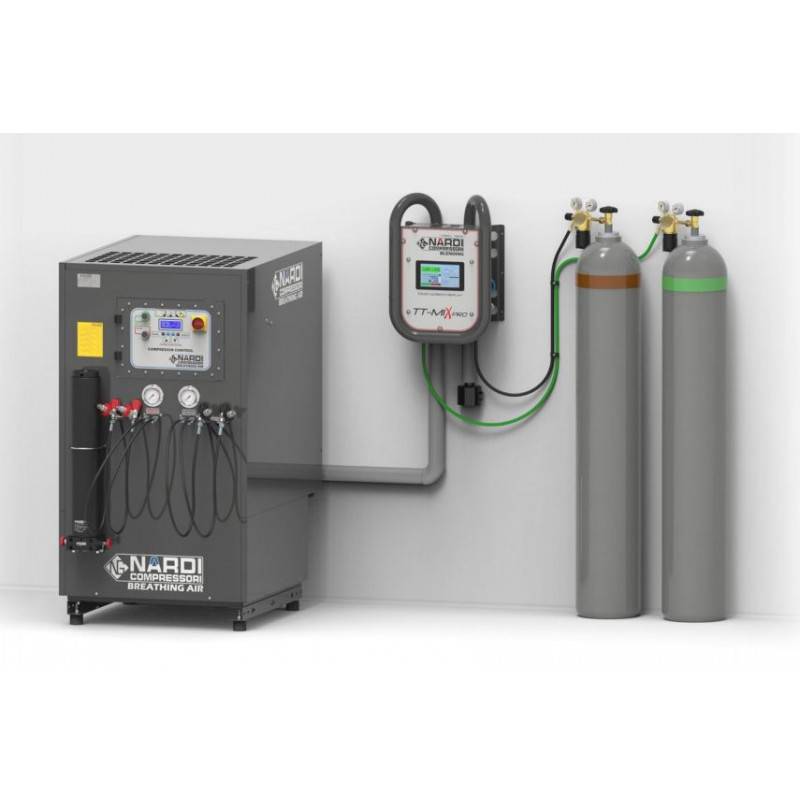

It is fully automated, i.e. its control panel allows the user to program the mixture, the filling will be automated until the compressor stops. If the compressor is a Nardi, the connection for stopping the TT-Mix Pro in the event of compressor shutdown is provided in the electronic boards of Nardi compressors. For other brands, a relay with a dry contact must be added.

The TT-MIX PRO is equipped with two oxygen cells for continuous monitoring. It is equipped with a patented gas pressure and flow control system. If the mixer detects a malfunction during use, it will immediately stop the flow of oxygen to the compressor.

It is also equipped with a relay which, connected to the compressor motor, stops the mixer in case the compressor motor stops.

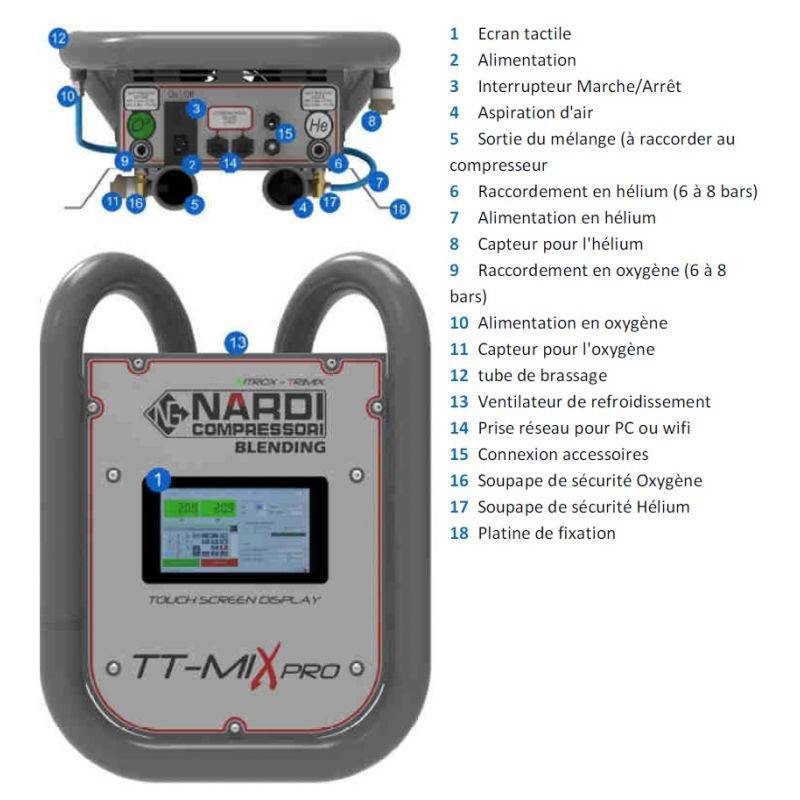

It has two inlets, one oxygen and one helium, and is connected to the oxygen and helium cylinders with a pressure of 6 bar. The mixer takes care of the rest.

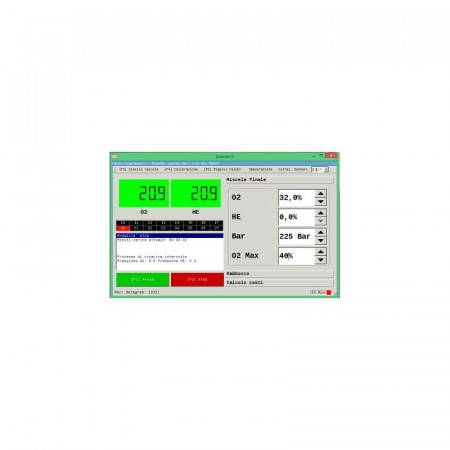

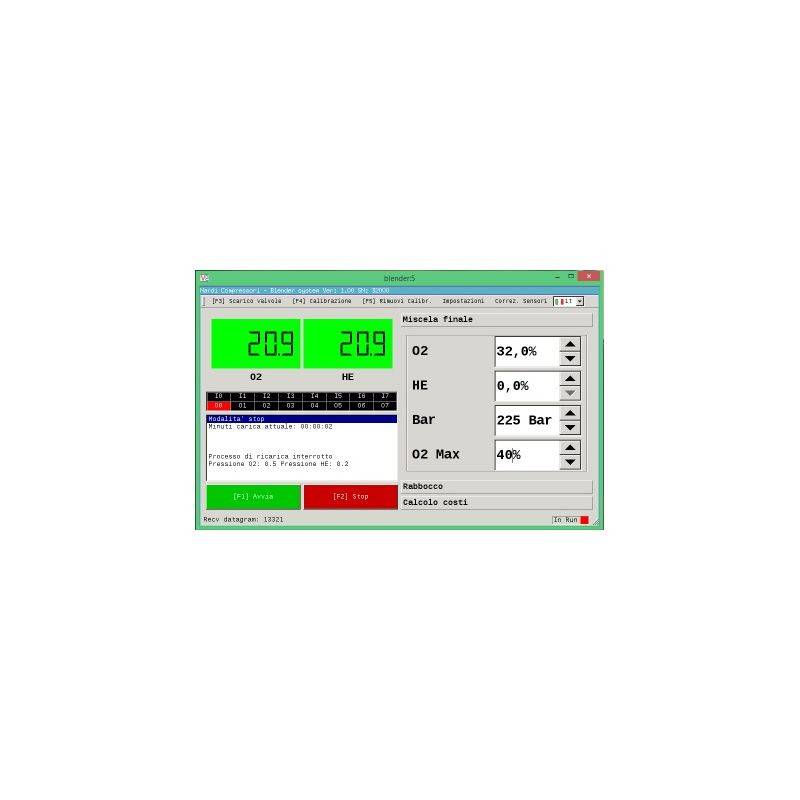

It is also possible to remote the screen to a tablet, a smartphone or a PC or MAC for remote supervision.

Technical characteristics of the TT-MIX PRO nitrox trimix stick

• Gases : nitrox and trimix
• Flow rate: from 3 to 51m3/h
• Materials of internal parts: stainless steel
• Power supply: 230V 50/60Hz
• Power consumption : 300W
• Weight: 13.5kg
• Dimensions : 56x41x21

TT-Mix kit version with accessories:

The TT-Mix Pro can be sold as a kit with accessories including:

• The TT-Mix
• Electrical pre-wiring
• Brass fittings
• Oxygen pressure regulator
• Helium pressure regulator
• 4m long connection hose with a diameter of 40mm
