Diving compressor NARDI ATLANTIC 6m3 220V electric

Compresseur NARDI ATLANTIC 6m3 220V électrique

NARDI

Diving compressor NARDI ATLANTIC 6m3 220V electric

Name: Diving compressor NARDI ATLANTIC 6m3 220V electric
Brand: NARDI
SKU: NARDI - ATLANTIC 6m3 220V
Price: 3399 EUR
Availability: InStock

€3,399.00

Tax included Expédition sous 5 jours

Price excluding tax / DOM-TOM €2,832.50

Reference : NARDI - ATLANTIC 6m3 220V

Portable diving compressor NARDI Atlantic. Ideal for individual divers or sailboats.

Flow rate of 6m3/h or 100L/min.
220V Electric Motor
Purge and auto shut-off option
Choice of 225bar or 300bar version

Type

Automatism

Compressor outlet option

Shipping

Free Shipping From 89 € for France * * See conditions

Product return & exchange 14 days to change your mind

24/7 support 24/7 customer return guaranteed

100% secure payment By credit card, bank transfer, PayPal or check

Diving compressor NARDI ATLANTIC 6m3 220V electric

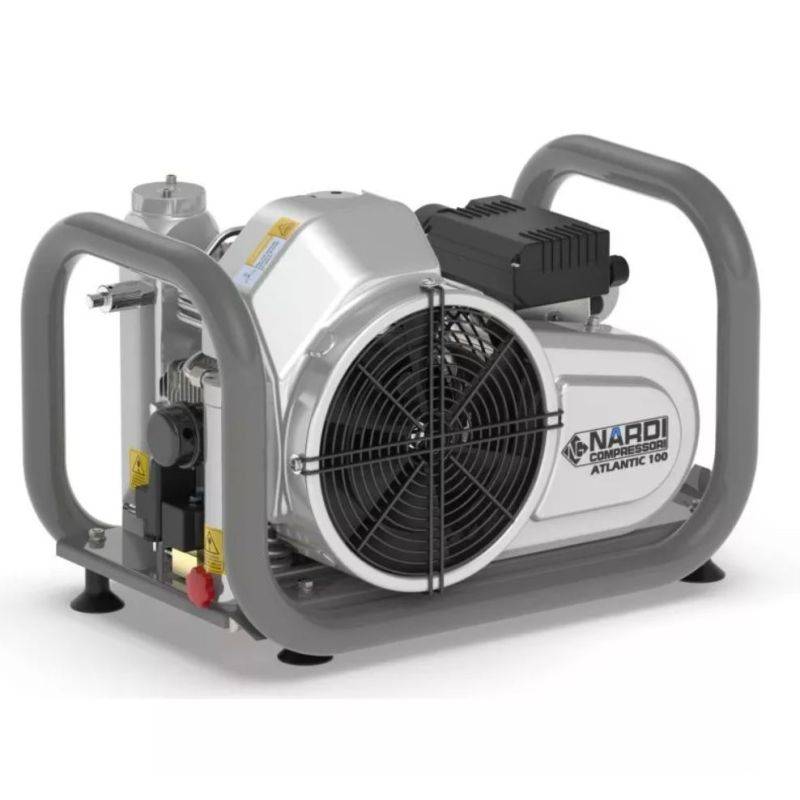

Diving compressor 6m3/h NARDI Atlantic

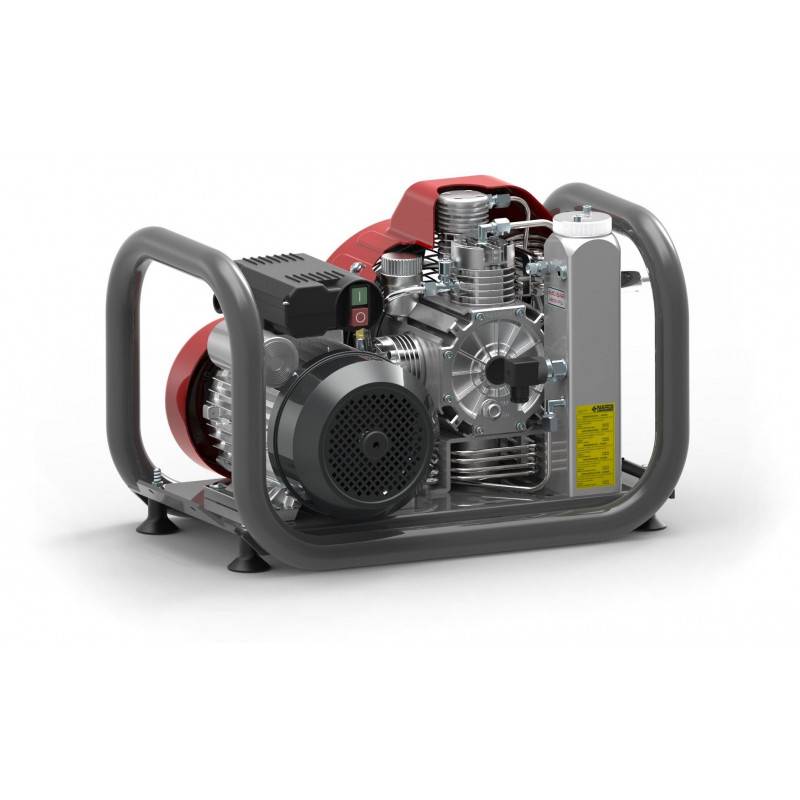

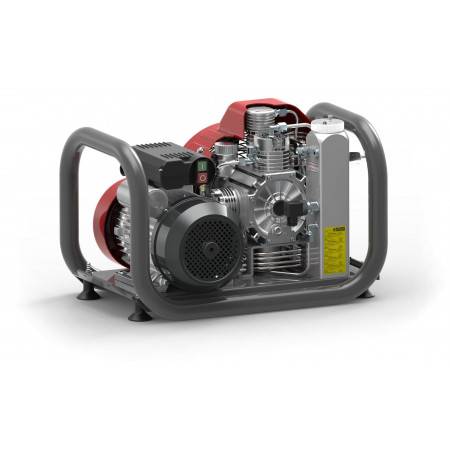

The NARDI Atlantic diving compressor is a portable compressor that has been designed for the individual diver or itinerant diver like on a sailboat.

It benefits from a technology that has been proven for almost 15 years using a 4-stage engine block. Lubrication is by splash lubrication.

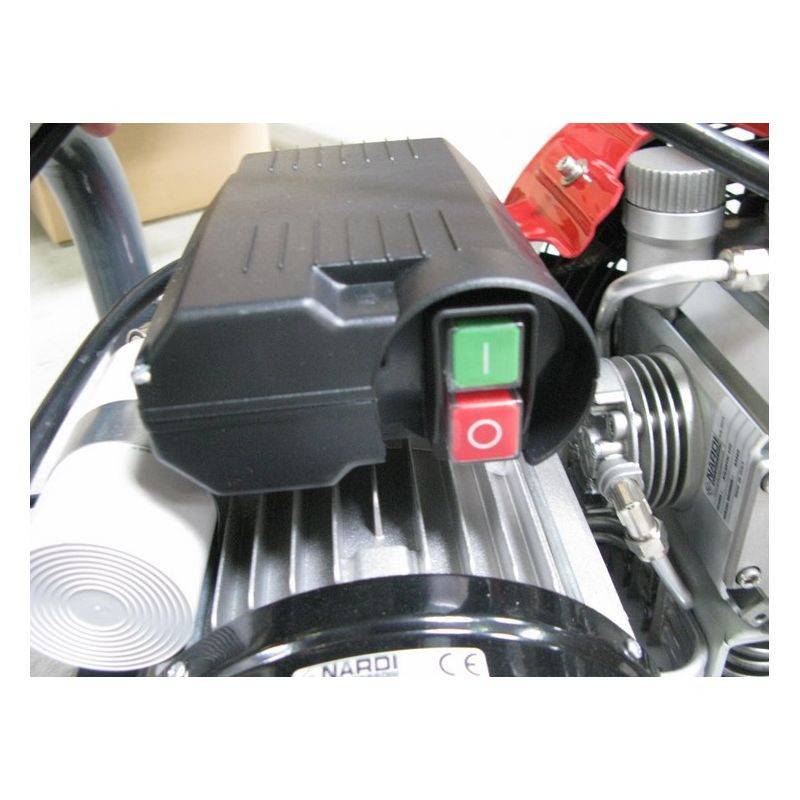

On the motor side, it has a 220V/50Hz electric motor which allows it to be connected to the mains with a minimum power of 6kVA.

The integrated breathing air filtration meets the latest standards in force via an interchangeable cartridge.

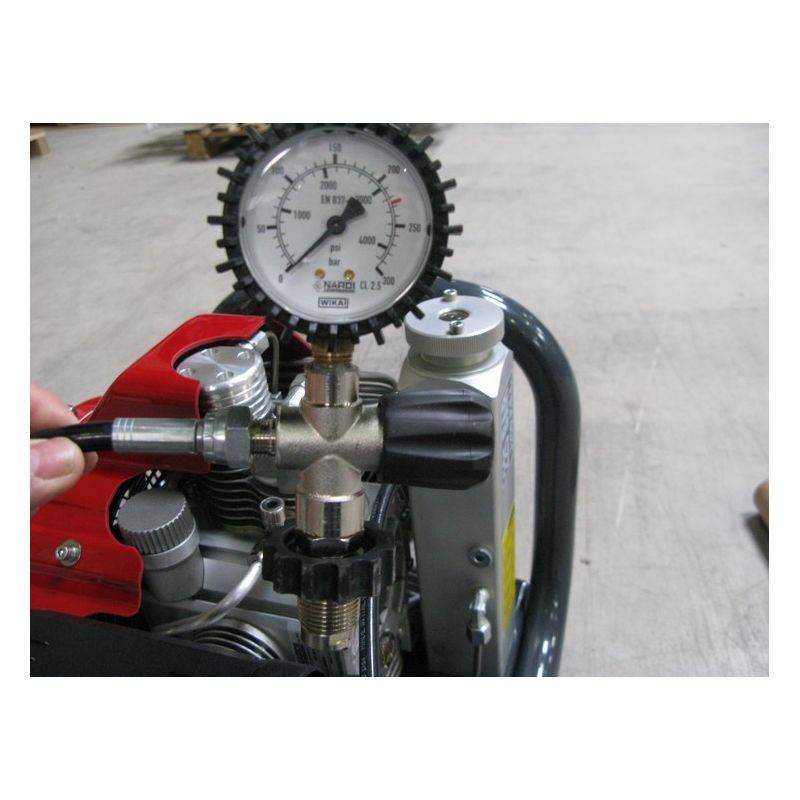

It is available to order in 225bar or 300bar versions. Please note that the 300bar version is supplied with a DIN300bar connection.

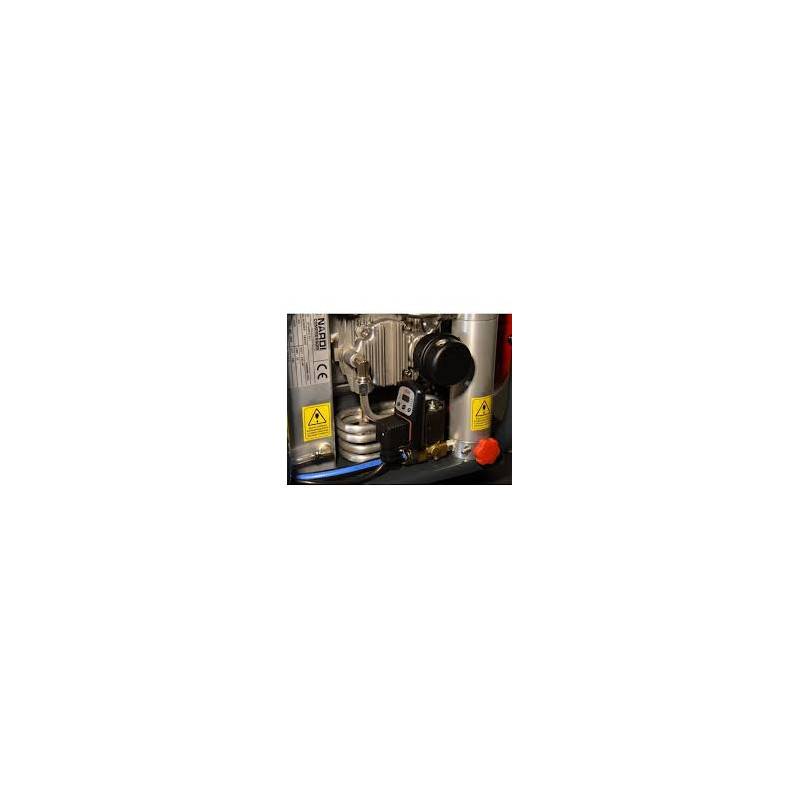

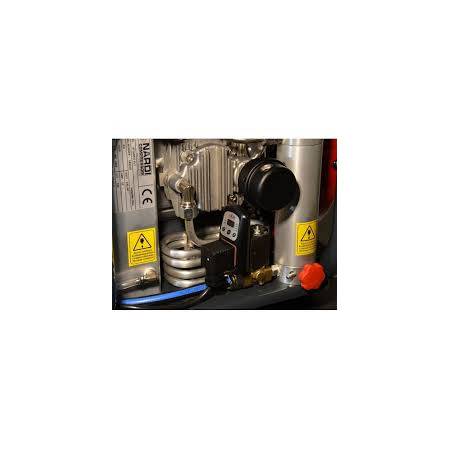

An automatic purge and shut-off version is available as an option.

It is intended for breathing air inflation but not for Nitrox inflation.

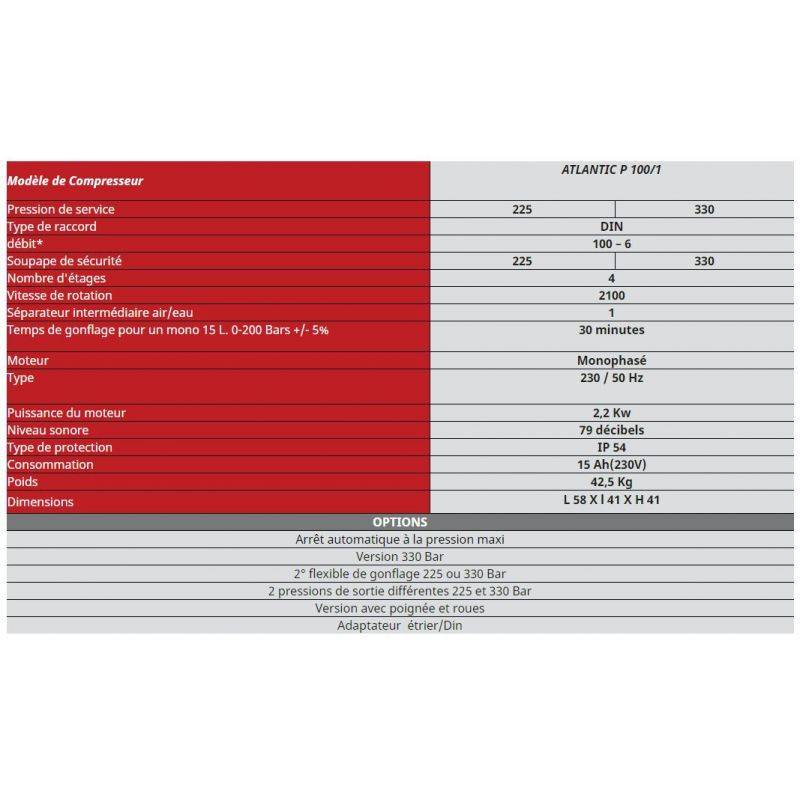

Characteristics

*Model Compressor*	*Name – Nome*	*ATLANTIC P 100/1*
Working Pressure	PN	200/300
Charging rate*	L/min. – m3/h – cfm	100 – 6 – 3,5
Safety Valve Pressure	Bar – Psi	225 – 3200
Compressor block	Name – Nome	ATLANTIC 100
Number of stages	N°	4
Number of connecting rods	N°	4
Pressure 1st Stage	Bar / Psi	3 / 43
Pressure 2nd Stage	Bar / Psi	15 / 217
Pressure 3rd Stage	Bar / Psi	65 / 942
Pressure 4th Stage	Bar / Psi	225 / 3200
Compressor Block Oil capacity	Liter – Litri	0,35
Speed Compressor	r.p.m.	2100
Environment working temperature	°C / °F	From +5°C to +45°C / From +41°F to +113°F
Max inclination of compressor	Degrés	5°
Altitude maximale de fonctionnement	Metre/ Feet	2000 m / 6560 Ft
Power pump weight	Kg. / lb	10 / 22
