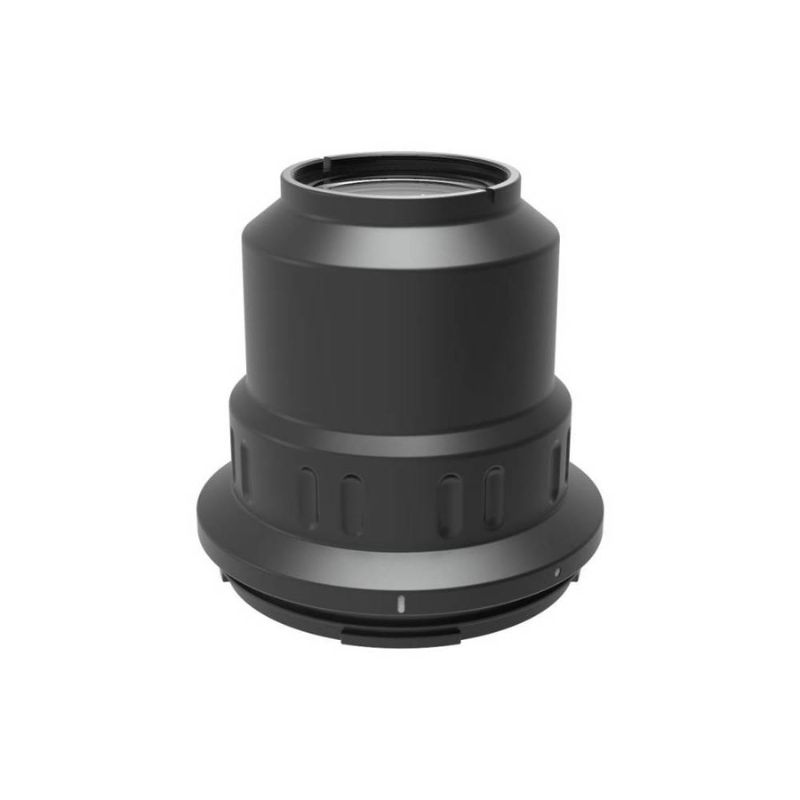

MARELUX 104 Underwater Macro Viewport

This technical port, made from anodised aluminium and optical glass, is designed to protect your macro lenses used for photographing small marine life. It ensures absolute watertightness and perfect pressure resistance during dives to depths of up to 150 metres. Its internal design eliminates chromatic aberrations and preserves light transmission, allowing you to capture the finest details of even the tiniest subjects. Thanks to the Series 5 mounting system, installation on your camera body is smooth and secure before entering the water.

Technical specifications for MARELUX 104 Underwater Macro Viewport

• Body material: aluminium alloy with hard anodised finish.
• Front lens made from high-quality glass for maximum clarity.
• Hydrostatic pressure resistance individually tested to 150 metres.
• Series 5 mounting system ensuring a mechanical lock with no play.
• Port opening diameter of 110 mm to accommodate the lens.
• Overall external dimensions of 135 mm in diameter and 132 mm in length.
• Total weight out of the water measured at 558 grams.
• High-visibility fluorescent green O-ring to detect grains of sand or hair.

Diveavenue's expert opinion for

MARELUX 104 Underwater Macro Viewport

The Hublot Macro 104 is the accessory we tested for you during photo shoots focusing on small marine life. What I particularly like is the quality of its optical glass, which shows no distortion at the edges of the image, even when the magnification is set to maximum. The aluminium finish is exemplary, and the fluorescent green seal remains a major selling point for setting up your gear with peace of mind on the deck of a boat without risking water ingress. Its compact size allows you to get very close to the substrate without scaring shy subjects such as nudibranchs or shrimp

Frequently Asked Questions (FAQ)

Is it possible to fit this porthole to cabinets from other brands ? The viewport uses Marelux’s native Series 5 system, but it can be fitted to rival housings such as Nauticam using the brand’s optional adapter and conversion rings.

Do the lenses have an anti-reflective coating ? Exactly: the front glass lens features a technical coating that reduces internal reflections and maximises contrast, which is particularly useful when using flashes or a snoot for side lighting.

How to maintain the porthole after a series of dives ? The glass must be rinsed thoroughly with fresh water for several minutes to dissolve the salt, then dried with a soft microfibre cloth without rubbing too hard to avoid causing micro-scratches.
