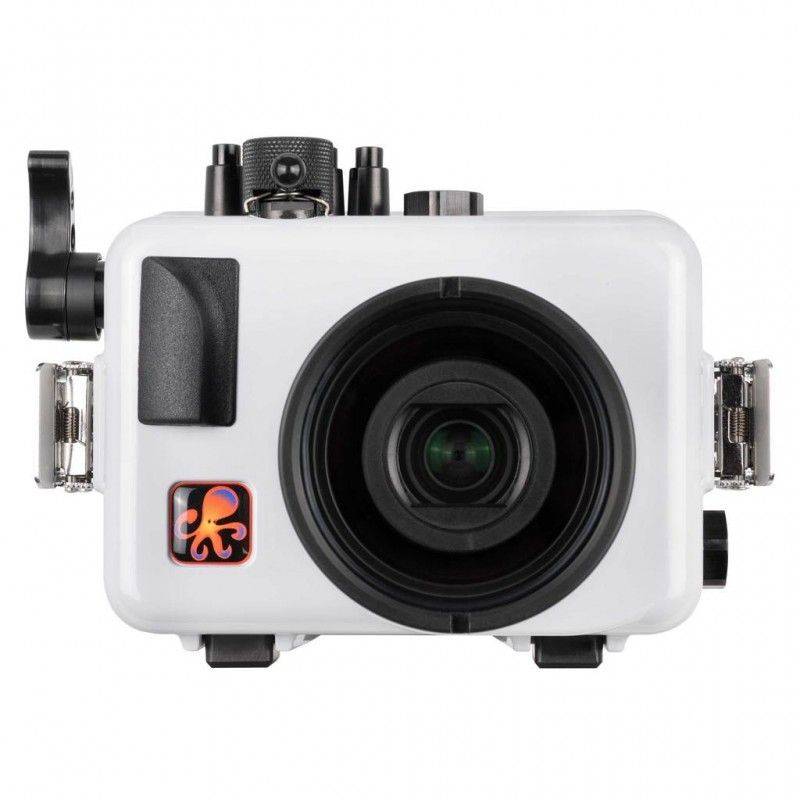

ZV-1 IKELITE housing for SONY ZV-1

Compact housing, waterproof to 60 meters, for SONY ZV-1 camera

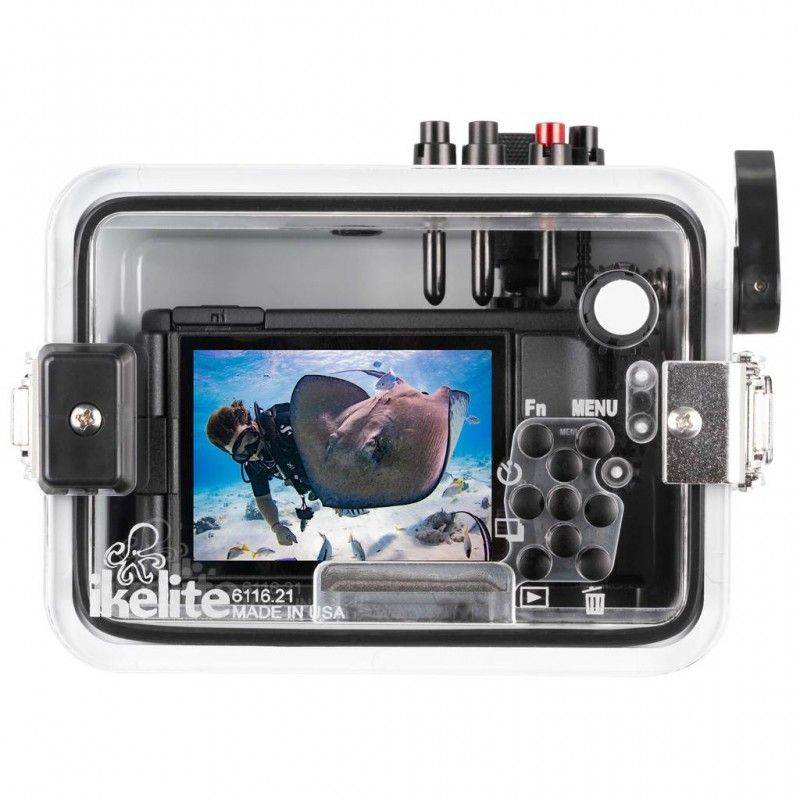

• Newly designed grey polycarbonate housing with transparent back door allowing verification of the correct position of the camera body and control levers in the housing; very resistant, it is tested and usable up to a depth of 60 meters. The specially formulated gray color reflects the sun's rays to keep the camera cooler over time. Compared to black or clear housings, the gray color provides superior contrast for better viewing of the LCD screen.
• The rear door seal is always visible to ensure a good seal when closing the door. Security is thus reinforced! The rear door is closed by 2 stainless steel frogs with safety locks.
• The rear buttons are marked with an unalterable laser engraving.
• The depth of use of 60 meters, combined with the reputation of the brand, offers these housings a real safety margin for the user.
• The numerous possible accessories make it perfectly scalable...
• New ergonomic trigger control, zoom control mounted on a return spring, side plug for installation of a vacuum pump (sold as an option).
• Optional external flash socket with B1A 46002 and C1 46071 to connect an external flash like DS51, DS160, DS161 or other flash with sync socket.

Delivered with

• Double fiber optic holder
• A 1cc grease cup
• A vinyl protection of porthole
• A 1/2-20 plug to install a vacuum pump (sold in option).
• Instructions in English (instructions available in French in the "download" section of this product sheet)
• Ikelite USA warranty

Accessible controls:

All camera controls are accessible with this housing except the touch screen.

Housing delivered bare, without camera

Technical specifications:

• Height: 12.7 Cm
• Width: 17.3 Cm
• Depth: 13.7 Cm
• Weight: C1 Kg
• Depth of Use: 60 Meters
• Material: ABS-PC
• External Flash Connection Type: Fiber Optic
• Camera Brand: SONY
• Camera Body Size: Compact
• Housing Seal: IKE 0109
• Humidity Sensor: NO
• Vacuum Pump: Optional: 1/2" Model
• Buoyancy: Slightly Negative

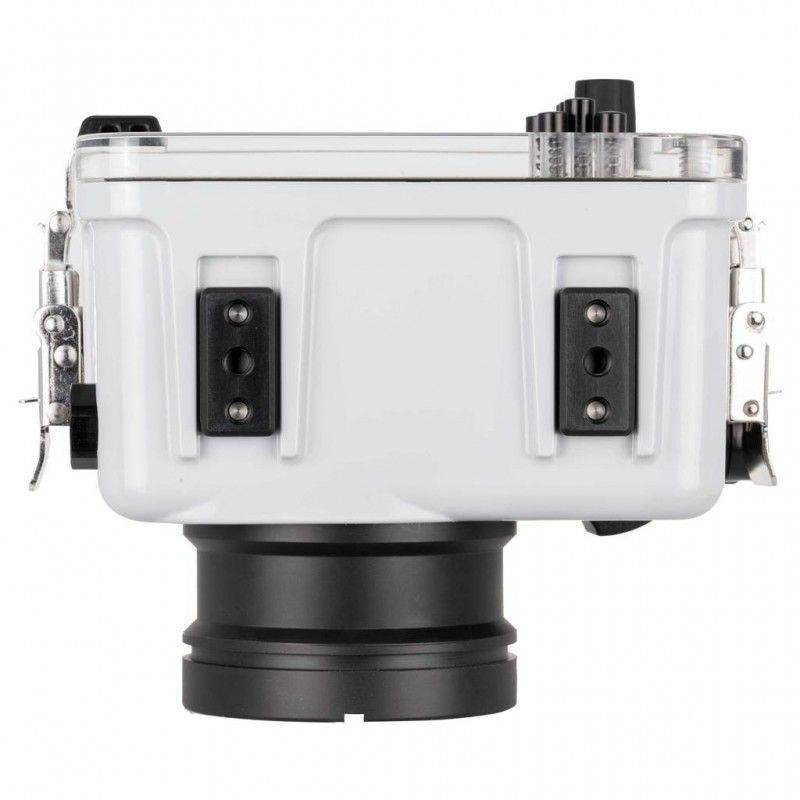

• Turntable Mounting Type: 2 x 1/4-20 (Kodak Pitch) screw mounts spaced 76mm apart
• Accessory Bracket On Housing: NO
• Photo-Video Accessory Mounting Plate: OPTIONAL
• Viewport Diameter: 3.0 - 67mm thread
