AOI Box UH-EPL10 For OLYMPUS EPL-10

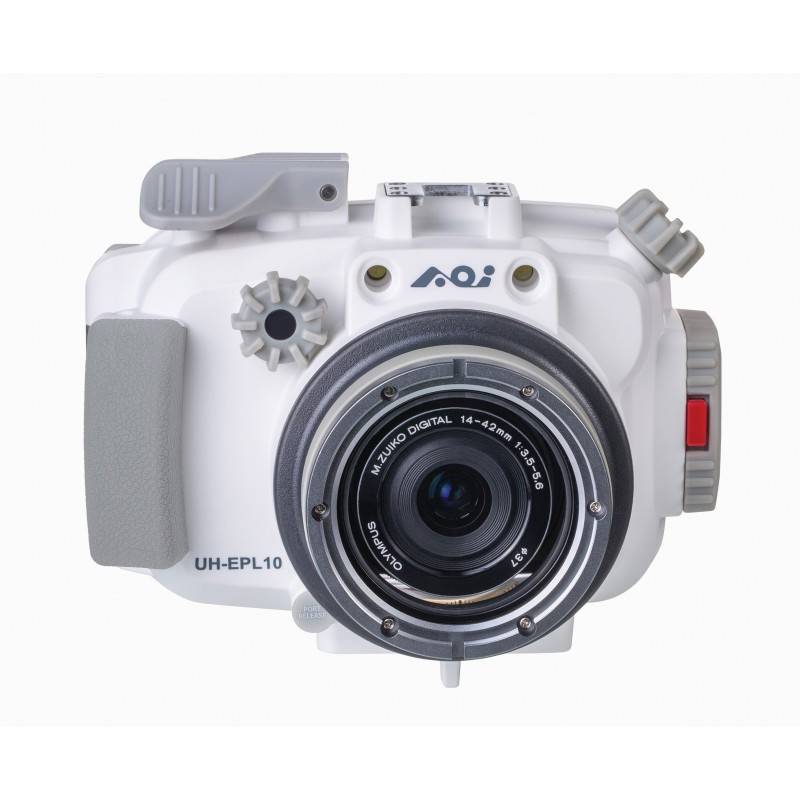

AOI UH-EPL-10 white housing for OLYMPUS EPL-9 and EPL-10 camera with 14-42mm Zuiko lens

The underwater houding AOI UH-EPL10 for the Olympus PEN E-PL9 and E-PL10 cameras allows you to get the most out of your underwater photography system at a great price! It is robust and durable, yet lightweight and compact. Designed specifically for the successful Olympus PEN camera series, the AOI UH-EPL10 is the ideal underwater companion for your camera, allowing you to get the most out of your camera with comfort and ease.

The ultra-compact flat window (AOI FLP-06) comes standard with the housing and can be removed for cleaning, inspection and lubrication of the lens port O-rings (AOI POR-02).

The UH-EPL10 diving housing is designed to grow with your needs and skills. Whether you attach a wet lens (wide-angle conversion lens or close-up lens) directly to the front of the lens port or use dedicated camera lenses (wide-angle lens, Fisheye lens or macro lens) on the camera. A wide range of compatible Olympus camera lenses, AOI lens ports and AOI wet lenses are available to meet even the most demanding underwater photographers.

The housing is pre-installed with the optical flash trigger in the multi-control device. This feature extends camera battery life by not using the built-in camera flash to trigger the external underwater flash. The housing is equipped with two fiber optic cable ports and they are compatible with fiber optic cable with SS cable plug or other brands of fiber optic cable using the Sea & Sea plug standard.

With additional vacuum protection, it is practical, yet ergonomic and stylish.

Ready to get out of the box and ready to use, it is as easy to handle as a compact camera but with extra features to enable professional level photography.

Comes with

• One housing for EPL-9 and EPL10
• A Porthole for 14-42mm Zuiko f/3.5-5.6 EZ lens
• Double fiber optic support
• A flash diffuser
• Removable flexible screen protector
• System for attaching accessories by rail to the top of the housing
• Spare door gasket
• A door seal removal tool
• A screwdriver for mounting an optical fiber (not included)
• A tube of grease

Technical data sheet

• Height: 12.8 Cm
• Width: 16.6 Cm
• Depth: 13,5 Cm
• Weight: 740 Grams (excluding water)
• Depth of Use: 45 Meters
• Material: Molded Polycarbonate
• External Flash Connector Type: Fiber Optics
• Camera Brand: OLYMPUS
• Gasket Waterproofing Casing: Double Gasket
• Moisture Detector: YES
• Mounting Type For Plates: 3 Screws 1/4-20 (Kodak Pitch) For Mounting With One Center Screw Or 2 Screws
• Accessory Support On Case: By Shoe / Rail On Top Of Case

Accessible controls:

All the essential controls of the camera are accessible on this housing.
