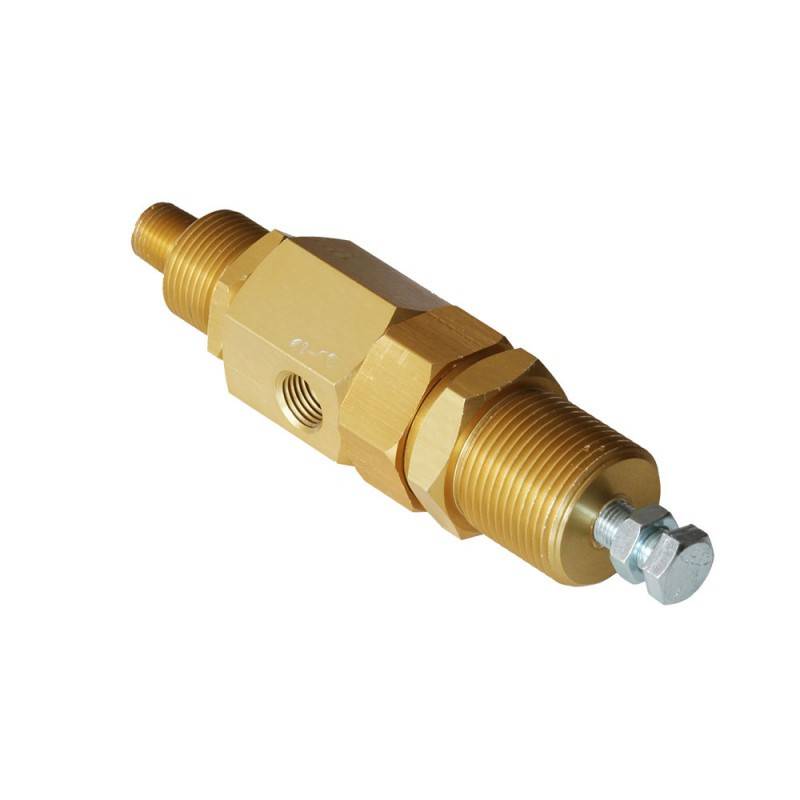

High Pressure Reducing Valve 414 bars

Compact, manually adjustable pressure regulator for use on group 2 gases (air, nitrogen, helium ...)

Simple and robust design, the sealing seat is protected by an integrated filter.

The set pressure can be locked by means of a lock nut.

Technical data:

• Order No.: SC000329/RID
• Type: Piston type pressure regulator
• Working pressure: 6000 psi (414 bar)
• Outlet pressure: 50 - 6000 psi (4 - 414 bar)
• Inlet connection: 1 inlet 1/4" NPT male
• Outlet connection: 1 lateral outlet 1/4" NPT female
