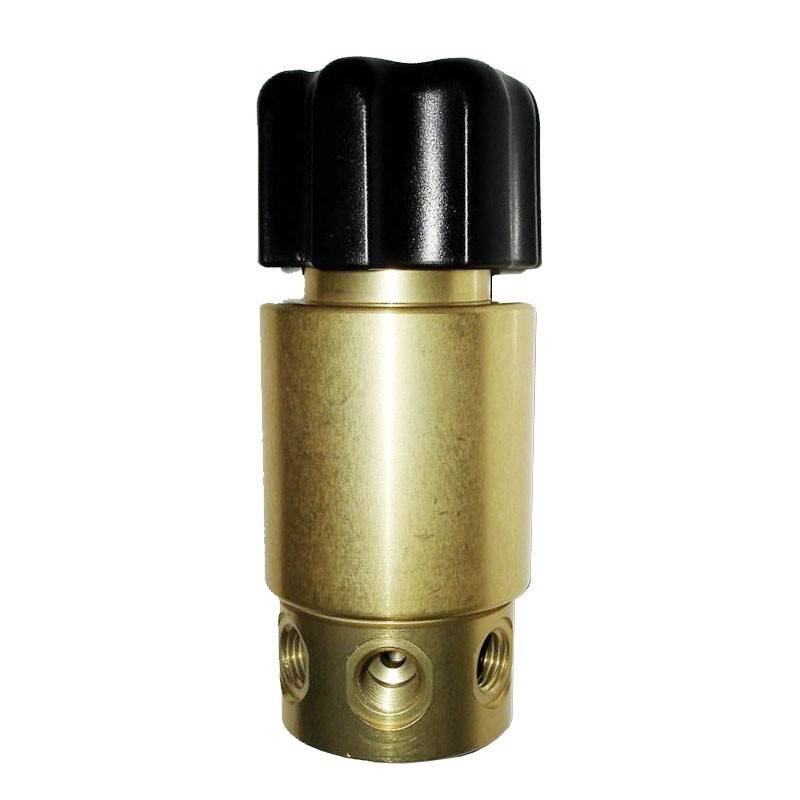

High Pressure Reducing Valve 414 bars Adjustable

COLTRI 414 bar HP regulator adjustable

Compact, manually adjustable pressure regulator for use with group 2 gases (air nitrogen, helium, etc.).

Simple and robust design, the sealing seat is protected by an integrated filter.

The TEK207000 regulator comes with inlet and outlet threads as standard to accommodate pressure gauges.

Technical data:

• Order No.: TEK2G000
• Type: Piston type pressure regulator
• Working pressure: 6000 psi (414 bar)
• Outlet pressure: 50 - 6000 psi (4 - 414 bar)
• Inlet connection: 2 inlets 1/4" NPT female
• Outlet connection: 2 outlets 1/4" NPT female
• Seat material: KEL-F Viton
• Flow coefficient ( Cv): 0.06
• Weight: 725 g
• Minimum temperature: -15°C

Compatible accessories:

• Locking Cap TEK20755
• Mounting flange for panel mounting TEK20750
• 1/4" male NPT plug

Maintenance:

• Maintenance Kit TEK20760
