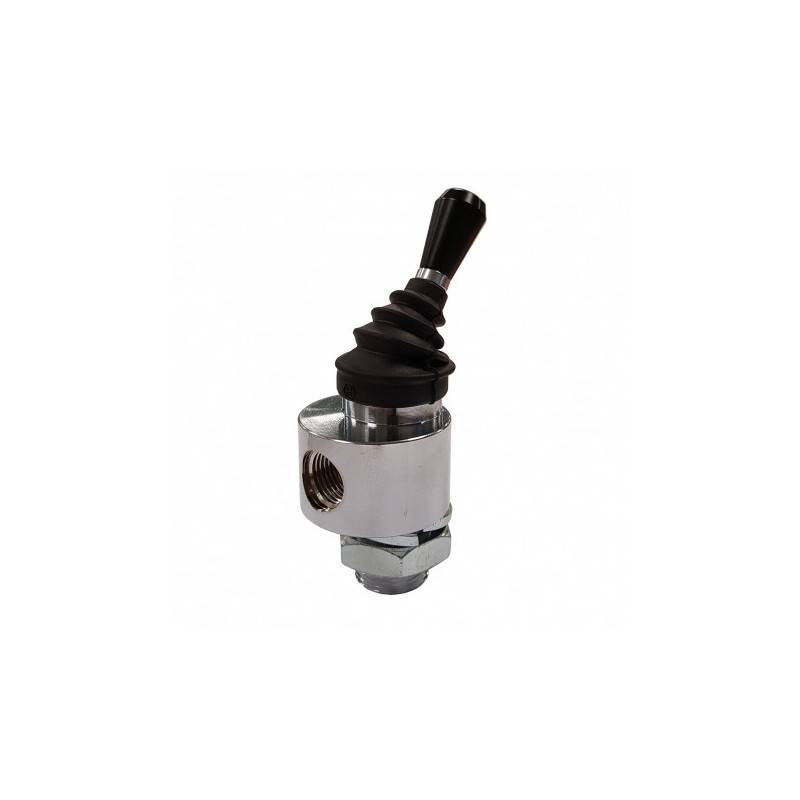

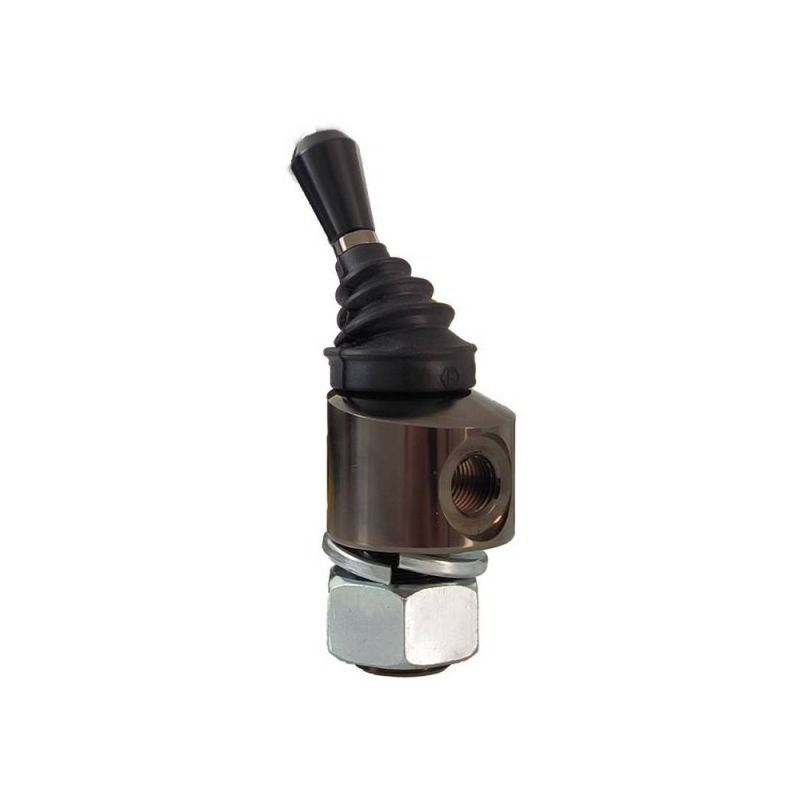

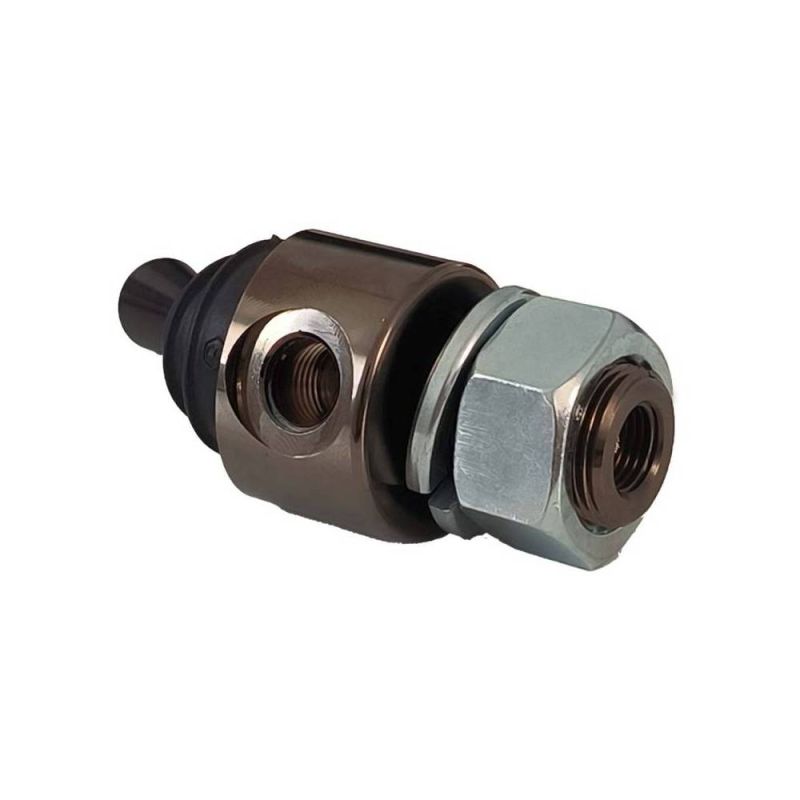

High pressure valve 350bar with lever for compressor
HPC-006
Compressors, H.P inflation valve with 350 bar lever
COLTRI 3-way chrome-plated high-pressure valve with built-in purge for all types of inflation ramps.
Ideal for connecting a hose and a safety whip valve loading connection.
Technical characteristics :
- Operating pressure: 350 bar / 5000 Psi
- Input connection: 1/4 "BSP female
- Output Connection: 1/4 "BSP Female
- Bulkhead passage for panel mounting: Diameter 22 mm
- Integrated purge valve
- Lever inflation valve
- Note that there is no seal kit for these valves
