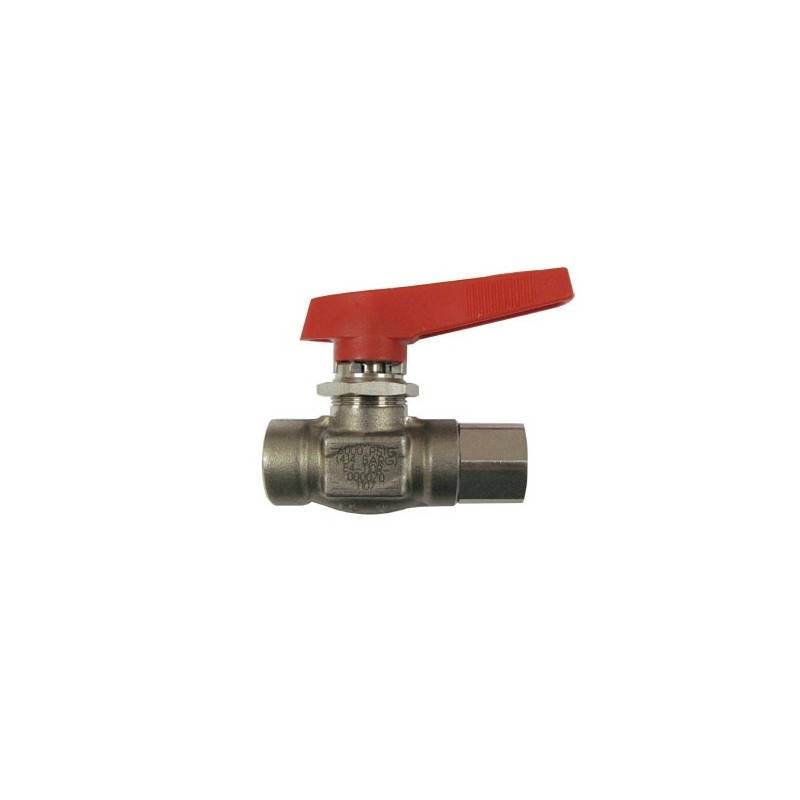

HP stainless steel ball valve 1/4 turn 2 way

Stainless steel ball valve 1/4 turn 2 way series industry compatible for compressor air and nitrox 40%

Features & Benefits:

• Visual indication of the direction of passage: The quarter-turn handle indicates the open / closed position (90 ° stroke).
• Waterproof, bi-directional seal: 2 TFE encapsulated seats combined with a polished bushel ensure an optimal two-way seal.
• Elimination of fugitive emissions: the seal ensures a perfect seal, with low operating torque, vacuum or high pressure
• Long life: the floating plug uses pressure to seal, compensating for wear and temperature effects.
• Panel mounting

Technical characteristics :

• Operating pressure: 414 bar (6000 psi)
• Inlet and outlet connection: 1/4 "NPT female
• Body material: 316L stainless steel
• Seat material: PTFE
• Filling material: Nylatron
• Joint material: Viton
• Diameter of passage: 6.35 mm
• CV: 0.40
• Air and nitrox compatible 40%
• Operating temperature: -29 ° C to + 249 ° C

Dimensions:

• Overall length (with handle): 76 mm
• Body length: 61 mm
• Width: 20 mm
• Diameter of the cable gland: 19 mm

Ask us if you need all the special high pressure valves for diving compressors you need.
