Standard open clamp

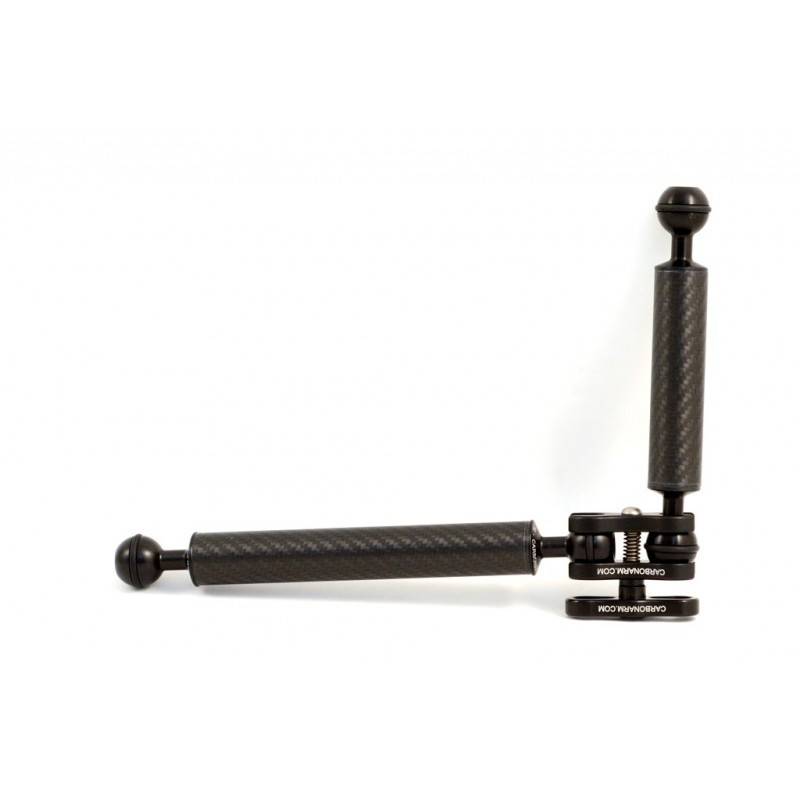

The opening of the clamp allows the arms to be directed at different angles.

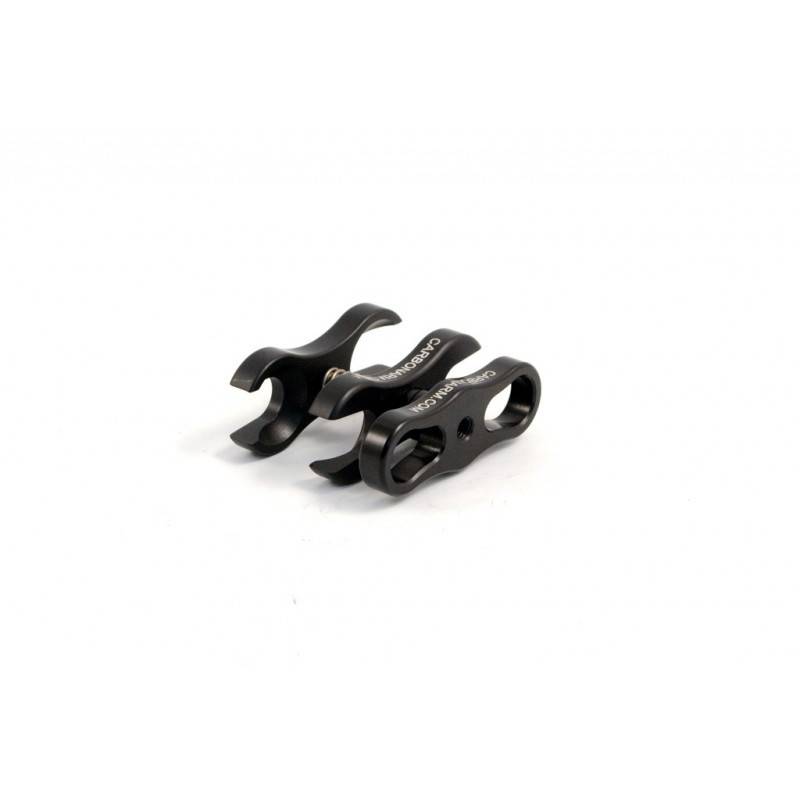

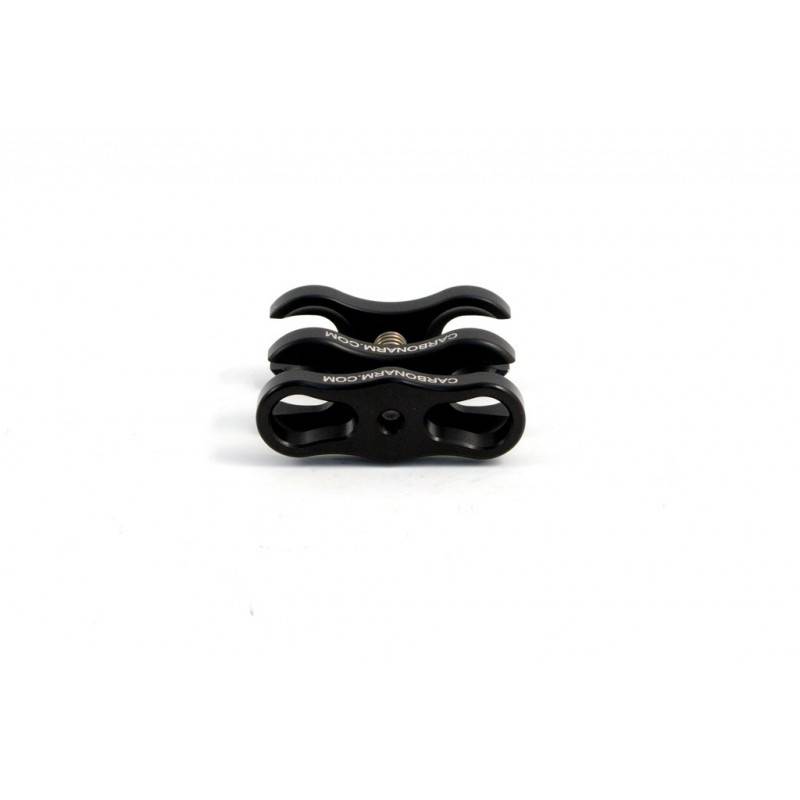

Locking pliers designed to perfectly clamp 2.5 cm diameter ball joints (such as Carbonarm's spherical plain bearings) made of anticorodal aluminium and anodised to 40 microns (military standard) to ensure maximum durability and excellent resistance to wear and sea water. The two aluminium parts are assembled by a stainless steel screw. Inside, a stainless steel spring is placed for easy opening of the clamp when it is necessary to loosen the handle. On the outside, a washer and a wing nut are placed to tighten the system very easily. This system ensures perfect coupling and tightening of the ball joints to the arms.

Technical Specifications :

• Height: 6.5 cm
• Width: 2.5 cm
• Thickness: 63 mm
• Weight: 52 gr
