TECLINE R2 / TEC2 scuba regulator pack « SIDEMOUNT» - TECLINE

TECLINE R2 TEC2 Sidemount dive regulator pack TECLINE P/N T15480

The "SIDEMOUNT" regulator pack from TECLINE R2-TEC2 includes 2x diaphragm first stage R2 diaphragm and 2x second stage TEC2 with hose 65cm and 210cm.

It comes with two 0-300bar dive gauges with black Proflex hoses.

TECLINE is actively promoting sidemount scuba diving regulators and this regulator pack configuration has been specially designed for this activity.

The regulators integrated in this pack are diaphragm and balanced, mounted with an anti-icing kit. The second stage is compensated and has a venturi adjustment and sensitivity.

Regulators R2 and TEC2 are designed for Nitrox uses up to 40%

PACK CONTENT:

• 2x 1st stage R2 ICE diaphragm with 5th port option
• 2x 2nd stage TEC2 with hose 63cm and 210cm Proflex black

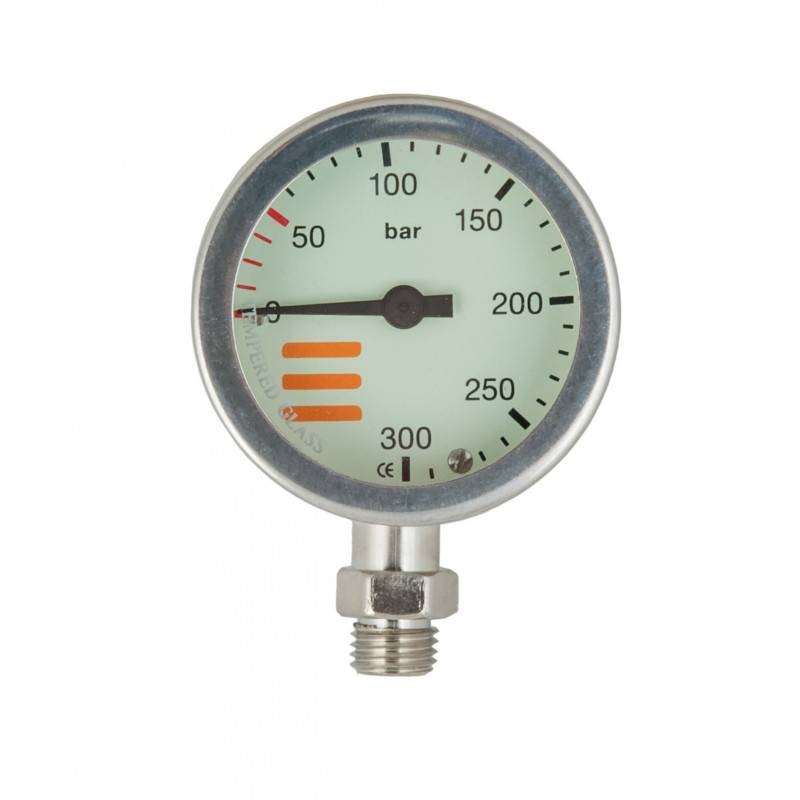

• 2x pressure gauges 300bar diameter 52mm with hose 20cm
• 1x 90 ° elbow
• 1x 76mm stainless steel carabiner
• Round bag (TecLine)

TECHNICAL CHARACTERISTICS

TECLINE R2 ICE regulator, with compensated diaphragm:

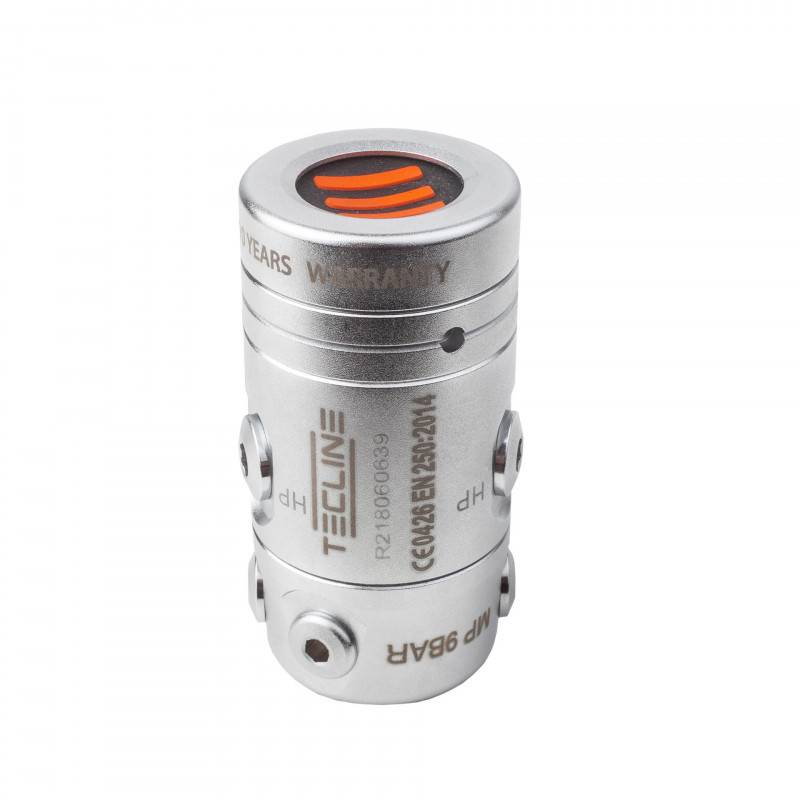

1st stage R2 ICE with diaphragm

• Outputs: 4 MP and 2 HP,
• Compensated diaphragm with cold water kit,
• Max. 300bar,
• Operating pressure 9 bar,
• Maximum flow at a pressure of 20 MPa: 850 L / min,
• Weight 790 g
• Meets the requirements of EN 250; CE1463 certified

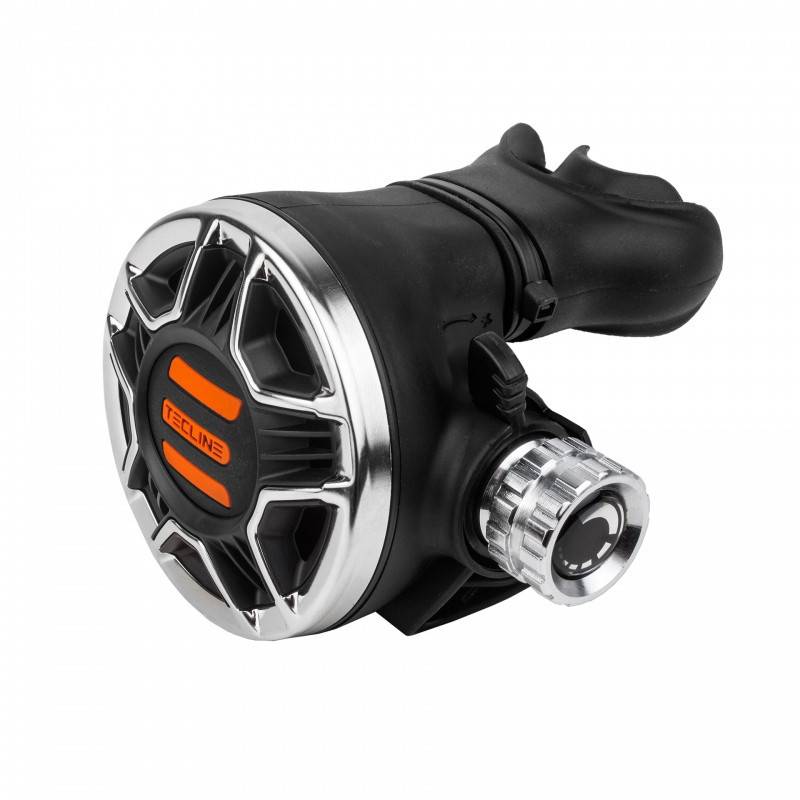

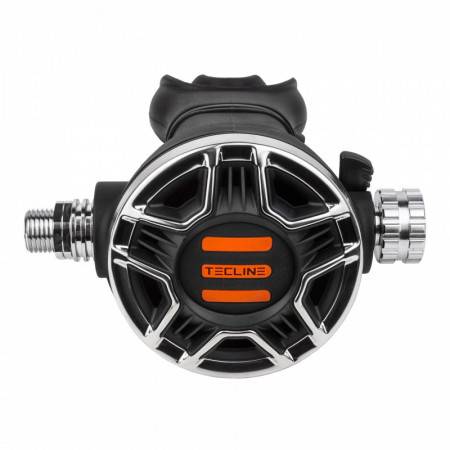

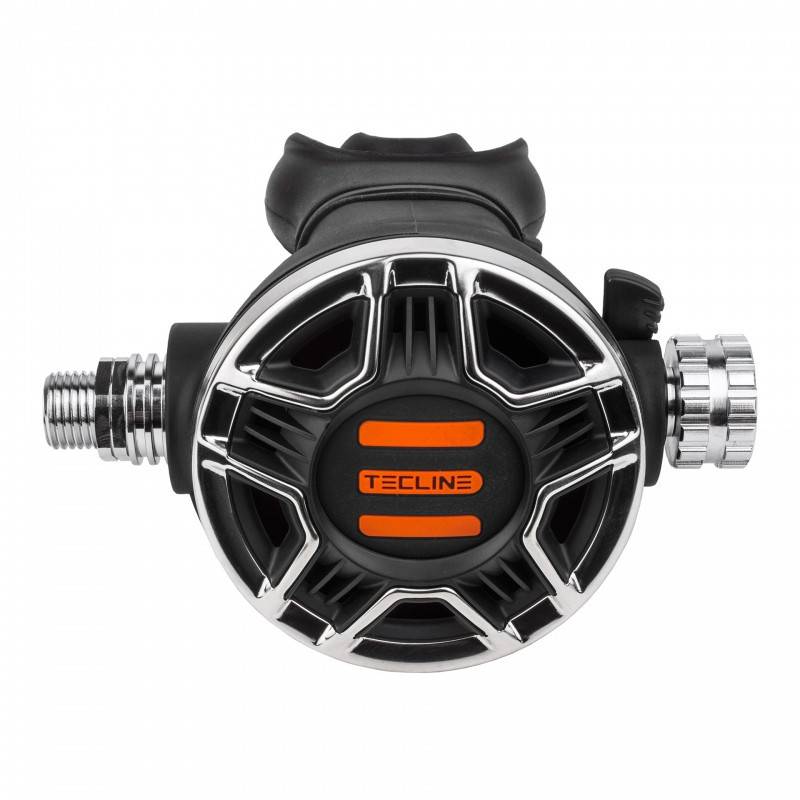

2nd stage balanced TEC2

• 2nd balanced floor
• Venturi and hardness adjustment with inspiration,
• Respiratory resistance from 0.983 to 1.004 J / l
• Flow rate: 950l / min
• Weight 280g
• Meets the requirements of EN 250; CE1463 certified.

GUARANTEE:

10 years warranty for the first person in charge of the reserve of an annual maintenance by an authorized TECLINE center.
