Regulator 1st stage R2 TEC Oxygen TECLINE

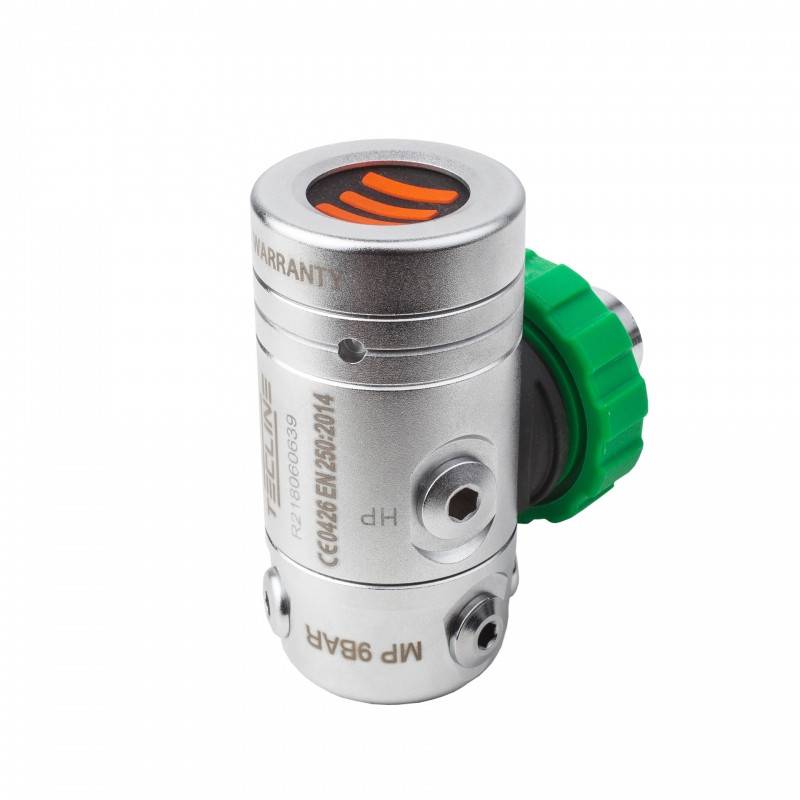

The 1st stage of the TECLINE R2 ICE O2 M26 regulator

The 1st stage of the regulator R2 ICE Oxygen of TECLINE is a compensated diaphragm regulator mounted in M26. It incorporates an anti-icing kit. It has a rotating turret.

This regulator allows a very good configuration in Sidemount for example.

Furthermore, the regulator R2 ICE O2 is specially prepared for use with 100% oxygen and accepts a working pressure up to 300 bar

TECHNICAL CHARACTERISTICS OF R2 ICE MONO O2

1st stage R2 ICE MONO O2 with membrane

• Compatible with 100% oxygen
• Connection M26
• Outputs: 4 MP and 2 HP,
• Compensated diaphragm with cold water kit,
• Max. 300bar,
• Operating pressure 9 bar,
• Maximum flow rate at a pressure of 20 MPa: 3823 L / min,
• Weight 790 g
• Meets the requirements of EN 250; CE1463 certified

WARRANTY:

• 10 years warranty for the first owner subject to annual maintenance by an authorized TECLINE center.
