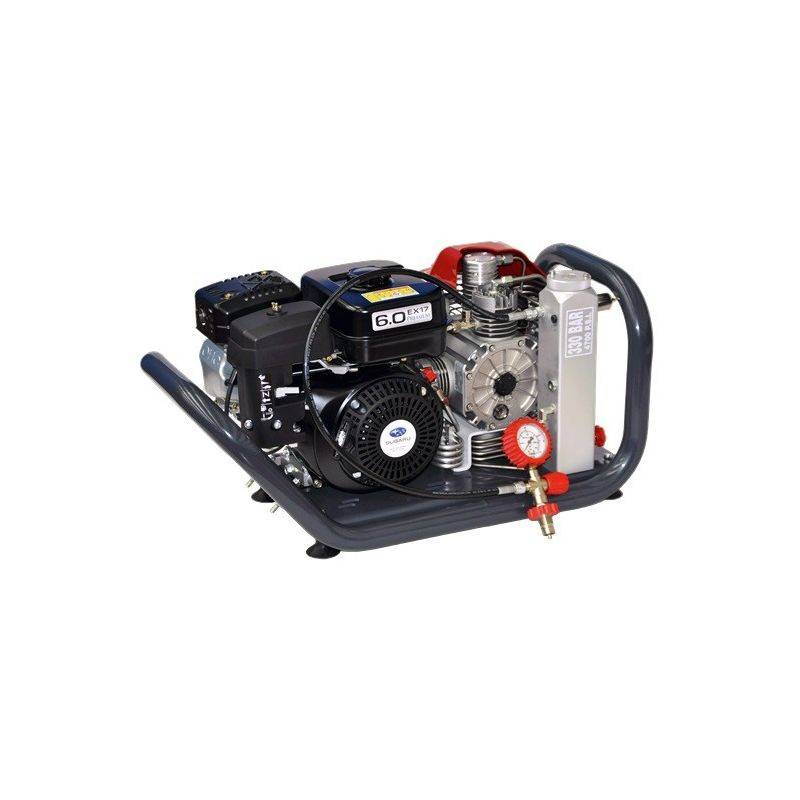

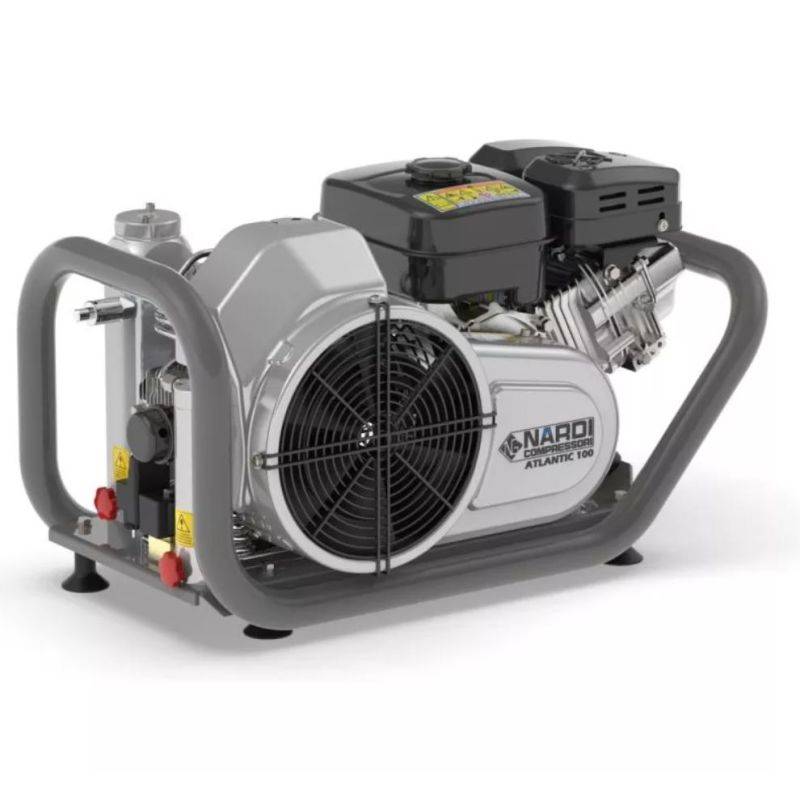

NARDI ATLANTIC 6m3 4 stroke petrol air diving compressor

NARDI

NARDI ATLANTIC 6m3 4 stroke petrol air diving compressor

Name: NARDI ATLANTIC 6m3 4 stroke petrol air diving compressor
Brand: NARDI
SKU: NARDI - ATLANTIC 6m3 THERMIQUE
Price: 3599 EUR
Availability: InStock

€3,599.00

Tax included Expédition sous 5 jours

Price excluding tax / DOM-TOM €2,999.17

Reference : NARDI - ATLANTIC 6m3 THERMIQUE

Portable diving compressor NARDI Atlantic. Ideal for individual divers or sailboats.

Flow rate of 6m3/h or 100L/min.
4-stroke SUBARU/ROBIN 6CV combustion engine
Purge and auto shut-off option
Choice of 225bar or 330bar version

Type

Automatism

Compressor outlet option

Shipping

Free Shipping From 89 € for France * * See conditions

Product return & exchange 14 days to change your mind

24/7 support 24/7 customer return guaranteed

100% secure payment By credit card, bank transfer, PayPal or check

NARDI ATLANTIC 6m3 4 stroke petrol air diving compressor

Diving compressor 6m3/h NARDI Atlantic with 4 stroke engine

The NARDI Atlantic scuba diving compressor is a portable high pressure compressor for diving that has been designed for the individual diver or itinerant diver.

NARDI benefits from more than 15 years of experience in the field of high pressure air compressors with a 4-stage engine block. Lubrication is by splash lubrication.

This model of diving compressor Atlantic 6m3/h is equipped with a 4-stroke Subaru/Robin 6CV combustion engine.

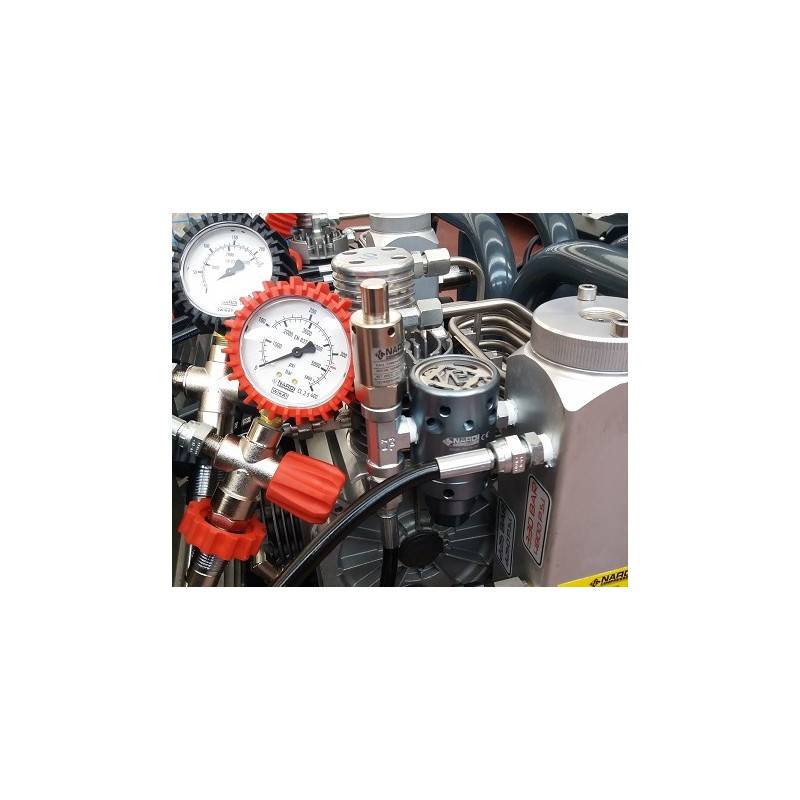

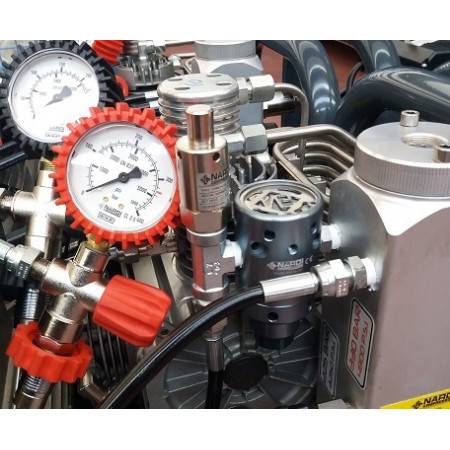

The integrated breathing air filtration meets the latest standards via a user-interchangeable cartridge.

It is available to order in 225bar or 330bar versions. Please note that the 330bar version is supplied with a DIN300bar diving cylinder connection.

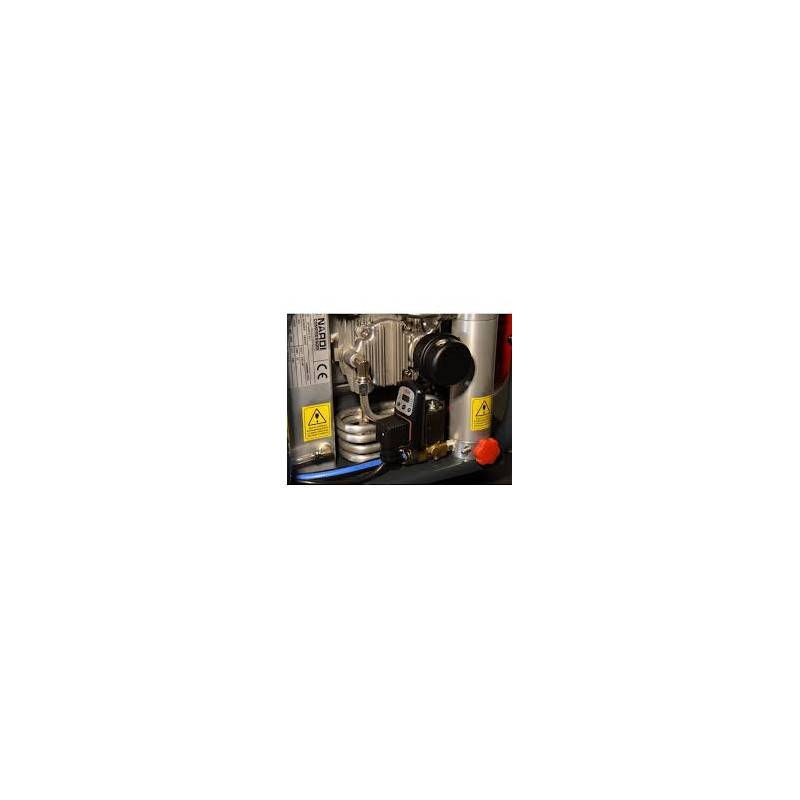

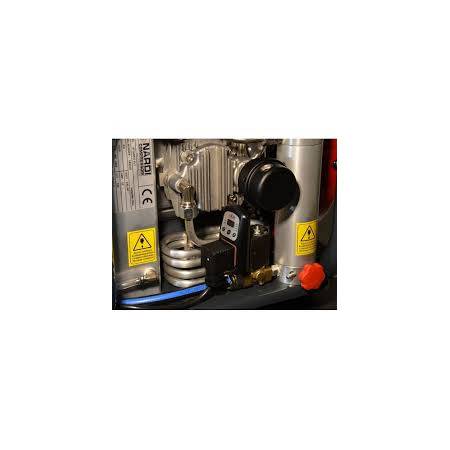

The compressor is available with automatic bleed and shut-off as an option.

All NARDI Atlantic compressors are sold with an hour meter.

It is designed for breathing air inflation but not for Nitrox inflation.

Characteristics

*Model Compressor*	*Name – Nome*	*ATLANTIC P 100/1*
Working Pressure	PN	200/300
Charging rate*	L/min. – m3/h – cfm	100 – 6 – 3,5
Safety Valve Pressure	Bar – Psi	225 – 3200

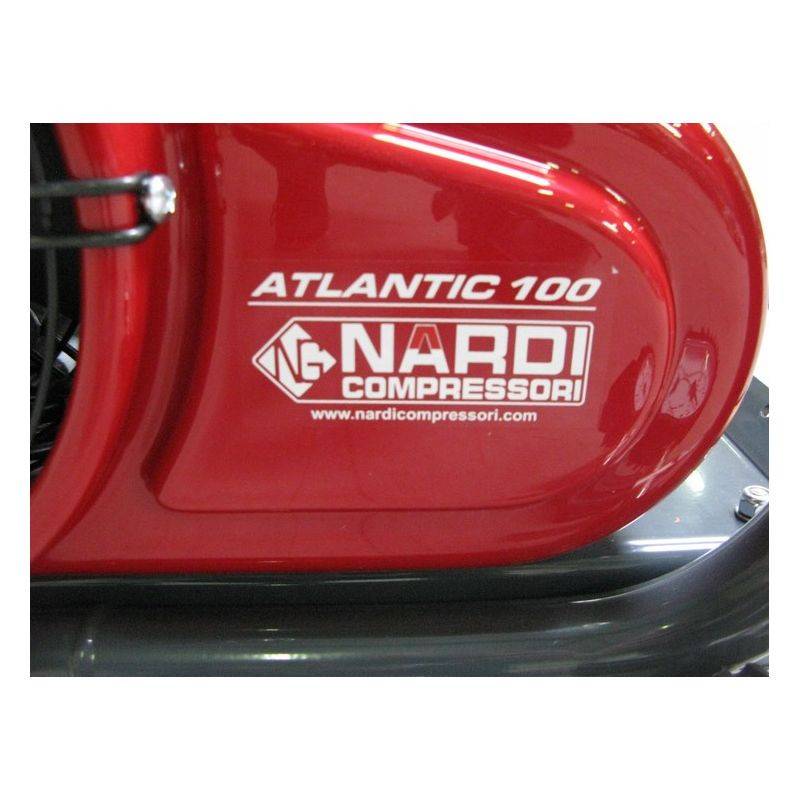

Compressor block	Name – Nome	ATLANTIC 100
Number of stages	N°	4
Number of connecting rods	N°	4
Pressure 1st Stage	Bar / Psi	3 / 43
Pressure 2nd Stage	Bar / Psi	15 / 217
Pressure 3rd Stage	Bar / Psi	65 / 942
Pressure 4th Stage	Bar / Psi	225 / 3200
Compressor Block Oil capacity	Liter – Litri	0,35
Speed Compressor	r.p.m.	2100
Environment working temperature	°C / °F	From +5°C to +45°C / From +41°F to +113°F
Max inclination of compressor	Degrés	5°
Altitude maximale de fonctionnement	Metre/ Feet	2000 m / 6560 Ft
Power pump weight	Kg. / lb	10 / 22
