Ikelite housing for Panasonic TZ200 and TZ202

IKELITE housing for PANASONIC TZ200 and TZ202

Compact housing, waterproof to 60 meters, for PANASONIC TZ200 and TZ202 cameras

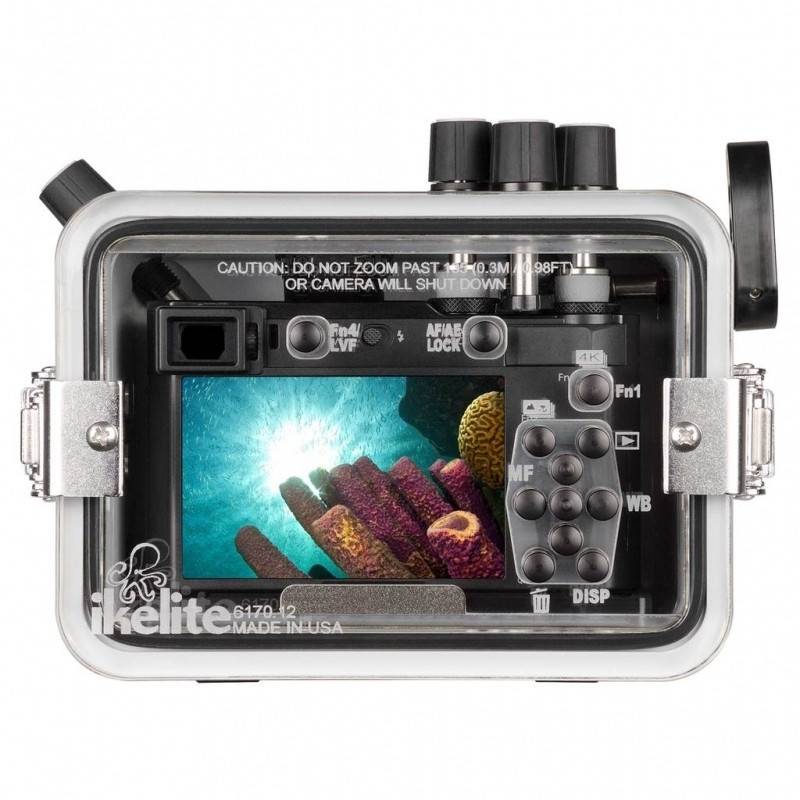

• Newly designed housing in gray polycarbonate with transparent rear door for checking the correct position of the camera body and control levers inside the housing; highly resistant, tested and usable to a depth of 60 meters. The specially formulated gray color reflects the sun's rays to keep the camera cooler over time. Compared with black or transparent housings, the gray color offers superior contrast for better viewing of the LCD screen.
• The rear door gasket is always visible to ensure a tight seal when closing the door. For added safety! The rear door closes with 2 stainless steel safety latches.
• The rear knobs are identified by unalterable laser engraving.
• The 60-meter depth of use, combined with the brand's reputation, gives these housings a real safety margin for the user.
• The many possible accessories make them perfectly upgradeable...

Supplied with :

• Double fiber optic holder
• Grease tube
• 2 Kodak 1/4-20 threads for turntable mounting, 76mm apart, on the underside of the housing.
• Vinyl window protector
• English manual (manual available in French in the "download" section of this product sheet).

Accessible controls :

All camera controls except:

• Diopter adjustment button
• Flash deployment button

Important note:

• The lens supplied with this housing is designed to use the focal length range from 24 mm to 135 mm. As the TZ200 camera can zoom up to 360 mm, the lens will lock at 135 mm.

Dimensions:

• Dimensions include control buttons and lens cover.
• Length: 17.3 cm
• Depth: 15.7 cm
• Height: 13.0 cm
• Porthole thread: 3.9" unthreaded
• Weight: 1.270 Kg out of water
• Near-neutral buoyancy in fresh water.

Compatible accessories :

• All accessories and spare parts for this housing can be seen in the accessories tab of this product data sheet. Please consult us for advice on compatibility with your existing equipment.
• 3.9" orange filter (IKE6441.46) for seawater.
• 3.9" pink filter (IKE6441.86) for freshwater.
• Ikelite optical fiber for external flash: IKE 4501
• Fantasea fiber optics for external flash: FAN 6315
• WD4 wide-angle dome: IKE 6430.4
• Adapter for 67mm macro ring: IKE 9306.82
• Macro lens (Consult us for personalized advice)
• Single handle stage: IKE 9523.63
• Double handle stage: IKE 9523.64
• Compatible flash units
• Ikelite DS51 flash with fiber optic adapter (NG: 17)
• Ikelite DS160 flash with fiber optic adapter(NG: 24)
• Ikelite DS161 flash with fiber optic adapter(NG: 24)
• INON S2000 and Z330 flash units
• I-Torch SS2 flash
• Sea & Sea YS-D2 flash
• Compatbile lighting:
• Photo and video lighting available (please consult us for personalized advice).

Additional info :

• Replacement door seal: IKE 0109
• Silicone grease: IKE 5020
• Push-button maintenance kit: IKE 6201.03
• Cabinet cleaning, polishing and renovation kit: IKE 6201.31
• Vinyl window protector: IKE 0200.08

HOUSING DELIVERED BARE, WITHOUT APPLIANCE
