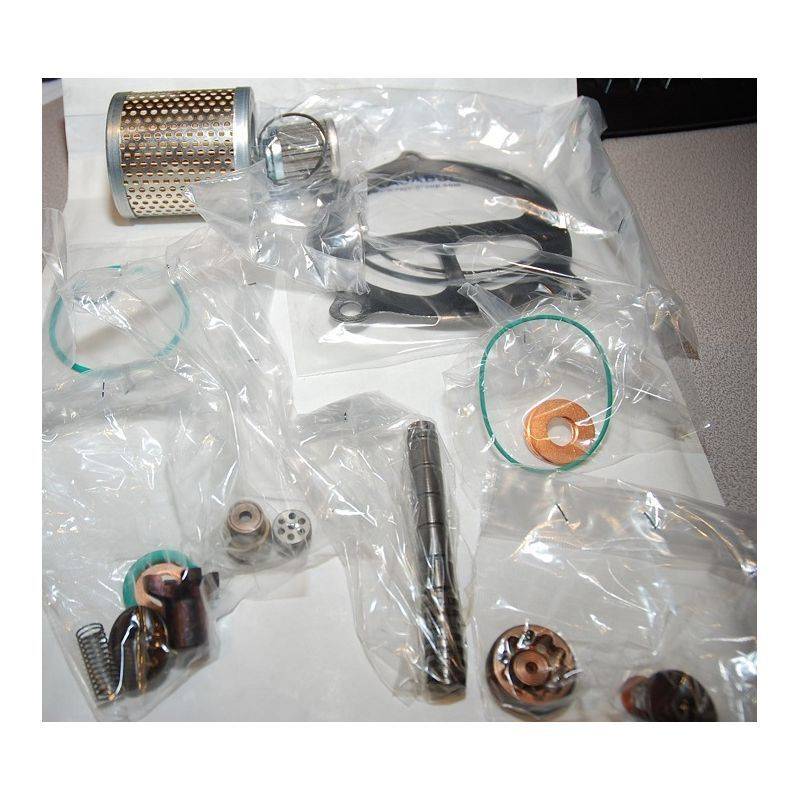

Maintenance kit Pacific 35 1000 hours

500 hour service kit for Pacific 35 airend since June 2014

For cleaning the 1st stage valve, replacement of the 2nd, 3rd and 4th stage valves, oil change.

• 1 X OR034-005 oil filter seal
• 1 X PA001-145 oil filter

1st stage:

• 1 X PA002-130 cylinder head gasket 1st stage
• 1 X PA002-140 cylinder head gasket 1st stage

2nd stage:

• 4 X OR028-005 valve gasket 2nd stage
• 1 X PA004-595 Suction valve 2nd stage
• 1 X PA004-596 Exhaust valve 2nd stage

3rd floor:

• 1 X OR053-006 cylinder head gasket 3rd stage
• 2 X PA002-585 Intake valve 3rd stage
• 1 X PA002-593 Exhaust valve 3rd stage
• 1 X OR020-015 O-ring exhaust valve 3rd stage
• 1 X VR008-015 copper washer 3°/4° stage valve

4° stage:

• 1 X VR008-015 copper washer 3°/4° stage valve
• 1 X OR 037-010 O-ring top sleeve 4° stage
• 1 X OR037-009 O-ring top sleeve 4° stage
• 1 X OR024-005 top seal 4th stage sleeve
• 2 X PA004-676 Valve sealing ring, 4th stage
• 1 X PA004-571 inlet valve washer
• 1 X PA004-683 Exhaust valve washer

Separators:

• 2 X OR053-006 Separator O-ring
• 1 X PA002-721 Separator filter

Automatic drain:

• 3 X OR011-010 Valve housing O-ring
• 3 X PA114-030 Automatic bleed piston
• 1 X OR063-004 Automatic bleed piston seal
• 1 x 5 liter can of synthetic oil
