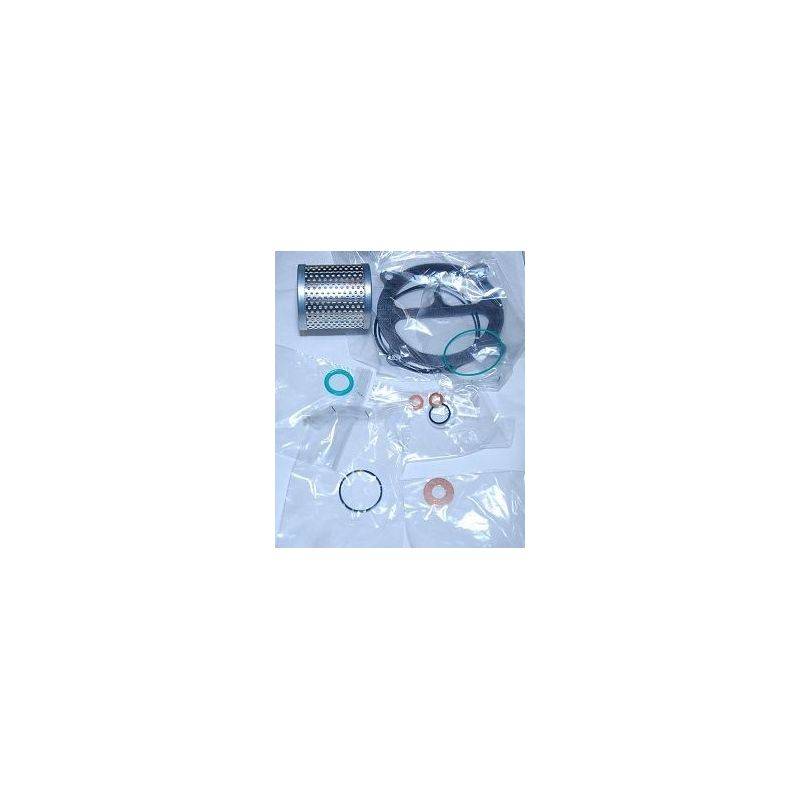

Maintenance kit Pacific 30 500 hours

500 hour maintenance kit for Pacific 30 after July 2014

Valve cleaning, valve plate replacement 2nd and 3rd stage, draining.

1° stage:

• 1 X PA002-191 suction filter 1° stage
• 1 X PA002-036 O-ring seal 1° stage
• 1 X OR101-005 O-ring cylinder 1° stage

2° stage:

• 1 X OR053-006 O-ring cylinder head 2° stage
• 2 X PA002-588 valve washer 2nd stage
• 2 X VR012-025 copper valve washer 2nd stage
• 1 X OR020-015 O-ring exhaust valve 2nd stage
• 1 X VR008-015 copper washer 2nd/3rd stage valve

3° stage:

• 1 X OR037-010 gasket upper sleeve 3° stage
• 1 X OR037-009 Upper liner gasket 3rd stage
• 1 X OR024-005 Top gasket for 3rd floor liner
• 2 X PA004-676 3rd stage valve gasket
• 1 X PA004-681 3rd stage inlet valve washer
• 1 X PA004-683 Exhaust valve washer, 3rd stage
• 1 X VR008-015 Copper washer, 2nd/3rd stage valve

Separators:

• 2 X OR053-006 separator O-ring
• 1 X PA002-721 Separator filter

Automatic drain:

• 2 X OR011-010 valve housing O-ring
• 2 x PA114-030 Automatic drain valve
• 1 X OR063-004 Automatic drain piston seal

Drain:

• 1 X OR034-005 oil filter gasket
• 1 X PA001-145 oil filter
• 1 x 5 liter can of synthetic oil
