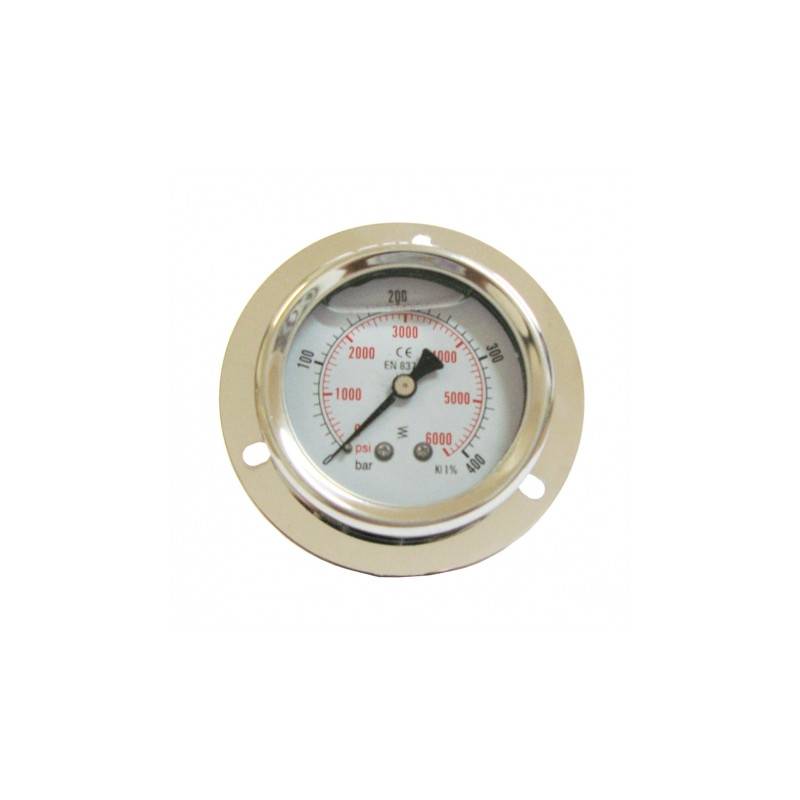

Axial pressure gauge 0-400 bar D63mm with glycerine and flange mounting

Stainless steel pressure gauge 0-400 bars D63mm rear socket with glycerine and fixing collar.

Ideal for Coltri, BAUER compressors ...

Characteristics:

• Pressure range: 0-400 bar
• Diameter: 63mm
• Air intake: rear
• Accuracy class: 1.6
• Inlet connection: 1/4" BSP male
• Material of box and collar: stainless steel AISI 304
• Glycerine for damping compressor vibration and mains water hammer

Council:

To choose the right pressure range for a pressure gauge, the pressure range must not exceed 2/3 of the working pressure of your network.

N.B.: Not all pressure gauges are on our website. We can supply pressure gauges in all diameters (40-50-63-100-150-200 mm), all pressures (2.5 to 1000 bars), oxygen compatible ...

Please contact us for any special request
