Stainless steel 1/4 turn high pressure valve - max pressure 410bar
  • Stainless steel 1/4 turn high pressure valve - max pressure 410bar
  • Stainless steel 1/4 turn high pressure valve - max pressure 410bar
  • Stainless steel 1/4 turn high pressure valve - max pressure 410bar
  • Stainless steel 1/4 turn high pressure valve - max pressure 410bar

Stainless steel 1/4 turn high pressure valve - max pressure 410bar

HPC-004C-0001
Rating

1/4 turn valve in 316 stainless steel and maximum operating pressure of 310 bar. A very high quality valve for severe environments.

Diamètre
€199.00
Tax included
Quantity

  • Security guarantees: 100% secured website Security guarantees: 100% secured website
  • Delivery policy: free shipping from 79 € TTC for France Delivery policy: free shipping from 79 € TTC for France
  • Returns policy: 15 days from the date of receipt Returns policy: 15 days from the date of receipt
Description

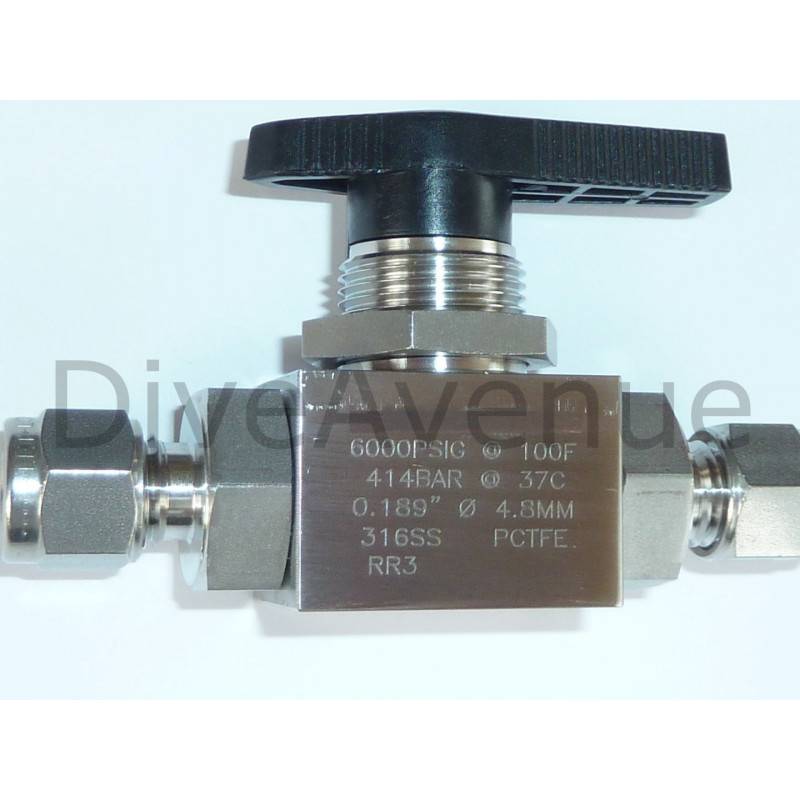

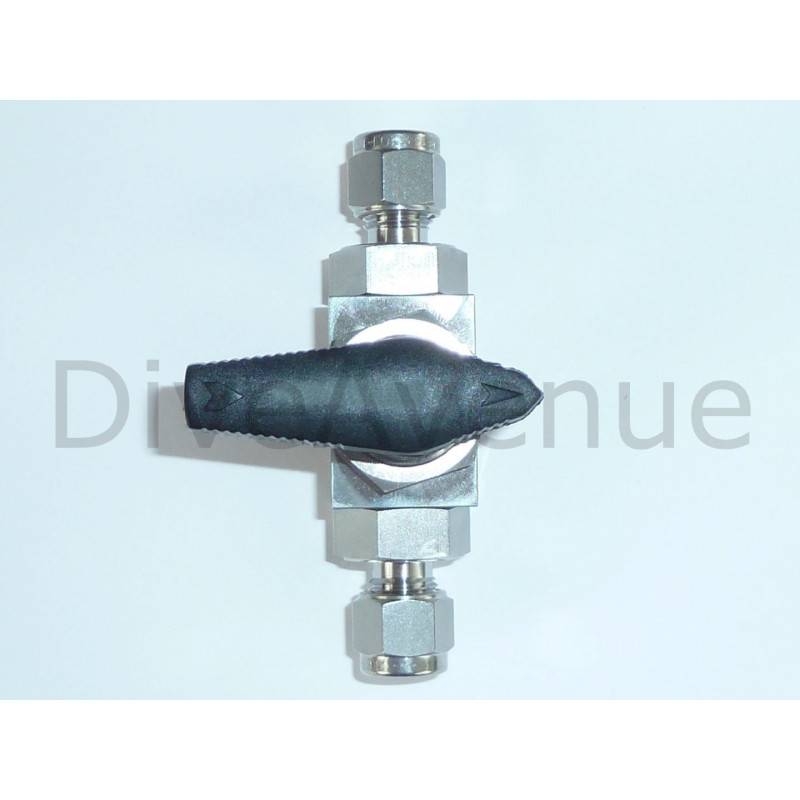

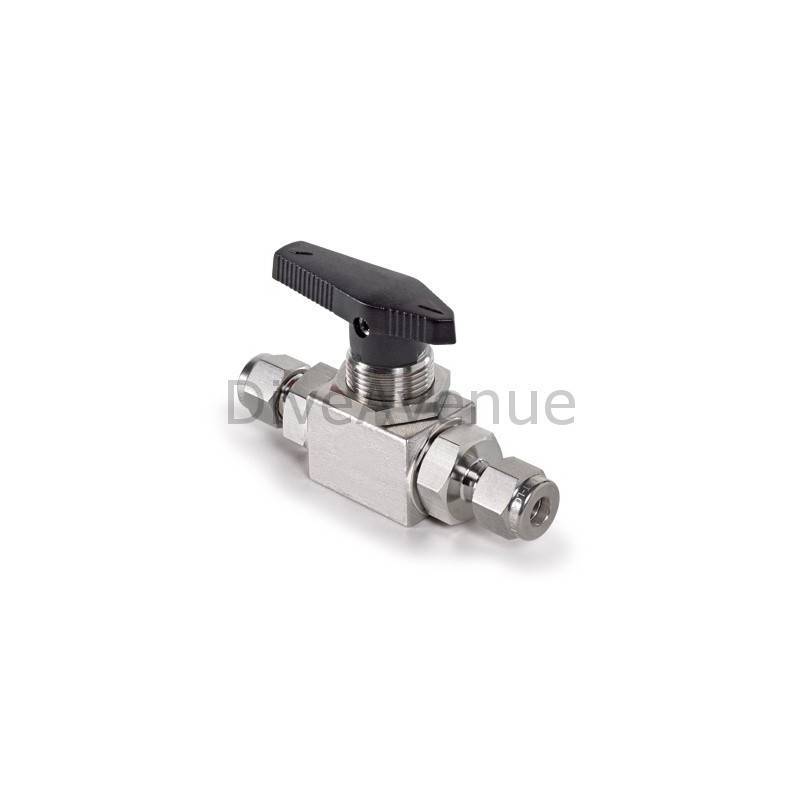

High pressure 1/4 turn valve in 316L stainless steel:


1/4 turn valve in 316L stainless steel for corrosive environments. Allows direct connection of a 6mm or 8mm diameter tube.

This high pressure 1/4 turn valve is a ball type valve.

Characteristics :

  • Max pressure : 410bars
  • Body material: INOX 316
  • Handle material: Nylon
  • Max. operating temperature: 148°C
  • ECE approved for 20,000 cycles
  • Table top with nut and bolt
  • Connections : For 6mm or 8mm tube to be specified.


Also available on request for the following tube dimensions:

  • in mm: 3-6-8-10-12-18
  • in inch: 1/16"-1/8"-1/4"-3/8"-1/2"-3/4
  • in NPT/BSPT male and female: 1/8"-1/4"-3/8"-1/2"-3/4
  • in BSPP male and female: 1/8"-1/4"-3/8"-1/2"-3/4


Be careful to check your connections before ordering. Valves for 6 and 8mm stainless steel hoses can be exchanged if not mounted exclusively. All valves for other tube sizes are on special order and cannot be exchanged.
