TODDY STYLE TS C Cordura Ultralight sidemount harness

TODDY STYLE TS C Cordura Ultralight Sidemount harness

The TODDY STYLE TS C Cordura Ultralight sidemount harness is an extraordinary concept of universality in the world of diving wings. It has been designed as a harness for use with a single backpack cylinder, or in its sidemount version with up to 2x 12L steel tanks.

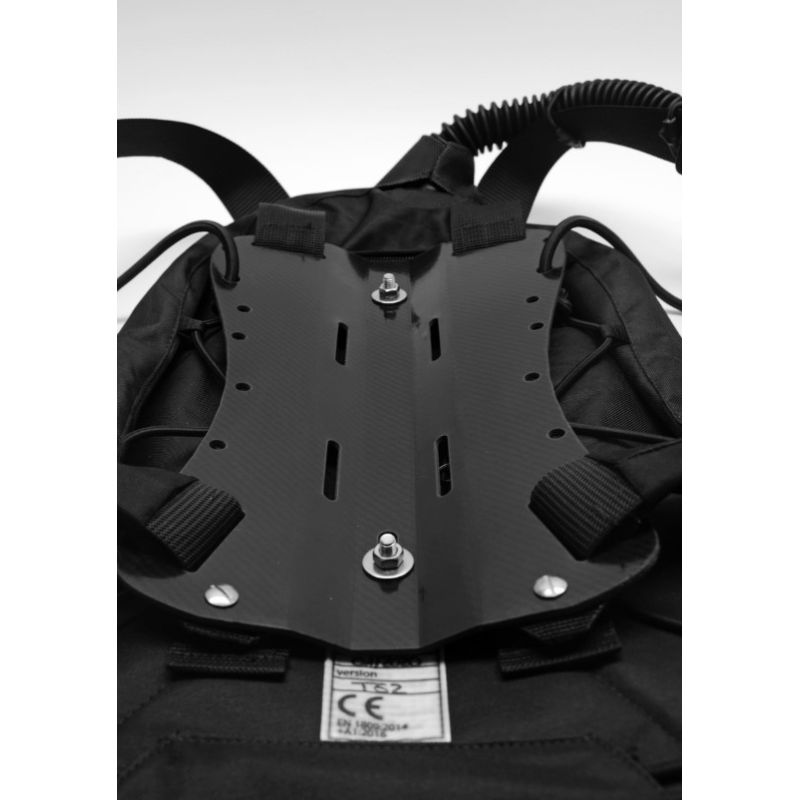

The design is simple: a lightweight internal back plate to attach the harness, 13kg buoyancy and an external plate with an "STA" to attach a single tank. All this for a total ultralight weight of 3.6kg.

The color of the aluminum back plate can be chosen from black or red. A lightweight carbon fiber version is also available and saves almost 1kg on the total weight.

The TS C Ultralight version of the Toddy-Style harness is made from Cordura

For ballasting, a center weight (optional) can be added, and also back weights on the outside of the back plate with optional straps.

Technical characteristics of the Toddy-Style TS C Cordura Ultralight

• Shoulder and waist straps: polypropylene, 50mm wide, 3mm thick.
• Subcutaneous: polypropylene, 50mm wide, 3mm thick.
• Backplates: Polypropylène 380gr, water jet cut
• Stainless steel parts: V4A quality.
• Inflator - Corrugated hose: butylene rubber, length 320 mm.
• Anti-stretch cable of the corrugated hose: V4A stainless steel
• Pressure relief valve: techno-polymer, glass-fiber reinforced stainless steel spring, working pressure 0,25 bar, silicone seal, polyester cord 2,5 mm.
• Bladder: nylon, PU coating.
• Lifting capacity: 130N
• Maximum recommended block size: 2x12L steel or 2x11.1L aluminum
• Weight: about 2.55kg
• Operating range: -1°C to +35°C
