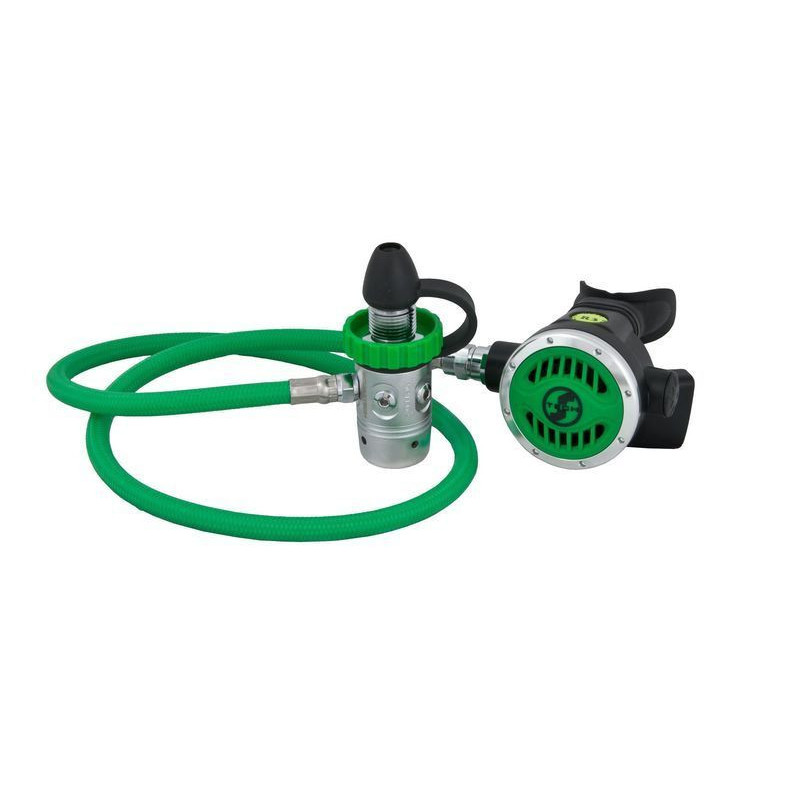

Regulator R1 Pro O2 TECLINE

Full regulator R1 Pro O2 TECLINE with 1st stage piston R1 Pro O2 and 2nd stage single R1 Pro O2.

The Tecline R1 Pro O2 regulator is a simple piston regulator. Its 2nd stage is also the R1 Pro O2 oxygen compatible, uncompensated and without adjustments.

It will make an excellent octopus regulator for example. The TECLINE R1 Pro O2 is 100% oxygen compatible

CHARACTERISTICS :

1st stage R1 Pro O2 TECLINE

• Outputs: 3 MP and 2 HP,
• Maximum working pressure: 300 bar,
• Maximum flow rate at the pressure of 20 Mpa: 3823 L / min,
• Intermediate pressure: 8.5 bar,
• Weight: 515 g
• 100% oxygen compatible

2nd stage R1 Pro O2 TECLINE

• Non-compensated expansion valve, no venturi adjustment or sensitivity
• Maximum flow rate at a pressure of 20 MPa: 850 L / min,
• Weight: 180 g,
• Hose miflex 75 cm
• Meets the requirements of EN 250.
• 100% oxygen compatible

PRODUCT CONTENT:

• 1x pressure regulator TECLINE R1 Pro O2

WARRANTY:

• The TECLINE R1 Pro O2 is guaranteed for 10 years for the first owner if serviced once a year.

Find the complete Tecline catalog on http://teclinefrance.fr/nosproduits.html
