Ikelite Housing - 60m - OLYMPUS OM-D E-M1 Mark II

Ikelite waterproof case for OLYMPUS OM-D E-M1 Mark II camera

New generation housing offering a superb grip.

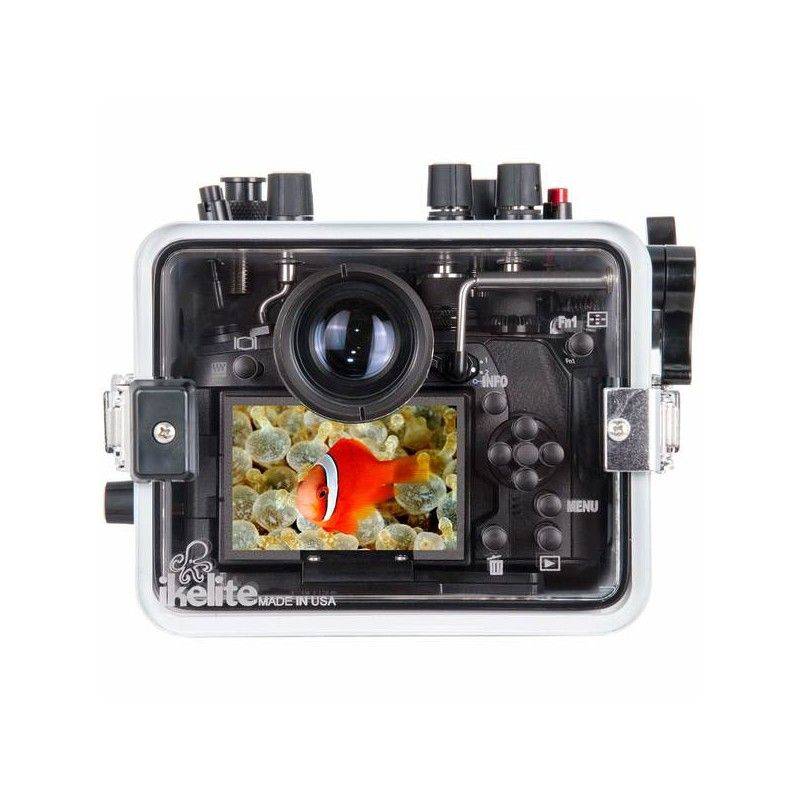

The transparent polycarbonate of the back door allows a verification of the good positioning of the camera body and the control levers in the housing. The specially formulated grey color reflects the sun's rays to provide better cooling of the camera over time, especially for cameras shooting in 4K. Compared to black or clear housings, the gray color offers superior contrast for better viewing of the LCD screen.
The levers and buttons allow the use of almost all the original controls of the camera.
This housing for the OLYMPUS OMD EM1 Mk II is equipped with a control lever for the AEL/AFL button that falls naturally under the thumb. This makes it possible to focus extremely fast so that nothing is missed on moving subjects.
Fiber optic flash sync system is standard
Optional TTL converter and external flash socket (IKE 46032) can be added

Comes with:

• 1 set of spare button stop caps
• 1 grease cup.
• 1 hexagonal key 1/8" for tightening the controls.
• Two 1/4-20 Kodak threads at 76mm intervals on the underside of the housing for mounting the turntable.
• 1 English manual (manual available in French in the "download" tab of this product sheet).
• Attention, this housing is delivered without a window! The window is essential to make the system watertight and must be ordered separately depending on the type of lens used. Please consult us for personalized advice on this subject.

Accessible controls:

All important camera controls are accessible from the housing except:

• Viewfinder diopter correction control
• Rear Quick Dial.
• White balance button
• Fn function button
• Preview button

Compatible viewports and domes :

This housing allows the use of most lenses thanks to its DLM/B type "DRY LOCK MICRO type B" porthole system.

Compatible accessories :

A selection of accessories and spare parts for this housing is visible in the accessory tab of this product sheet. Do not hesitate to consult us for any advice on the compatibility with your existing equipment.

Compatible external flashes

The use of an external flash is recommended and improves the color rendering and the exposure of the subjects. Please note that only flashes equipped with an electrical sync plug can be used with this camera. Since the camera does not have a pop-up flash, the use of flashes with a fiber optic link is not possible.

• Flash DS51 (TTL mode with optional converter kit 46032 and Manual)
• DS160 flash (TTL mode with optional converter kit 46032 and Manual)
• Flash DS161 (TTL mode with optional converter kit 46032 and Manual)
• Inon Z240, Z330, D200 (manual mode only)
• Sea & Sea YS-D2, YS-D3 (manual mode only)

Compatible lights:

Photo and video lighting available (please consult us for custom advice).

Note: this part number replaces version 6952.02 since May 2021

Features:

• Height: 146 Mm
• Width: 190 Mm
• Depth: 149 Mm
• Weight: 1.322 Kg
• Depth of Use: 60 Meters
• Material: ABS-PC
• Camera Brand: OLYMPUS
• Photo Case Format: Hybrid
• Housing Seal: IKE 0110
• Humidity Sensor: OPTIONAL
• Vacuum Pump: Optional: 1/2" Model
• Buoyancy: Depends On Weight Of Lens Used
• Stage Mount Type: 2 x 1/4-20 (Kodak Pitch) screw mounts spaced 76mm apart
• Case Mount Accessory Bracket: NO
• Photo-Video Accessory Mounting Plate: OPTIONAL
• Interchangeable Window System: DLM / DRY LOCK MICRO IKELITE
