High pressure o'ring spool assembly tool

Tool
for fitting O-rings
O-rings
swivel.

Thanks to this assembly tool, you'll no longer have any difficulty replacing the seals on your manometer shaft. The gasket is small (typically 1.42mm x 1.52mm) and its high hardness for high-pressure applications poses risks during assembly.

If the gasket is badly positioned or twisted, the risk of a leak is very high.

With the help of this tool, everything is made easier:

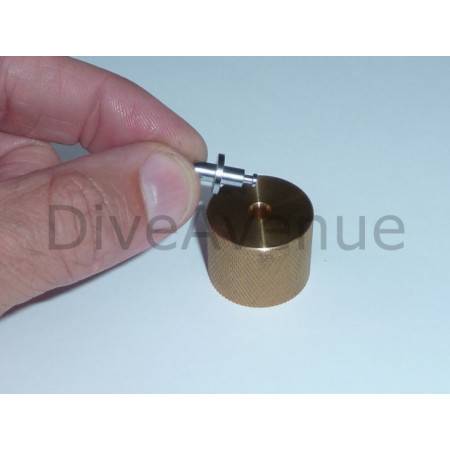

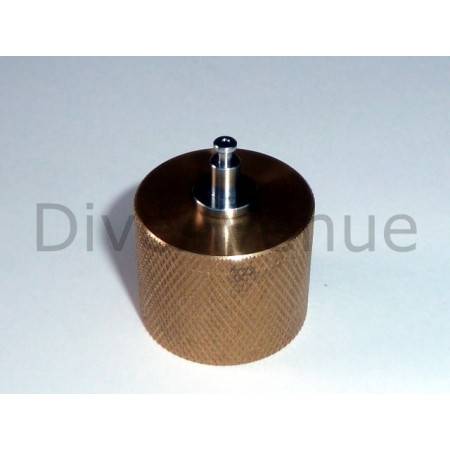

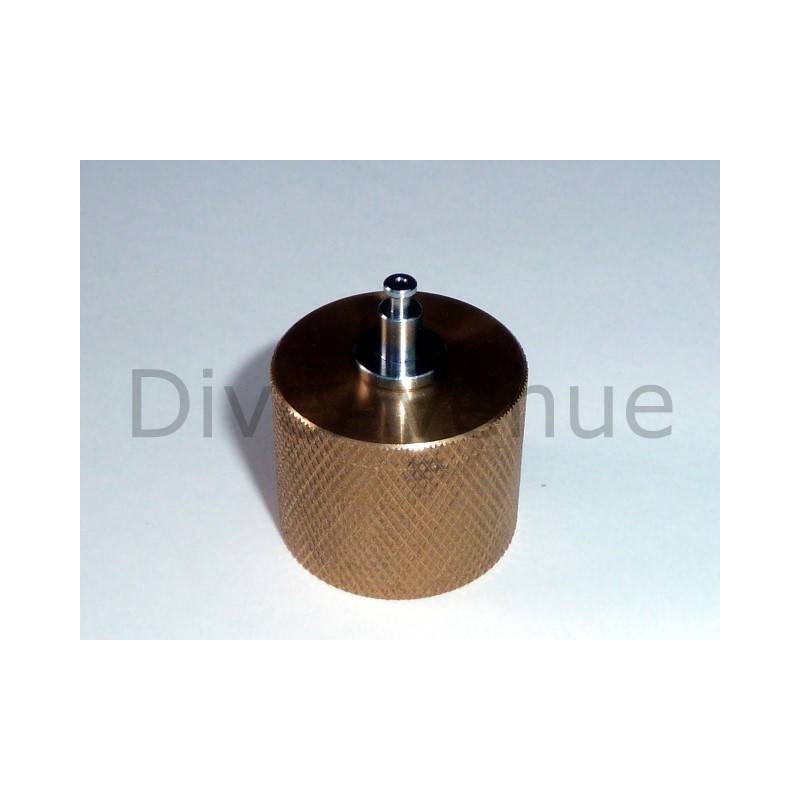

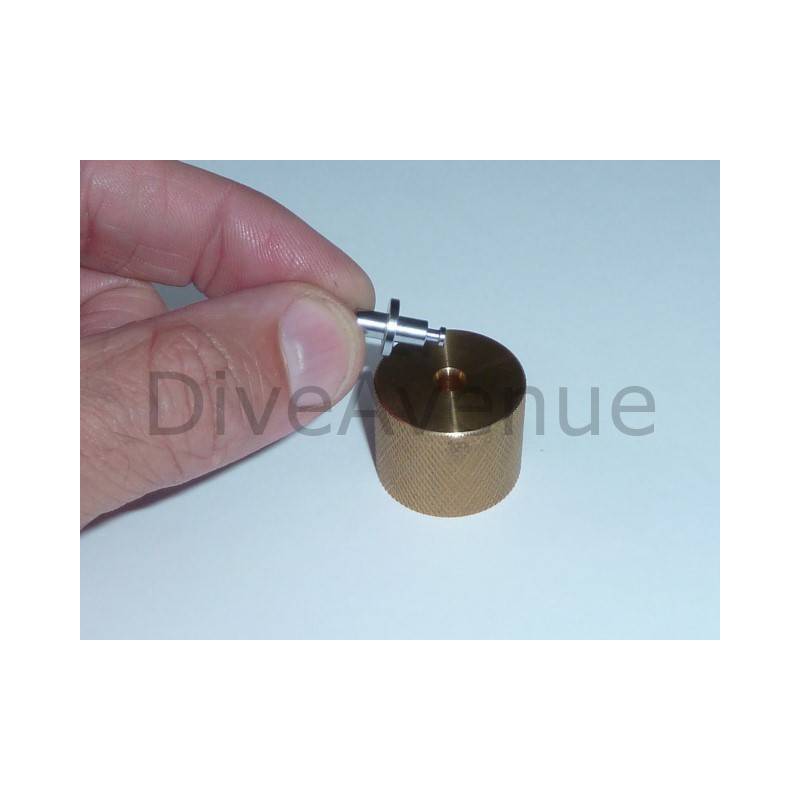

• After removing the old gasket, position the pressure gauge swivel on the “support” part of the tool.

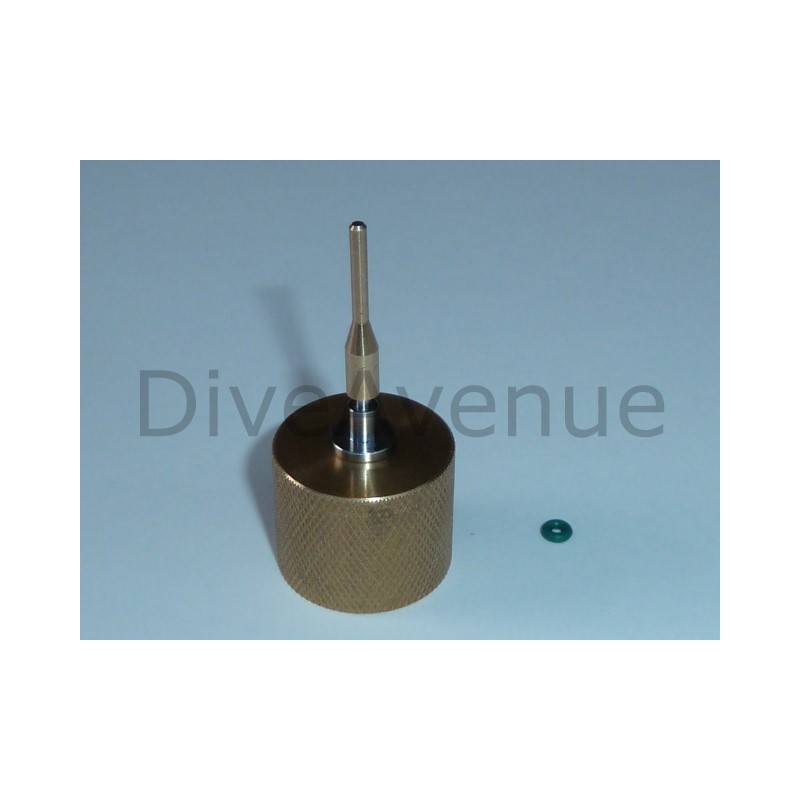

• Then fit the cone onto the swivel.

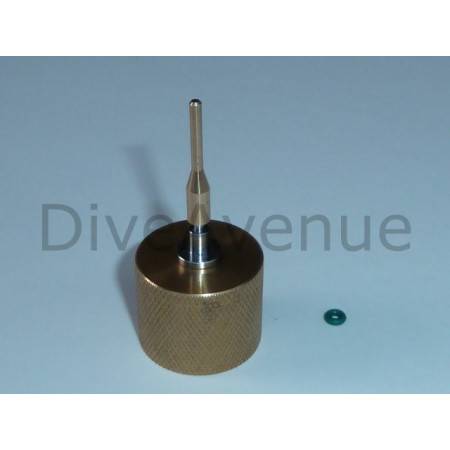

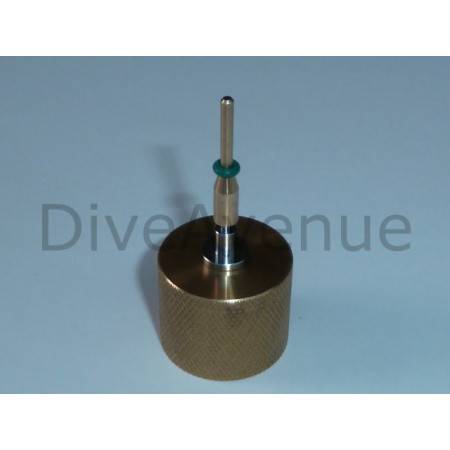

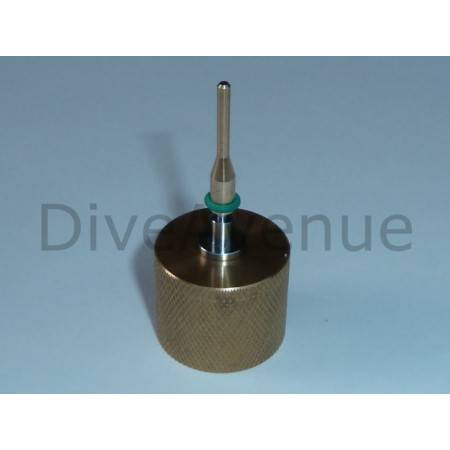

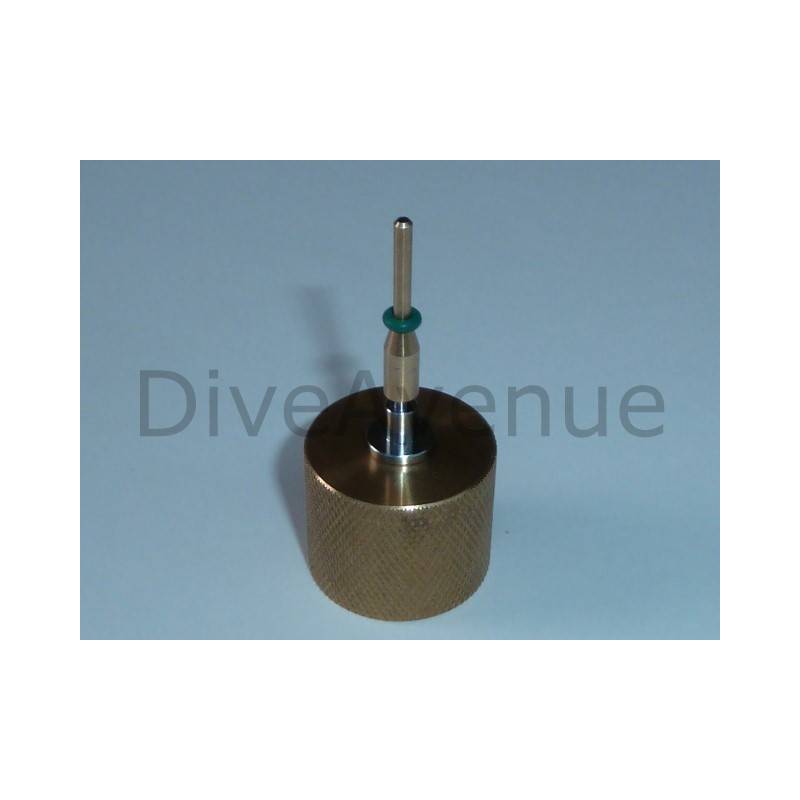

• Take a new gasket and insert it onto the cone. Slide it all the way down.

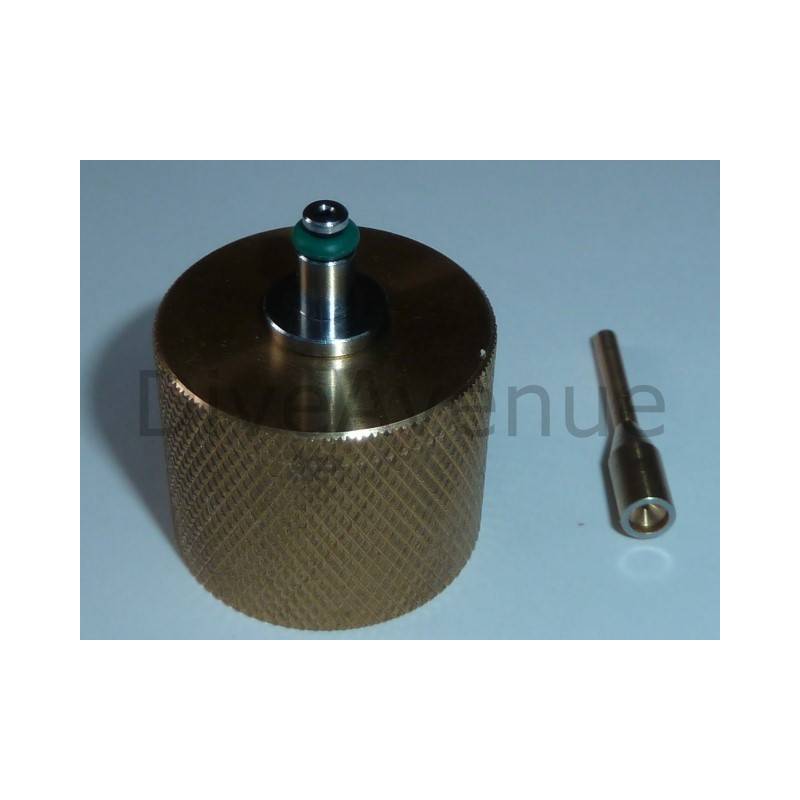

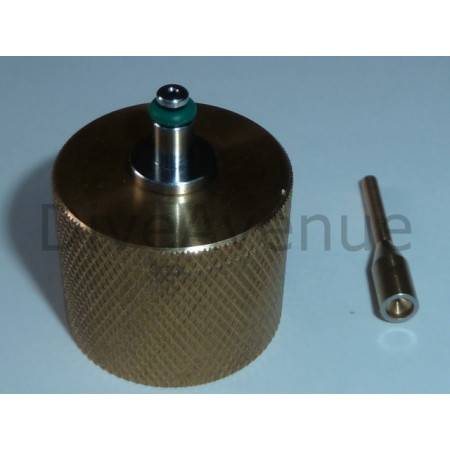

• That's it, the new O-ring is in its housing!

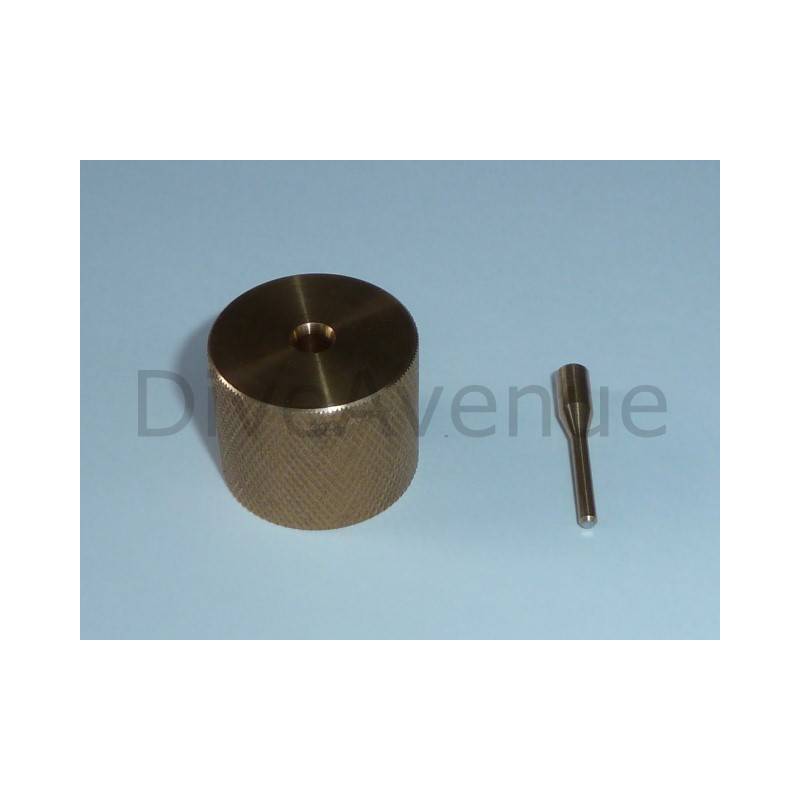

• The tool is made of brass.
