Regulator R1 Pro AIR TECLINE

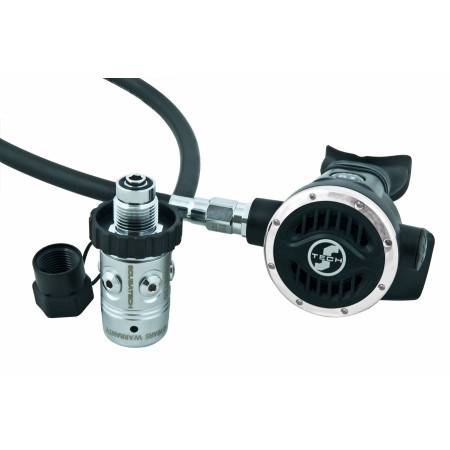

Full pressure regulator R1 Pro TECLINE with 1st stage piston R1 Pro and 2nd stage single R1 Pro.
The Tecline R1 Pro regulator is a simple piston regulator. Its 2nd stage is also the R1 Pro, uncompensated and without adjustments.
It will make an excellent octopus regulator for example.

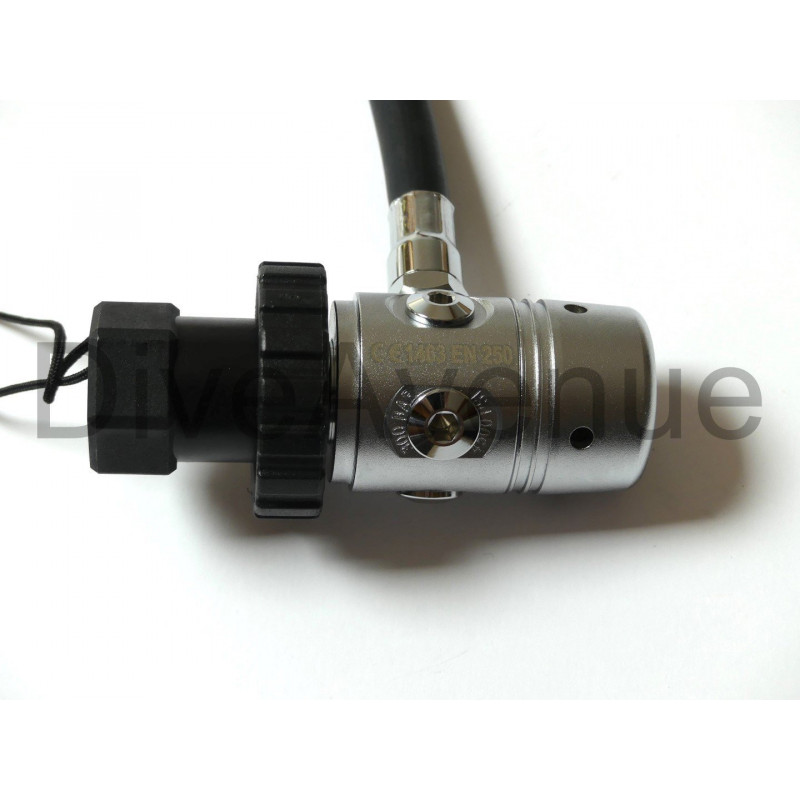

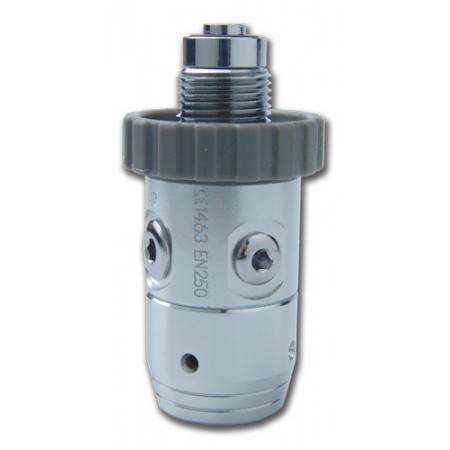

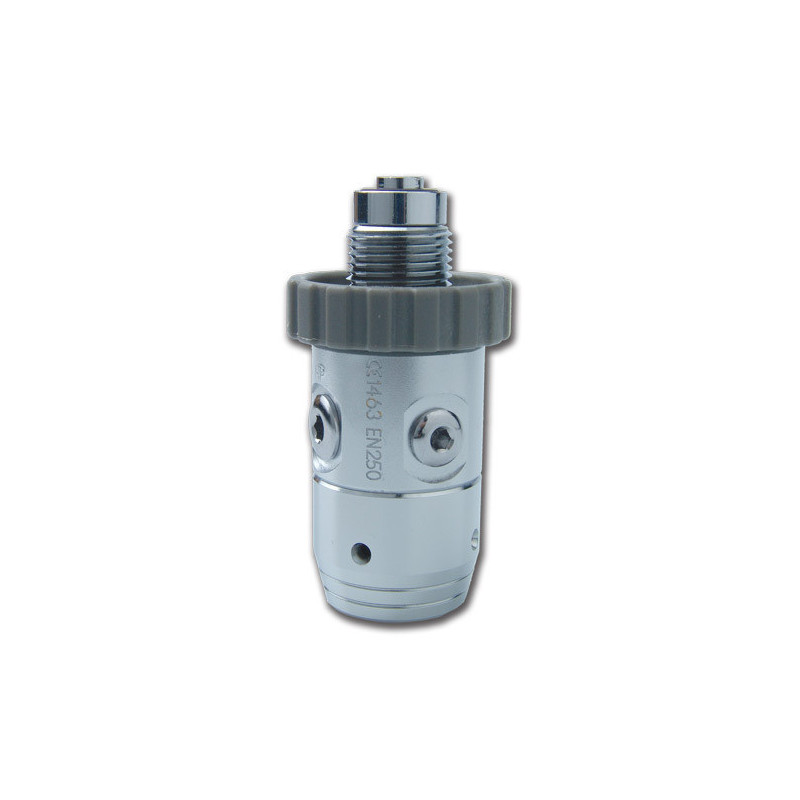

1st floor R1 Pro TECLINE
- Outputs: 3 MP and 2 HP,
- Maximum working pressure: 300 bar,
- Maximum flow rate at the pressure of 20 Mpa: 3823 L / min,
- Intermediate pressure: 8.5 bar,
- Weight: 515 g

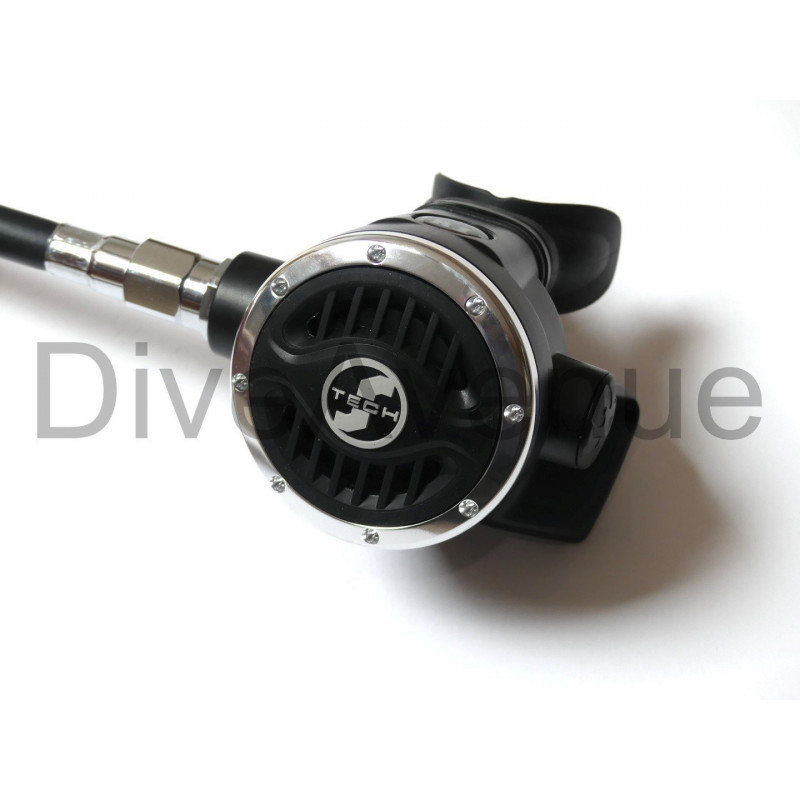

2nd floor R1 Pro TECLINE
- Non-compensated expansion valve, no venturi adjustment or sensitivity
- Maximum flow rate at a pressure of 20 MPa: 850 L / min,
- Weight: 180 g,
- Hose miflex 75 cm
- Meets the requirements of EN 250.
- 1x pressure regulator TECLINE R1 Pro
- The TECLINE R1 Pro is guaranteed for 10 years for the first owner if serviced once a year.
Find the complete Tecline catalog on http://teclinefrance.fr/nosproduits.html
